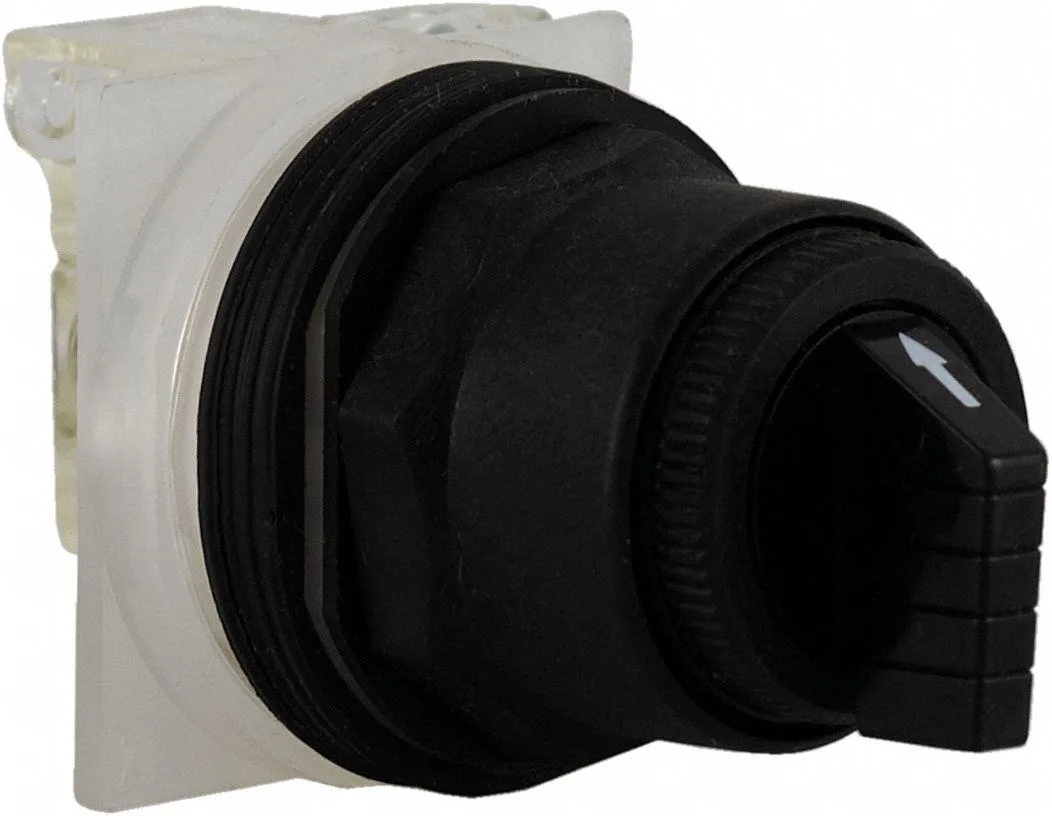

Schneider Electric 9001SKS43BH1 Selector Switch 30 mm 3 Position
A 30 mm three-position selector switch with maintained action, SPDT contacts rated 10 A at 600 V AC, and IP66 protection
- 30 mm mounting fits standard panels
- Three maintained positions for clear control
- SPDT contact rated 10 A at 600 V AC
- NEMA 4, 4X, 12, 13 and IP66 protection
- Polycarbonate operator head resists impact
Industrial Selector Switch
The Schneider Electric 9001SKS43BH1 is a 30 mm non-illuminated selector switch designed for industrial control panels and machinery. It provides three maintained positions with SPDT contact operation for reliable circuit selection. The polycarbonate operator head and plastic construction suit demanding environments. Panel builders and maintenance engineers use it for manual mode changes on automated equipment.
Environmental Protection
The switch carries NEMA 12, 13, 3, 3R, 4, 4X and IP66 ratings for dust, water and oil resistance. Contacts are rated 10 A at 600 V AC with NEMA A600/Q600 designation. Chrome bezel and black lever resist corrosion and wear. No thermal, noise or power-draw data apply to this passive electromechanical device.
Sustained Operation
Cam C delivers maintained action at all three positions: Position A closes the normally open contact, Position B opens both circuits, Position C closes the normally closed contact. The mechanism holds each state indefinitely without spring return. This suits processes that require a mode to stay selected through long production runs or shift changes.
Highlights
- 30 mm mounting fits standard panels
- Three maintained positions for clear control
- SPDT contact rated 10 A at 600 V AC
- NEMA 4, 4X, 12, 13 and IP66 protection
- Polycarbonate operator head resists impact
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
How do I install this 30 mm selector switch and which step is commonly missed?
Mount the operator head in a 30 mm panel cut-out, secure the locking nut to the specified torque, then wire the SPDT contacts per the cam C sequence — the step most often missed is verifying the maintained action at all three positions before final tightening.
What maintenance or replacement will this selector switch need over time?
The polycarbonate operator head and plastic bezel resist corrosion under NEMA 12, 13, 3, 3R, 4, 4X and IP66 ratings, so only periodic inspection of contact wear at the 10 A, 600 V AC rating is required; replace the complete unit if contact resistance rises.
What limit appears first during sustained operation of this selector switch?
The A600/Q600 contact rating of 10 A at 600 V AC is the first constraint; continuous loading at or near that level will accelerate contact erosion before the IP66 seal or polycarbonate housing degrades.
