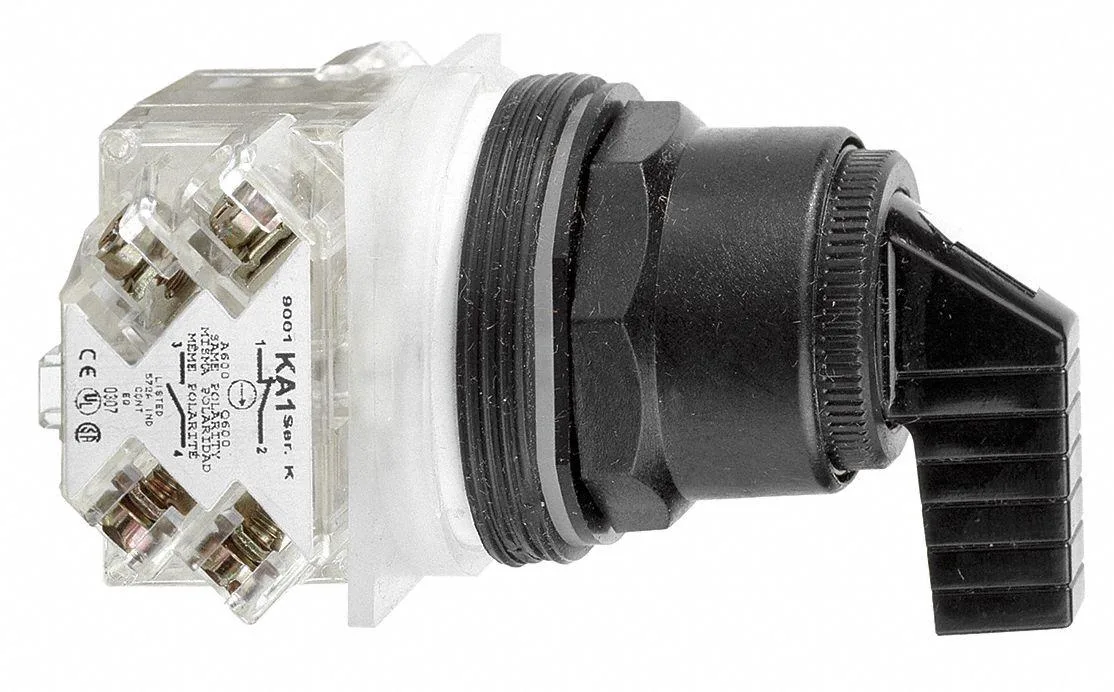

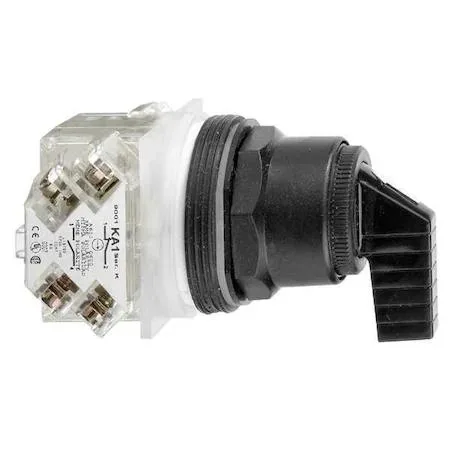

Schneider Electric 9001SKS11FBH2 selector switch 30 mm
A 30 mm non-illuminated selector switch with DPDT contacts rated 10 A at 600 V AC, maintained action, IP66 and NEMA 4X protection
- 30 mm mounting fits standard panels
- IP66 rating protects against dust and water jets
- DPDT 10 A 600 V contacts handle heavy loads
- NEMA 4X and 12 13 ratings suit harsh environments
- Maintained two-position action holds each setting securely
30 mm selector switch for industrial panels
This Schneider Electric 9001SKS11FBH2 is a 30 mm non-illuminated selector switch built for industrial control panels. It suits operators who need a maintained two-position cam E device with a DPDT contact block rated at 10 A and 600 V AC.
NEMA and IP environmental limits
The operator carries NEMA type 12, 13, 3, 3R, 4 and 4X ratings plus an IP66 enclosure rating, so it resists dust, water jets and corrosion in wet or dirty environments. The plastic head and chrome bezel meet these seals, but the switch is not rated for submersion or for hazardous-location atmospheres beyond the listed types.
Front-panel mounting with cam E wiring
Installation uses a standard 30 mm panel cut-out and the extended lever operator snaps into the head without tools. Wiring follows the cam E truth table: position A gives OXOX contact states and position B gives XOXO, so mis-wiring the maintained action is the most common error during commissioning.
Highlights
- 30 mm mounting fits standard panels
- IP66 rating protects against dust and water jets
- DPDT 10 A 600 V contacts handle heavy loads
- NEMA 4X and 12 13 ratings suit harsh environments
- Maintained two-position action holds each setting securely
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
Should I choose the 30 mm extended lever or a different operator size?
The 30 mm extended lever suits panels cut to that diameter and gives a longer grip; pick it when your cutout and ergonomics match those dimensions.
What does the 10 A, 600 V AC contact rating mean in daily use?
It means the DPDT contacts can reliably switch loads up to 10 amps at 600 volts AC, covering typical motor-starter and control-circuit duties.
How do the NEMA 12, 13, 3, 3R, 4, 4X and IP66 ratings limit where I can mount it?
Those ratings certify the switch for indoor dust and dripping water (12, 13) and outdoor hose-directed water, corrosion and icing (3, 3R, 4, 4X), with IP66 confirming powerful jet protection.
