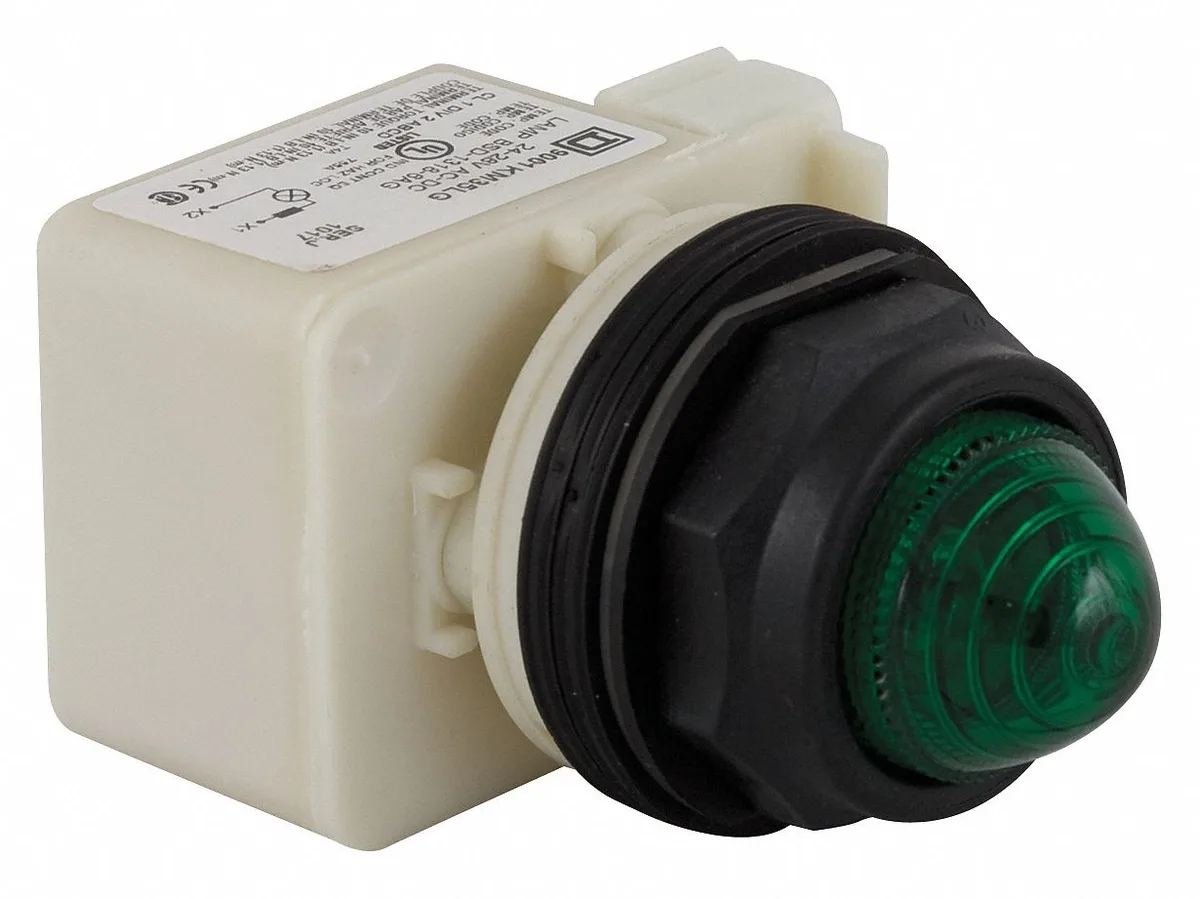

Schneider Electric green LED pilot light round 30mm domed lens

Schneider Electric

Schneider Electric 9001SKP38LGG9 green LED pilot light

SKU CH-QYZK-75EK9

Green LED pilot light with screw-clamp terminals, 30 mm domed polycarbonate lens, NEMA 1/2/3/3R/4/4X/6/12/13 and IP66 ratings for 120 V AC panels

  • TypeLight Switch
  • Size/Dimensions30mm
  • Color/FinishGreen
  • Color MappingGreen
  • Green LED pilot light for clear status indication
  • 120 V AC full-voltage operation simplifies wiring
  • IP66 and NEMA 4X ratings protect against dust and water jets
  • 30 mm round domed lens fits standard panel cut-outs
  • Screw-clamp terminals with included LED lamp enable quick installation

Green LED pilot light

This Schneider Electric 9001SKP38LGG9 pilot light uses a green LED lamp behind a domed polycarbonate lens. The 30 mm round unit mounts with screw-clamp terminals and carries NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, 13 and IP66 ratings. It operates at 120 V AC and includes the light module and LED lamp in a single plastic body.

Replaces incandescent indicator lamps

The full-voltage LED module removes the need for separate lamp replacements and reduces heat compared with traditional incandescent pilot lights. The jump is worth it when a panel requires a visible status signal that survives wash-down, dust or outdoor exposure without relamping.

Panel-mount status indicator

The 30 mm cut-out fits standard push-button stations and control panels rated for NEMA 4X or IP66 environments. Screw-clamp terminals accept solid or stranded wire without special tooling. The green lens provides clear on/off or run indication while the sealed construction frees the enclosure from separate gasketing for the indicator.

Highlights

  • Green LED pilot light for clear status indication
  • 120 V AC full-voltage operation simplifies wiring
  • IP66 and NEMA 4X ratings protect against dust and water jets
  • 30 mm round domed lens fits standard panel cut-outs
  • Screw-clamp terminals with included LED lamp enable quick installation

Specifications

TypeLight Switch
BrandSCHNEIDER ELECTRIC
Size/Dimensions30mm
Color/FinishGreen
Color MappingGreen

Questions about this item

What panel cut-out size does the 30 mm Schneider Electric 9001SKP38LGG9 pilot light require?

The unit is built for a standard 30 mm mounting hole, so drill or punch a 30 mm diameter opening in the panel.

How is the 120 V AC LED module wired, and what terminal mistake should I avoid?

Connect the supply wires to the screw-clamp terminals and tighten each screw firmly; the common error is leaving a clamp loose, which causes flicker or heat.

When the green LED eventually dims, what part do I replace and how?

The lamp module is not separately replaceable; the specification lists replacement lamps as N/A, so the entire pilot light unit must be swapped out.
