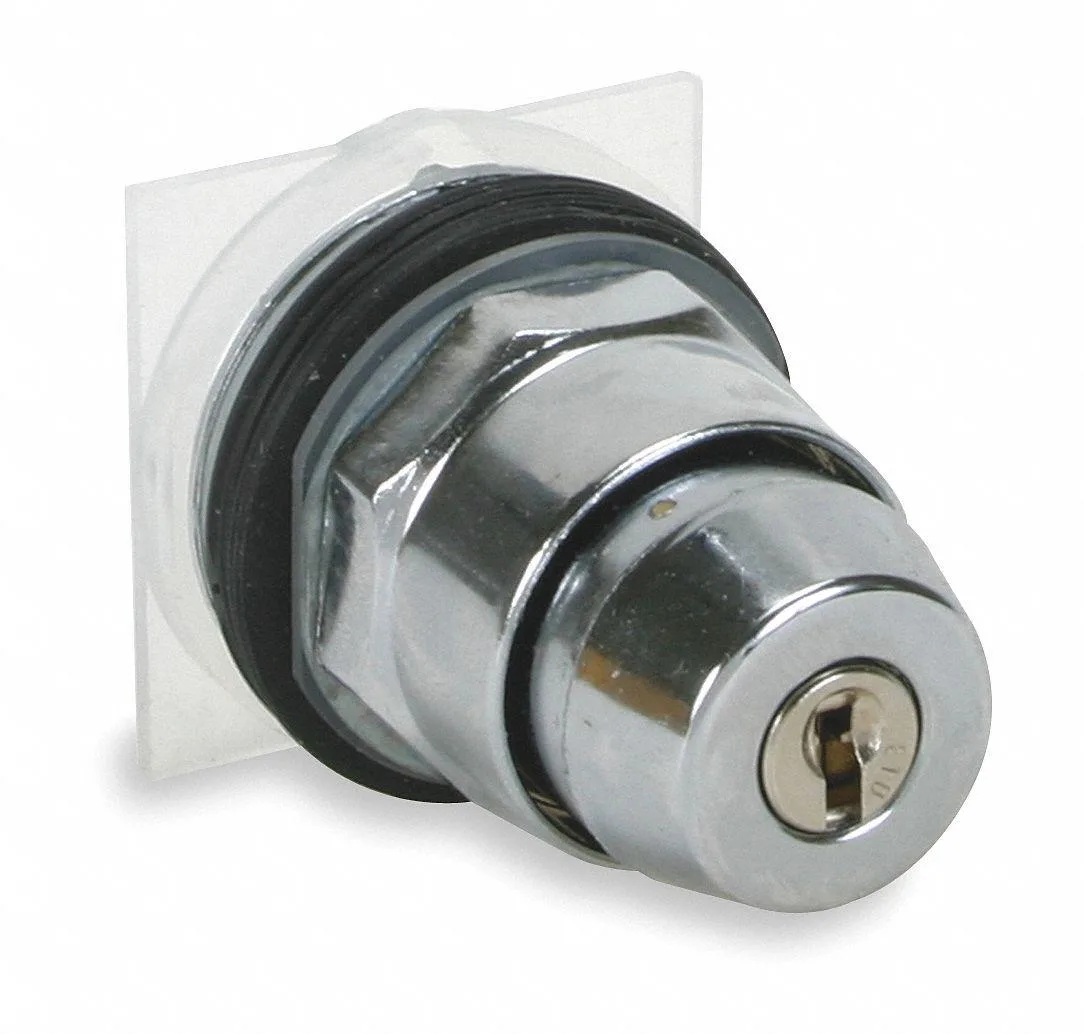

Schneider Electric 9001KS88K14 Keyed Selector Switch 30mm 4 Position
A 30 mm keyed selector switch with four maintained positions and chrome metal construction rated IP65 and NEMA 12, 13, 3, 3R, 4
- Keyed security with four maintained positions
- 30 mm chrome metal operator fits standard panels
- IP65 and NEMA 4/12/13 rated for harsh environments
- UL Listed and CSA certified for North American compliance
- Key removable in any position for flexible access control
30 mm 4-Position Keyed Selector Switch
This Schneider Electric 9001KS88K14 is a 30 mm keyed selector switch with four maintained positions. It suits control panels that require deliberate, key-locked mode changes in industrial machinery or motor-start circuits.
Metal construction with NEMA and IP65 ratings
The operator head and bezel are metal with a chrome finish, rated NEMA 3, 3R, 4, 12, 13 and IP65. The keyed operator accepts key number E10 and allows removal in any position, so authorised personnel can lock or release the switch at each of the four settings.
Cam H action and fixed four-position layout
Cam H defines the contact sequence across the four maintained positions, which cannot be reconfigured in the field. The switch carries CE, CSA LR25490 Class 3211 03 and UL E42259 CCN NKCR approvals, but it is not illuminated and offers no momentary or spring-return positions for applications that need automatic reset.
Highlights
- Keyed security with four maintained positions
- 30 mm chrome metal operator fits standard panels
- IP65 and NEMA 4/12/13 rated for harsh environments
- UL Listed and CSA certified for North American compliance
- Key removable in any position for flexible access control
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
What NEMA ratings does the 30 mm keyed selector switch meet?
The switch meets NEMA 12, 13, 3, 3R and 4 ratings for enclosure protection.
What panel cut-out diameter is required for the 30 mm operator head?
A 30 mm panel cut-out is required to mount the metal operator head.
How is the keyed selector switch installed in a panel?
Insert the operator through the 30 mm cut-out, secure the metal bezel with the locking nut, then wire the contact block to the H cam terminals.
