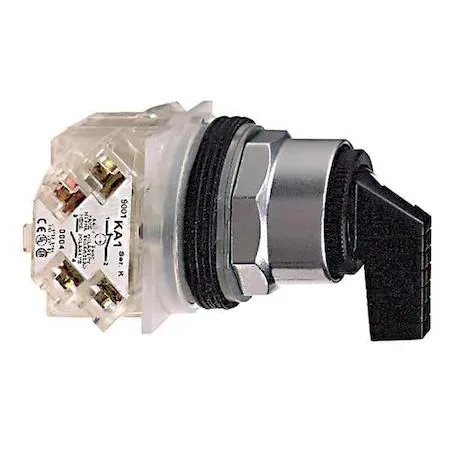

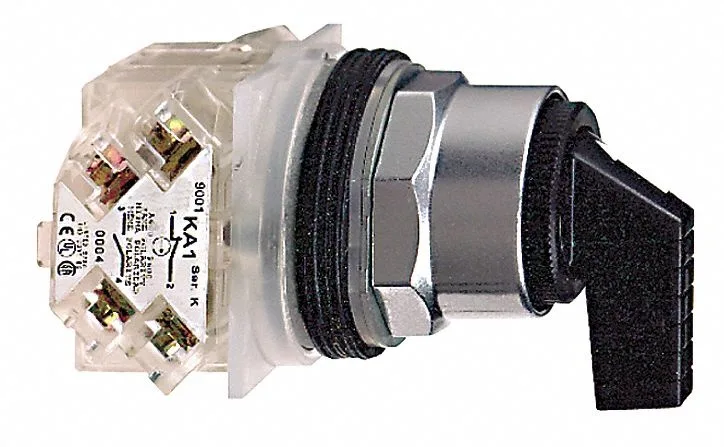

Schneider Electric 9001KS53FBH2 Selector Switch 3 Position 30mm Black
A 30 mm three-position selector switch with DPDT contacts rated 10 A at 600 V AC, NEMA 12/13/3/3R/4 and IP65 protection
- Three-position momentary/maintained/momentary action for flexible control sequences
- 30 mm extended lever operator in black polycarbonate with chrome metal bezel
- DPDT contacts rated 10 A at 600 V AC with A600/Q600 designation
- NEMA 12, 13, 3, 3R, 4 and IP65 ratings for harsh environments
- Cam C switching logic: OXOX at A, OOOO at B, XOXO at C
30 mm Selector Switch for Industrial Panels
This Schneider Electric 9001KS53FBH2 selector switch mounts in a standard 30 mm cut-out and provides three positions with momentary, maintained and momentary action. Its extended lever operator and DPDT contact form suit control panels that need manual mode selection or motor direction control.
Suited for NEMA 12, 13, 3, 3R.
The metal bezel and polycarbonate head withstand dust, water jets and oil exposure common in machinery shops and process lines. Buyers who need illuminated indication, keyed operation or a different contact arrangement should look at other operator types.
10 A at 600 V AC with A600/Q600 Rating
The switch handles typical starter coils, pilot lights and control relays within its rated current and voltage. It runs out when loads exceed 10 A or when the application demands higher breaking capacity or a different NEMA contact designation.
Highlights
- Three-position momentary/maintained/momentary action for flexible control sequences
- 30 mm extended lever operator in black polycarbonate with chrome metal bezel
- DPDT contacts rated 10 A at 600 V AC with A600/Q600 designation
- NEMA 12, 13, 3, 3R, 4 and IP65 ratings for harsh environments
- Cam C switching logic: OXOX at A, OOOO at B, XOXO at C
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
Does the 30 mm cutout match the mounting holes on my existing control panel?
Yes, the operator is built for a standard 30 mm panel cutout so it fits the same holes used by other 30 mm devices.
Can the DPDT contacts rated at 10 A and 600 V AC share a circuit with older NEMA A600 relays?
The switch carries a NEMA A600/Q600 designation, meaning its contact ratings align with those legacy relay coils for direct wiring.
How can I verify the momentary-maintained-momentary action after wiring?
Operate the extended lever to each of the three positions and confirm the contact sequence follows the OXOX, OOOO, XOXO pattern shown for positions A, B and C.
