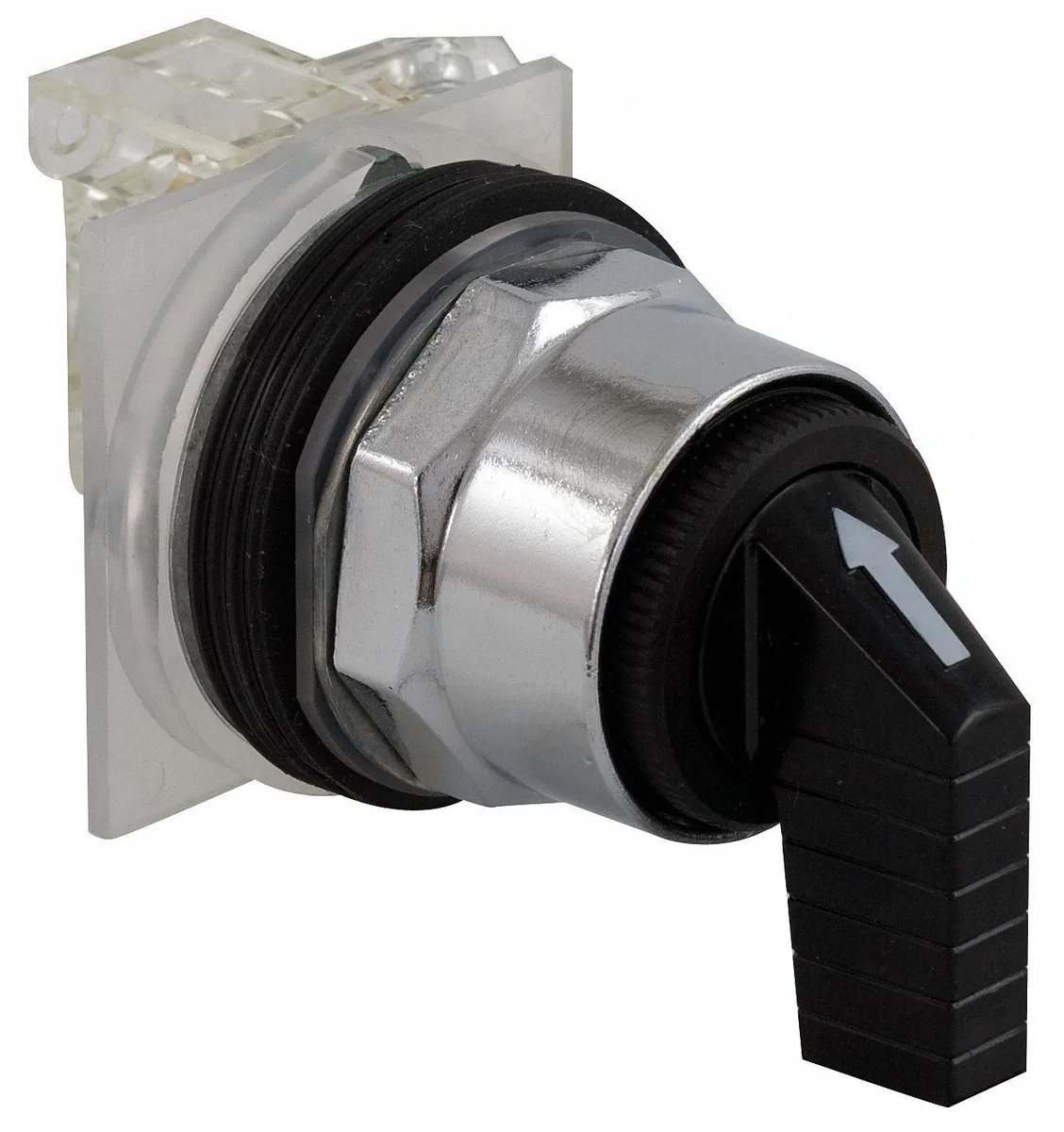

Schneider Electric 9001KS53FBH1 selector switch 30 mm 3 position black
A 30 mm three-position selector switch with momentary, maintained and momentary action, 10 A at 600 V AC contacts, IP65 and NEMA 12, 13, 3, 3R, 4 ratings, black extended lever and chrome metal bezel
- 30 mm mounting fits standard panels
- Three-position lever gives momentary, maintained, momentary action
- 10 A at 600 V AC handles heavy control circuits
- NEMA 12, 13, 3, 3R, 4 and IP65 sealing resists dust and water
- Chrome metal bezel with polycarbonate head withstands industrial environments
Product identity
Schneider Electric 9001KS53FBH1 is a 30 mm non-illuminated selector switch with three positions and a black extended lever operator. It provides a 1NO/1NC contact form rated at 10A and 600V AC for industrial control circuits.
Installation checks
Verify that the mounting cut-out matches the 30 mm diameter and that the panel thickness suits the supplied hardware. Confirm the control circuit voltage does not exceed 600V AC and that the NEMA A600/Q600 rating covers the intended load type. Ensure the IP65 and NEMA 12, 13, 3, 3R, 4 ratings satisfy the enclosure protection requirements.
Thermals, noise and power
The switch body uses metal basic material with a polycarbonate operator head and chrome metal bezel, dissipating heat through the panel without active cooling. Operation is silent mechanical lever action with no fan or electronic noise. Power draw is limited to the contact circuit load up to 10A at 600V AC.
Highlights
- 30 mm mounting fits standard panels
- Three-position lever gives momentary, maintained, momentary action
- 10 A at 600 V AC handles heavy control circuits
- NEMA 12, 13, 3, 3R, 4 and IP65 sealing resists dust and water
- Chrome metal bezel with polycarbonate head withstands industrial environments
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
What comes in the box with the 9001KS53FBH1 selector switch and what must be purchased separately?
The switch includes the operator head, extended lever and 1NO/1NC contact block. Mounting hardware, legend plates and any additional contact blocks are sold separately.
How do I choose between the momentary and maintained positions on this 3-position switch?
Position A is momentary, Position B is maintained and Position C is momentary; select the lever position that matches the control sequence your machine requires.
What does the 10A @ 600V AC rating mean when the switch is installed in a control panel?
It confirms the contacts can carry up to 10 amps at 600 volts AC in the panel, matching the A600/Q600 NEMA designation for pilot-duty circuits.
