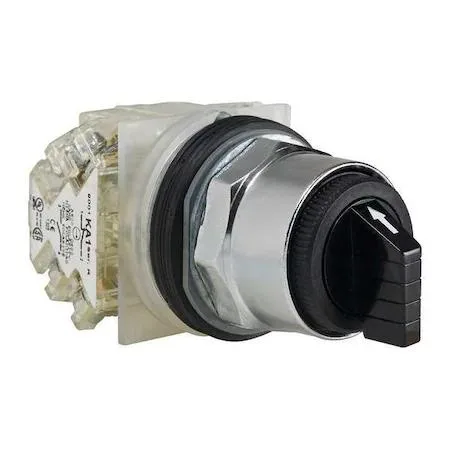

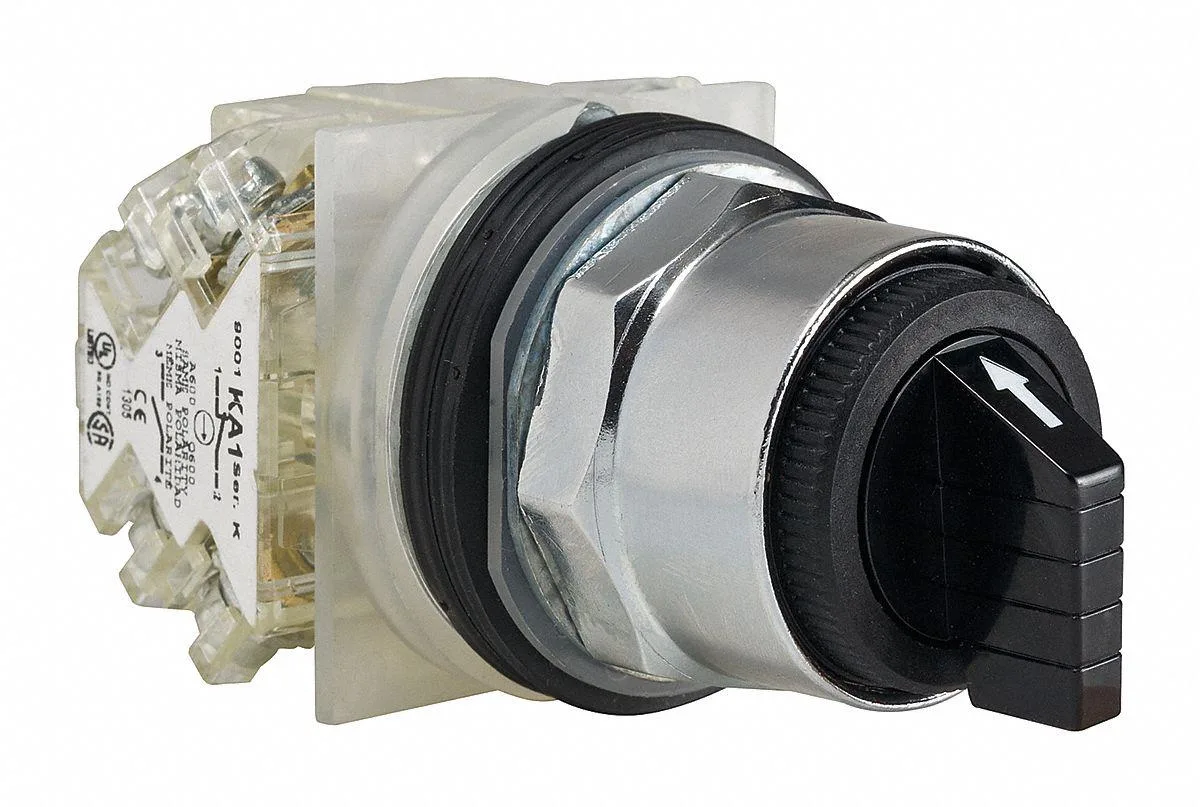

Schneider Electric 9001KS53BH2 30 mm 3‑position selector switch
A 30 mm non-illuminated selector switch with three positions, DPDT contacts rated 10A at 600V AC, and IP65 protection for industrial control panels
- 3-position selector covers multiple machine functions
- 30 mm cut-out fits standard industrial panels
- IP65 rating resists dust and water jets
- DPDT contacts rated 10 A at 600 V AC
- NEMA 12, 13, 3, 3R, 4 enclosure protection
Schneider 30 mm 3‑position selector
The Schneider Electric 9001KS53BH2 is a 30 mm non‑illuminated selector switch with three operating positions. It provides DPDT contact action rated at 10A and 600V AC, making it suitable for industrial control panels and machinery interfaces.
Panel cut‑out and wiring notes
The 30 mm mounting diameter fits standard panel cut‑outs for this class of operator. Screw terminals accept typical control wiring; verify wire gauge compatibility before terminating to avoid loose connections that cause intermittent operation.
Voltage, current and environmental fit
Confirm the control circuit does not exceed 10A at 600V AC and that the enclosure meets NEMA 12, 13, 3, 3R, 4 or IP65 requirements. The metal bezel and polycarbonate head suit indoor and protected outdoor installations.
Highlights
- 3-position selector covers multiple machine functions
- 30 mm cut-out fits standard industrial panels
- IP65 rating resists dust and water jets
- DPDT contacts rated 10 A at 600 V AC
- NEMA 12, 13, 3, 3R, 4 enclosure protection
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
How can I verify the 30 mm selector switch is operating correctly after installation?
Check that Position A gives OXOX contact state, Position B gives OOOO, and Position C gives XOXO while the lever moves through momentary, maintained, and momentary actions.
What components are included with the 9001KS53BH2 and what must be sourced separately?
The switch ships with its polycarbonate lever operator head, metal bezel, and DPDT contact block rated 10 A at 600 V AC; mounting hardware and wiring are not included.
Which version of the 30 mm selector switch should I choose for a NEMA 12, 13, 3, 3R, 4 and IP65 environment?
The 9001KS53BH2 with black lever, chrome metal bezel, Cam C, and A600/Q600 contact rating meets all those enclosure ratings.
