Schneider Electric

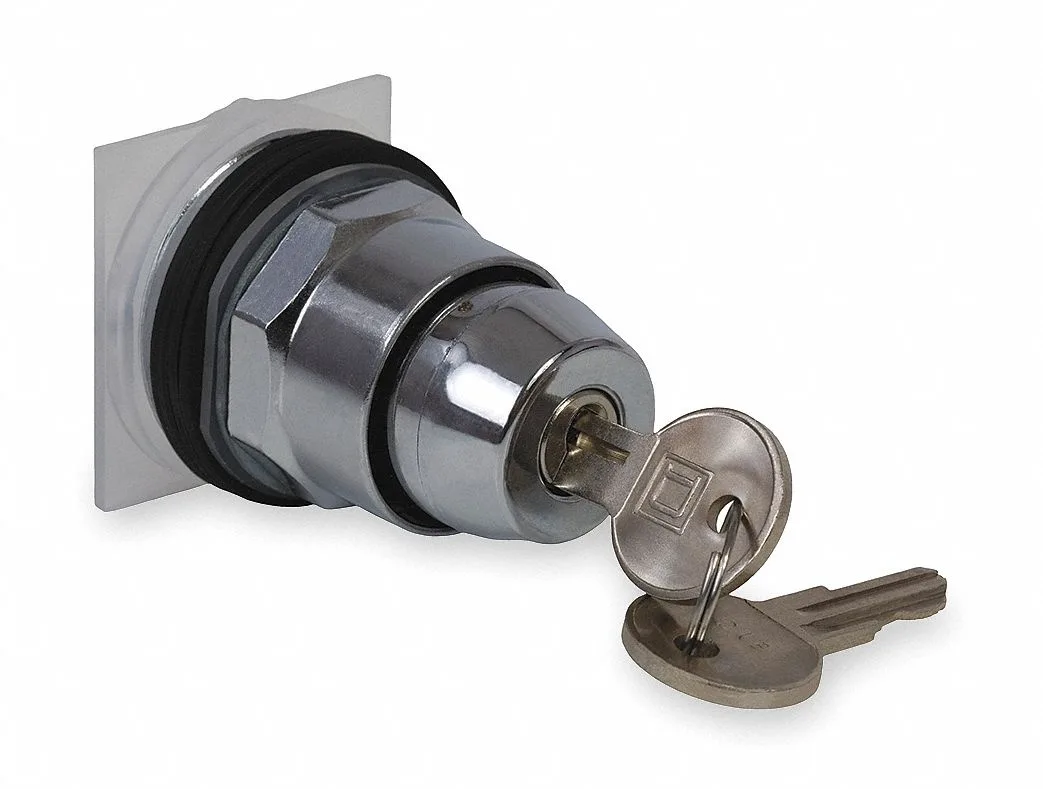

Schneider Electric 9001KS52K5 30 mm 3-position keyed selector switch
A 30 mm keyed selector switch with three positions, momentary-maintained-momentary action, NEMA 12/13/3/3R/4 and IP65 ratings, and chrome metal bezel
- Keyed security with E10 coded key
- Three-position momentary/maintained/momentary action
- Chrome metal bezel resists industrial wear
- NEMA 12, 13, 3, 3R, 4 and IP65 sealing
- CE, CSA LR24590 Class 3211 03 and UL E42259 listed
30 mm Keyed Selector Switch
The Schneider Electric 9001KS52K5 is a 30 mm keyed selector switch designed for industrial control panels. It provides three-position operation with a momentary, maintained, momentary action sequence. The chrome keyed operator is rated NEMA 12, 13, 3, 3R, 4 and IP65 for demanding environments.
Metal Construction and Cam B Mounting
The operator head and bezel are both metal with a chrome finish, resisting impact and corrosion in machine-shop conditions. A Cam B mechanism drives the contact blocks, while the key removes only in the centre position for security. Front-of-panel mounting suits standard 30 mm cut-outs.
Replaces Worn or Non-Keyed Operators
This unit replaces damaged selector switches or upgrades non-keyed operators where authorised access is required. The jump is worth it when a panel needs NEMA 4 or IP65 sealing plus keyed safety interlock. It is not for applications needing illuminated indication or maintained action in all three positions.
Highlights
- Keyed security with E10 coded key
- Three-position momentary/maintained/momentary action
- Chrome metal bezel resists industrial wear
- NEMA 12, 13, 3, 3R, 4 and IP65 sealing
- CE, CSA LR24590 Class 3211 03 and UL E42259 listed
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
What NEMA and IP ratings does the 9001KS52K5 selector switch carry?
The switch is rated NEMA 12, 13, 3, 3R, 4 and IP65 for dust-tight and water-jet protection.
What panel cut-out size and bezel material does the 30 mm unit require?
It fits a standard 30 mm cut-out and uses a chrome-plated metal bezel with a metal operator head.
How is the cam configured for the three-position momentary-maintained-momentary action?
The switch uses a Cam B mechanism; the key removes only in the centre position and returns from both side positions.
