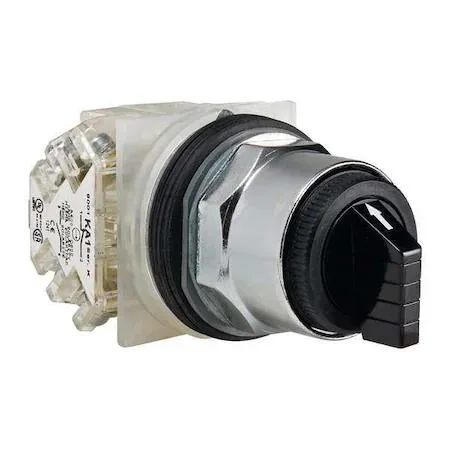

Schneider Electric 9001KS49BH2 selector switch 30 mm 3 position black
A 30 mm non-illuminated selector switch with three maintained positions, DPDT contacts rated 10 A at 600 V AC, NEMA 12, 13, 3, 3R, 4 and IP66 sealing, black lever on a chrome metal bezel
- 3-position maintained selector gives clear mode control
- 30 mm cut-out fits standard panel openings
- DPDT contacts rated 10A at 600V AC handle demanding circuits
- IP66 and NEMA 4/12/13 enclosure resists dust and water ingress
- Polycarbonate lever on metal bezel withstands industrial use
Schneider Electric 9001KS49BH2 Selector Switch
This Schneider Electric 9001KS49BH2 is a 30 mm selector switch with three maintained positions and a DPDT contact form. It carries a contact rating of 10A at 600V AC and meets NEMA ratings 12, 13, 3, 3R, 4 and IP66 for robust environmental protection. The operator head is black polycarbonate with a chrome metal bezel and a lever operator style. Cam J defines the switching sequence across positions A, B and C.
Industrial control panels and machinery operators
The switch suits panels requiring a 30 mm mounting cut-out and a three-position maintained action for manual control circuits. Its NEMA and IP ratings support indoor and outdoor industrial environments where dust, water or oil exposure occurs. Buyers needing illuminated operators, key-operated removal or a different contact configuration should look at other models. Panel builders requiring a specific cam sequence not matching Cam J must verify compatibility before ordering.
Simple 30 mm panel mounting
Installation uses a standard 30 mm round cut-out secured by the metal bezel and locking nut supplied with the operator head. The polycarbonate lever and metal construction withstand repeated industrial use without special tools. Common issues include miswiring the DPDT contacts if the OXOX, XOXO and OXXO position tables are not followed, and insufficient torque on the mounting nut leading to loose operation or compromised IP66 sealing.
Highlights
- 3-position maintained selector gives clear mode control
- 30 mm cut-out fits standard panel openings
- DPDT contacts rated 10A at 600V AC handle demanding circuits
- IP66 and NEMA 4/12/13 enclosure resists dust and water ingress
- Polycarbonate lever on metal bezel withstands industrial use
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
What panel cut-out size does the 30 mm selector switch require?
The operator is designed for a standard 30 mm mounting hole in the panel.
Will the maintained lever positions stay engaged when used with existing relay logic?
Each of the three positions is maintained, so the lever remains in place until manually moved, matching standard relay control schemes.
How can I verify the DPDT contacts are switching correctly after wiring?
Check for the OXOX, XOXO and OXXO contact sequences at positions A, B and C respectively using a continuity tester.
