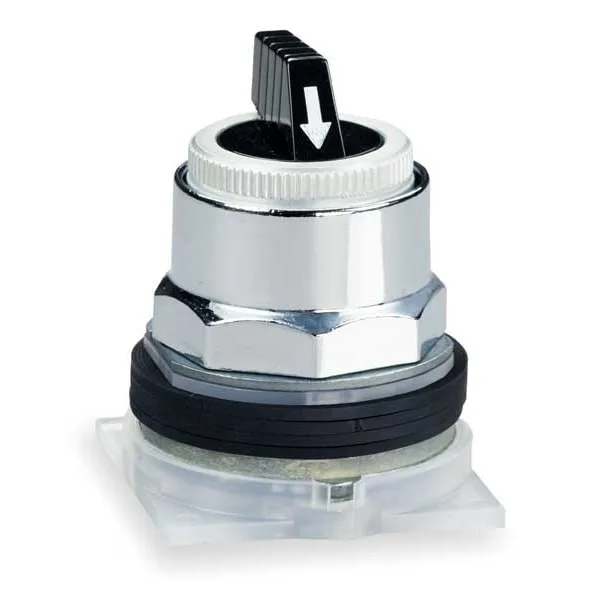

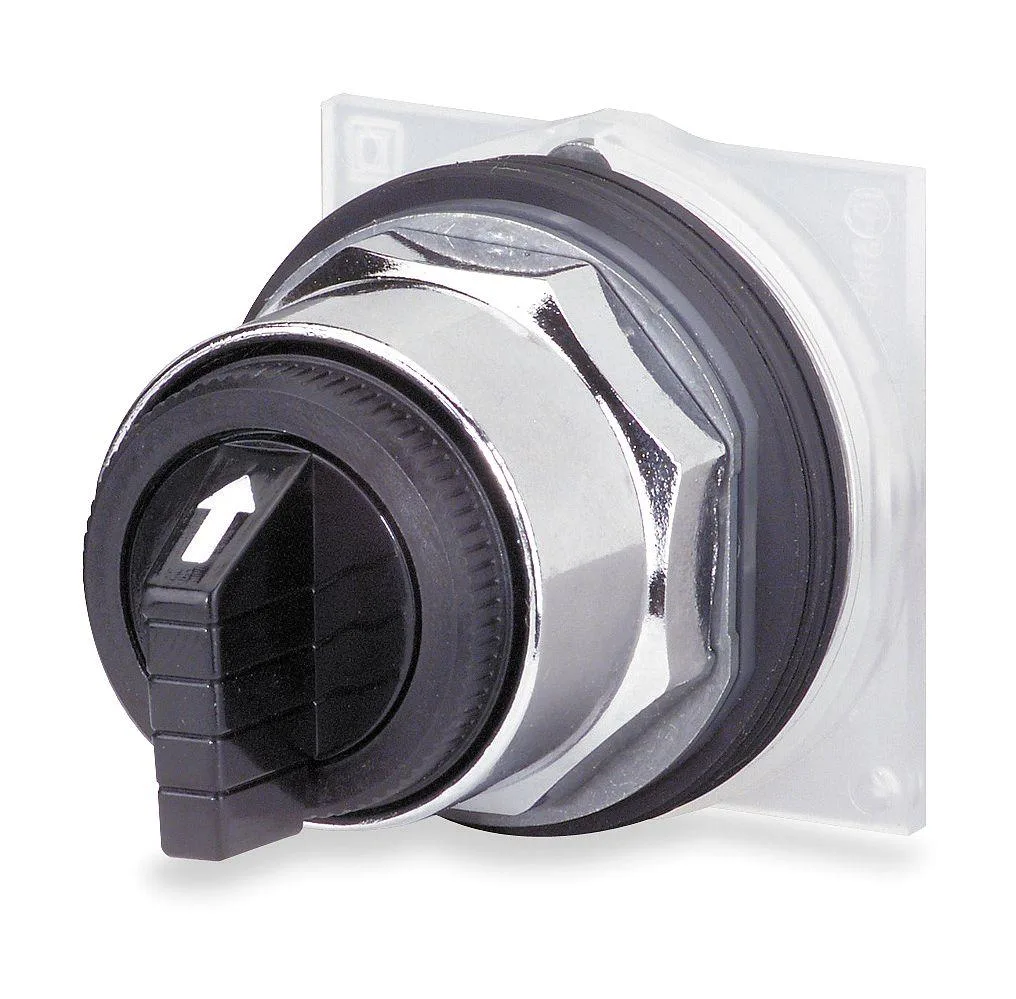

Schneider Electric 9001KS49B 30 mm 3-position selector switch
A 30 mm three-position maintained selector switch with a black plastic lever, chrome metal bezel, NEMA 12, 13, 3, 3R, 4 and IP65 ratings, and cam J
- 3-position maintained action for stable machine control
- 30 mm mounting fits standard industrial panels
- IP65 and NEMA 4/13 rated for wash-down environments
- Chrome metal bezel resists impact and corrosion
- Certified to UL 42259 and CSA 24590 standards
Product identity
The Schneider Electric 9001KS49B is a 30 mm three-position selector switch with maintained action in every position. It uses a short black lever operator on a plastic head with a chrome metal bezel and carries NEMA 12, 13, 3, 3R, 4 and IP65 ratings for industrial control panels.
Pre-installation checks
Verify that the panel cutout matches the 30 mm mounting diameter and that the enclosure can meet the declared NEMA and IP ratings. Confirm the Cam J contact arrangement suits the required switching sequence and that the maintained operator action matches the control logic.
Build integration
The switch fits standard 30 mm operator cutouts and its chrome bezel provides a finished appearance on metal or plastic enclosures. The IP65 and NEMA ratings allow use in wet or dusty environments without additional sealing, freeing panel space that separate enclosures would otherwise require.
Highlights
- 3-position maintained action for stable machine control
- 30 mm mounting fits standard industrial panels
- IP65 and NEMA 4/13 rated for wash-down environments
- Chrome metal bezel resists impact and corrosion
- Certified to UL 42259 and CSA 24590 standards
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
What comes in the box with the 9001KS49B selector switch and is anything else required?
The switch includes the operator head, bezel and cam J. A 30 mm panel cut-out and compatible contact blocks are needed to complete the installation.
How do I choose between the maintained positions on this 3-position switch?
All three positions are maintained, so the lever stays where you leave it; select the cam J sequence that matches your control logic.
What does the IP65 rating mean when the switch is mounted in a panel?
IP65 confirms the front seal is dust-tight and protected against water jets when correctly installed in a 30 mm cut-out.
