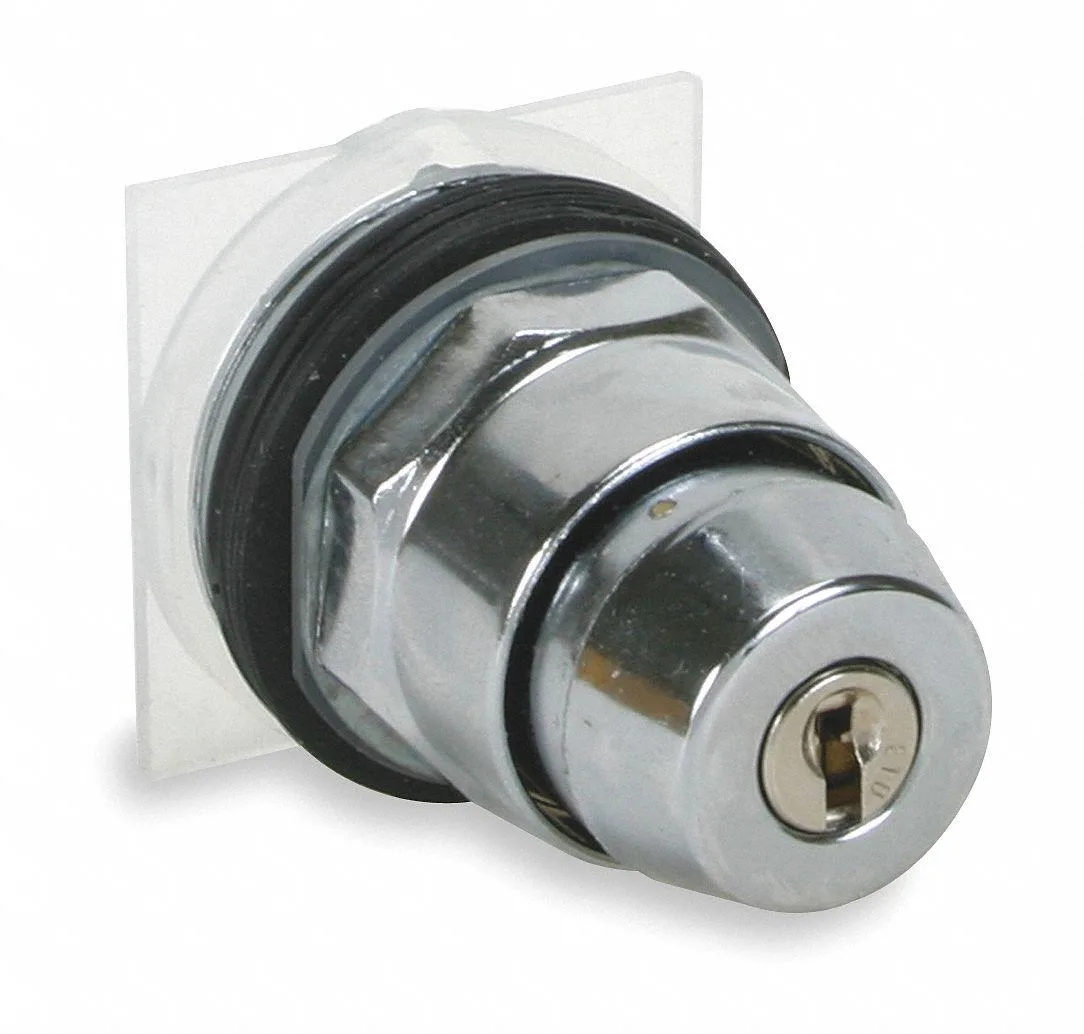

Schneider Electric 9001KS43K5 Keyed Selector Switch 30mm 3 Position
A 30 mm keyed selector switch with three maintained positions, chrome metal bezel, NEMA 12, 13, 3, 3R, 4 and IP66 ratings, and key removal at centre
- Keyed operator restricts access to authorised personnel
- 30 mm mounting fits standard control-panel cut-outs
- Three maintained positions give distinct circuit selections
- IP66 and NEMA 12, 13, 3, 3R, 4 ratings seal against dust and water
- Metal head and bezel withstand industrial mechanical stress
30 mm Keyed Selector Switch
The Schneider Electric 9001KS43K5 is a 30 mm keyed selector switch with three maintained positions. It is built for industrial control panels that require a deliberate, key-operated mode change. The chrome metal operator and bezel suit NEMA 12, 13, 3, 3R and 4 enclosures as well as IP66 environments.
Cam C and Key E10 Operation
Cam C defines the contact sequence across the three maintained positions, while the E10 key profile allows removal only in the centre position. This arrangement prevents accidental switching and limits authorised operation to personnel holding the matching key. The switch meets CSA C22.2 No. 14, UL 508 and IEC 60947 standards.
Three Maintained Positions for Mode Selection
The maintained action holds each selected mode until the key is turned again, making it suitable for hand-off-auto or similar three-state machine functions. It is not suited for momentary jog or two-position applications, and the single E10 keyway does not support master-key systems or alternative key codes.
Highlights
- Keyed operator restricts access to authorised personnel
- 30 mm mounting fits standard control-panel cut-outs
- Three maintained positions give distinct circuit selections
- IP66 and NEMA 12, 13, 3, 3R, 4 ratings seal against dust and water
- Metal head and bezel withstand industrial mechanical stress
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
How often will the E10 key need replacement under normal use?
The E10 key is a standard metal key with no specified wear interval; replacement is only needed if the key is lost or physically damaged.
Which NEMA or IP rating limits continuous operation in dusty or wet environments first?
The switch carries NEMA 12, 13, 3, 3R, 4 and IP66 ratings, so the IP66 dust-tight and water-jet protection is the governing limit for sustained exposure.
Does the chrome metal bezel become hot or generate noise during all-day maintained operation?
As a passive mechanical selector with no electrical load through the operator head, the chrome metal bezel produces no heat and no audible noise during continuous use.
