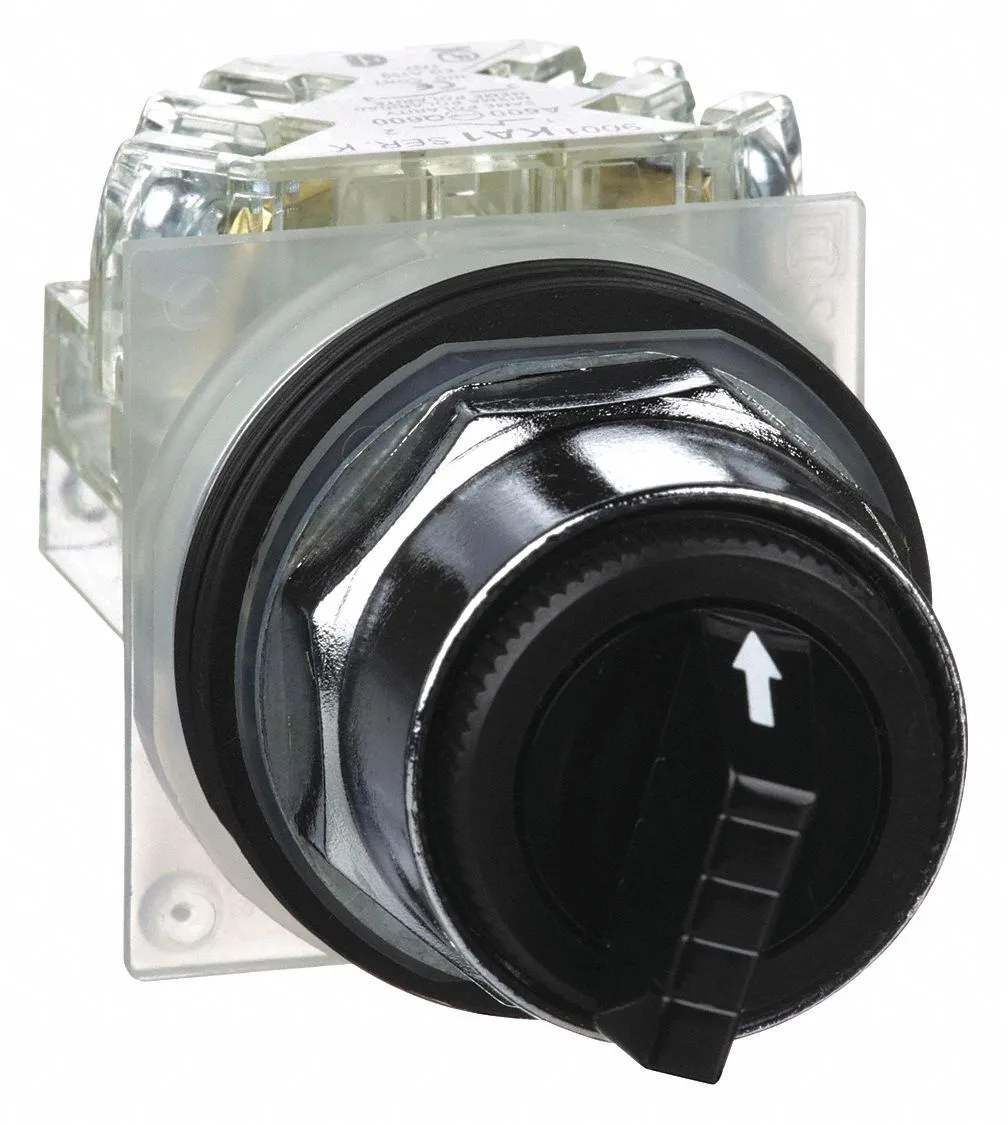

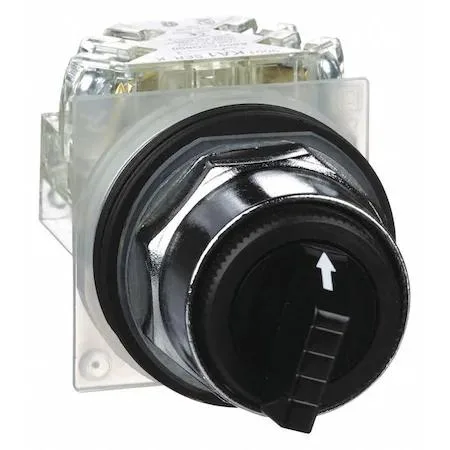

Schneider Electric 9001KS43BH13 selector switch, 30 mm, 3 position, black
A 30 mm three-position selector switch with maintained action, 10 A contact rating and IP66 protection
- 30 mm mounting fits standard industrial cut-outs
- Three maintained positions give clear mode selection
- 10 A at 600 V AC rating handles heavy control circuits
- IP66 and NEMA 4/12/13 sealing resists dust and water ingress
- Polycarbonate operator head with metal bezel withstands harsh environments
Schneider 9001KS43BH13 selector switch
This 30 mm selector switch provides three maintained positions for industrial control panels. It suits operators who need a rugged manual interface for motor starters or contactor circuits. The black polycarbonate lever and chrome metal bezel withstand harsh environments. Buyers needing illuminated or key-operated versions should look elsewhere.
Contact rating and environmental sealing
The switch carries a 10A rating at 600V AC with NEMA A600/Q600 designation. It meets NEMA 12, 13, 3, 3R, 4 and IP66 ratings for dust, water and oil resistance. Installations requiring higher current or different voltage classes cannot use this device. The fixed cam C sequence determines the contact logic across positions.
Cam C contact sequence
Cam C defines the contact state at each position: position A closes the normally open contact, position B opens both contacts, and position C closes the normally closed contact. This specific sequence suits applications where the centre position must isolate the circuit. Machines needing a different make-break pattern require an alternative cam code.
Highlights
- 30 mm mounting fits standard industrial cut-outs
- Three maintained positions give clear mode selection
- 10 A at 600 V AC rating handles heavy control circuits
- IP66 and NEMA 4/12/13 sealing resists dust and water ingress
- Polycarbonate operator head with metal bezel withstands harsh environments
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
Which contact form does the 9001KS43BH13 use?
It provides one normally closed and one normally open contact in a single operator head.
What does the 10 A at 600 V AC rating allow in a control circuit?
It supports pilot-duty loads such as contactor coils and solenoids on 600 V AC supplies.
How does the NEMA A600/Q600 designation limit the switch in practice?
It caps the device at 10 A continuous and 600 V AC for standard industrial control applications.
