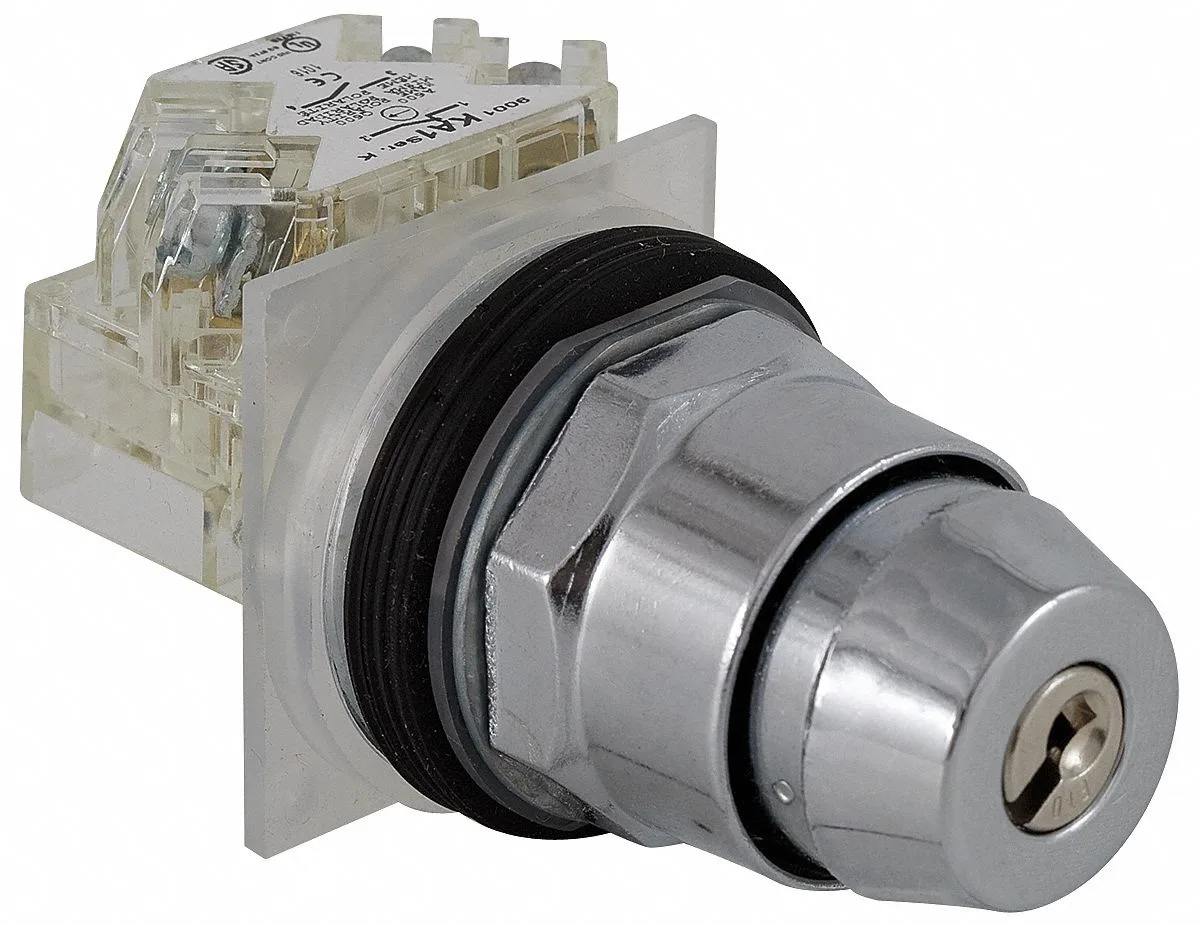

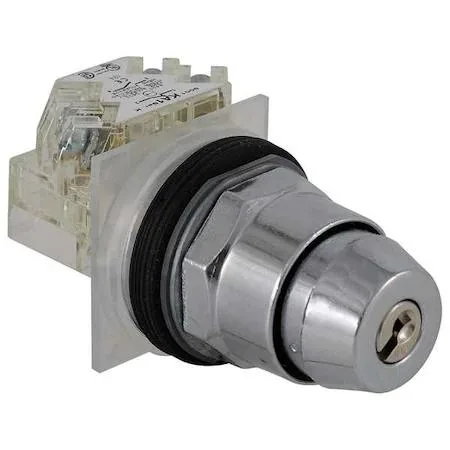

Schneider Electric 9001KS34K1H13 selector switch
A 30 mm keyed selector switch with two maintained or momentary positions, SPDT contacts rated 10A at 600V AC, and IP65 protection
- Key-operated security with 2-position maintained/momentary action
- SPDT contact rated 10A at 600V AC for reliable switching
- Chrome-plated brass operator head resists corrosion in harsh environments
- IP65 and NEMA 12/13/3/3R/4 ratings protect against dust and water ingress
- 30 mm mounting diameter fits standard industrial panel cut-outs
30 mm Keyed Selector Switch
The Schneider Electric 9001KS34K1H13 is a 30 mm keyed selector switch designed for industrial control panels. It provides two maintained and momentary positions with an SPDT contact form rated at 10A at 600V AC. The chrome-finished brass operator and metal bezel meet NEMA 12, 13, 3, 3R, 4 and IP65 ratings for harsh environments.
Panels Needing Keyed Two-Position Control
This switch suits panels that require keyed access to prevent unauthorised operation and a left key removal feature at position A. It is not for applications needing a third switch position, illuminated operator feedback, or a different contact configuration such as DPDT. Buyers who need a non-keyed knob or lever operator should look at alternative operator types.
Verify Cut-Out, Voltage and Cam Before Ordering
Confirm the enclosure provides a standard 30 mm mounting cut-out and that the control circuit voltage does not exceed 600V AC. Ensure the cam D switching sequence (XO at position A, OX at position B) matches the required logic. Check that the NEMA and IP ratings satisfy the specific environmental conditions of the installation.
Highlights
- Key-operated security with 2-position maintained/momentary action
- SPDT contact rated 10A at 600V AC for reliable switching
- Chrome-plated brass operator head resists corrosion in harsh environments
- IP65 and NEMA 12/13/3/3R/4 ratings protect against dust and water ingress
- 30 mm mounting diameter fits standard industrial panel cut-outs
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
What voltage rating must the circuit match for the 9001KS34K1H13 selector switch?
The switch carries a contact rating of 10 A at 600 V AC, so the circuit must not exceed 600 V AC.
Can the 9001KS34K1H13 be mounted in the same 30 mm panel cut-out used by older Schneider operators?
Yes, it fits a standard 30 mm mounting hole and meets NEMA 12, 13, 3, 3R, 4 and IP65 ratings for the same environments.
How do I verify the keyed operator moves correctly between the two positions after installation?
Turn the key to position A and confirm the contact block shows XO; turn to position B and confirm OX — the cam D action provides maintained/momentary feel.
