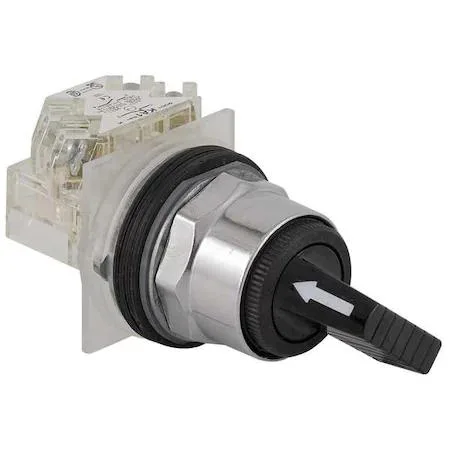

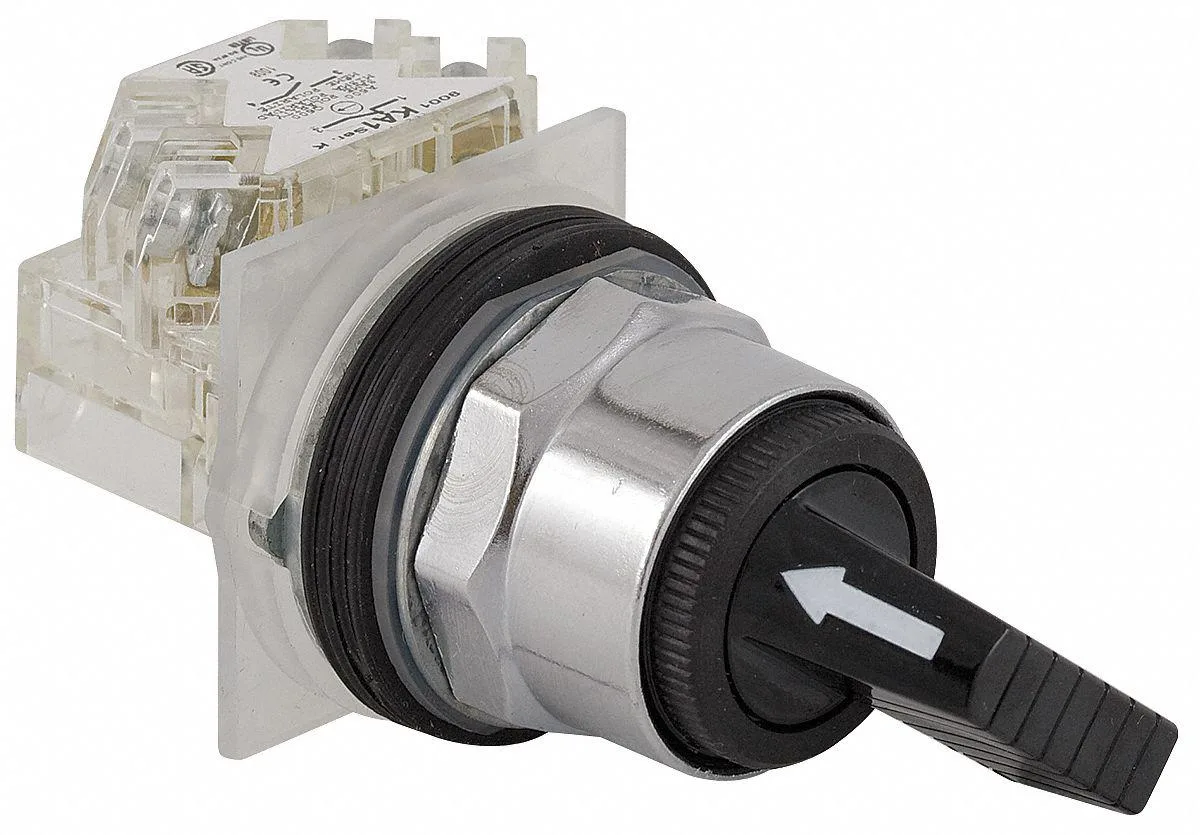

Schneider Electric 9001KS34FBH13 selector switch 30 mm 2 position black
A 30 mm selector switch with two maintained or momentary positions, SPDT contacts rated 10A at 600V AC, and IP66 sealing for industrial panels
- 30 mm panel cut-out simplifies installation
- Two maintained positions with cam D logic
- Extended black lever for clear manual operation
- IP66 and NEMA 12, 13, 3, 3R, 4 sealing resists harsh environments
- 10 A at 600 V AC rating handles heavy-duty loads
30 mm Selector Switch for Industrial Panels
This Schneider Electric 9001KS34FBH13 is a 30 mm non-illuminated selector switch built for machinery control panels. It suits operators who need a maintained or momentary two-position selector with an extended lever and SPDT contact form for standard switching tasks.
Panel Mount with Metal Bezel and IP66 Seal
The switch mounts in a standard 30 mm cutout using a metal bezel and polycarbonate head that meet NEMA 12, 13, 3, 3R, 4 and IP66 ratings. Installation fails when the panel cutout is undersized or when the bezel threads strip from over-tightening in thin metal enclosures.
10 A at 600 V AC with A600/Q600 Rating
Contacts are rated 10 A at 600 V AC under NEMA designations A600 and Q600, limiting use to control-circuit loads within those values. The two-position cam D provides XO at position A and OX at position B with no third position, so it cannot support three-state or centre-off switching sequences.
Highlights
- 30 mm panel cut-out simplifies installation
- Two maintained positions with cam D logic
- Extended black lever for clear manual operation
- IP66 and NEMA 12, 13, 3, 3R, 4 sealing resists harsh environments
- 10 A at 600 V AC rating handles heavy-duty loads
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
How can I verify the selector switch is operating correctly after installation?
Check that Position A gives an XO contact state and Position B gives an OX state with the maintained/momentary action functioning smoothly.
What components are included and what must be sourced separately?
The selector switch with extended lever operator head is supplied; mounting hardware and wiring are not included.
Which version should I choose for a 600 V AC control circuit needing NEMA 12 and IP66 protection?
This 30 mm black selector switch rated 10 A at 600 V AC with NEMA 12, 13, 3, 3R, 4 and IP66 meets those requirements.
