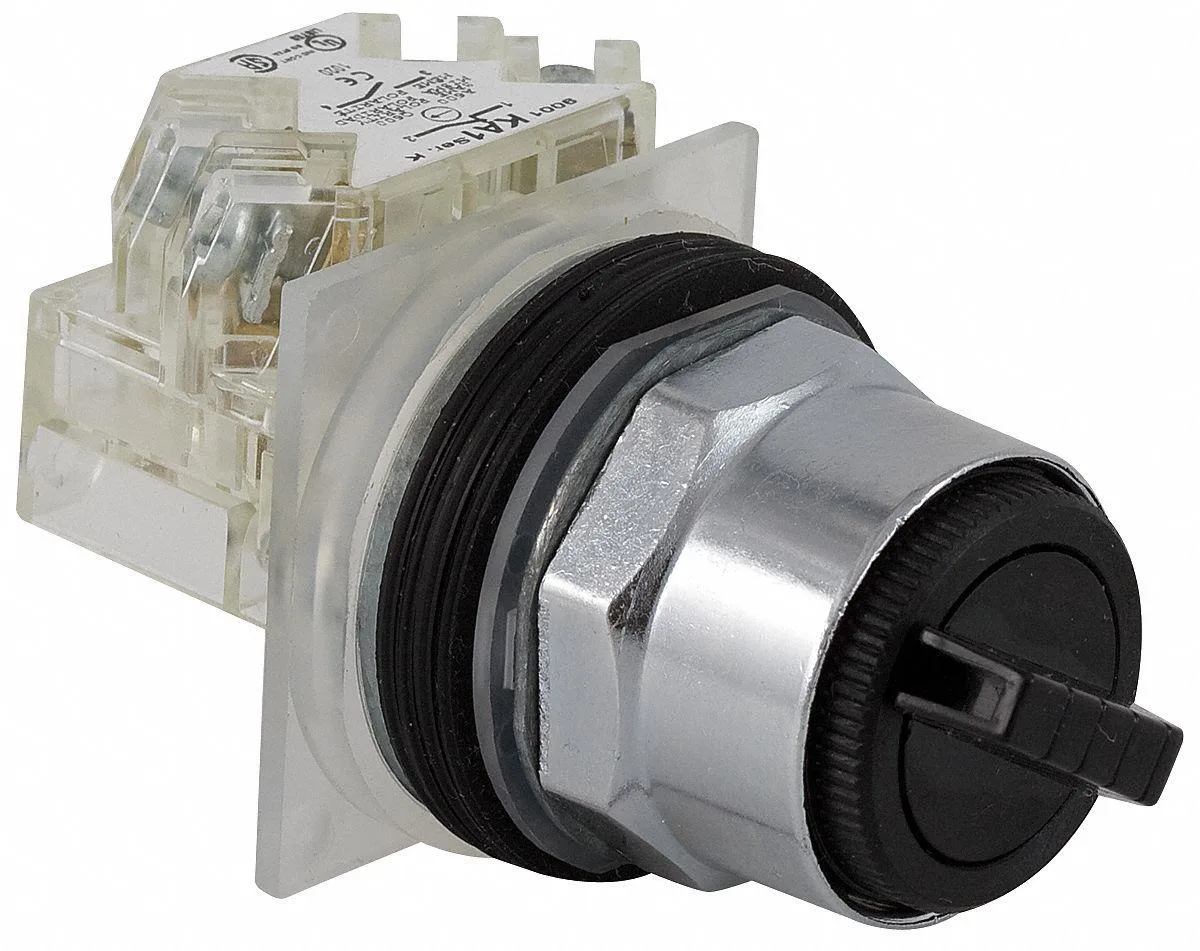

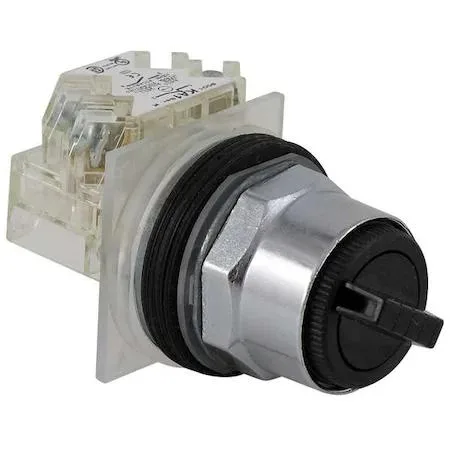

Schneider Electric 9001KS34BH13 selector switch 30 mm 2 position black
A 30 mm two-position selector switch with maintained or momentary action, SPDT contacts rated at 10A and 600V AC, NEMA 12, 13, 3, 3R, 4 and IP66 protection, black lever on a chrome metal bezel
- 30 mm mounting fits standard panels
- Two-position lever gives clear on/off control
- 10 A at 600 V AC handles heavy loads
- NEMA 12, 13, 3, 3R, 4 and IP66 seal out dust and water
- Metal bezel and polycarbonate head resist impact and corrosion
Selector Switch 30 mm 2 Position
The Schneider Electric 9001KS34BH13 is a non-illuminated selector switch designed for industrial control panels and machinery interfaces. It suits operators who need a compact, panel-mounted device for manual circuit selection in demanding environments.
SPDT Contact Form 10A 600V AC
The single specification that determines fit is the SPDT contact form rated at 10 amperes and 600 volts AC with NEMA designations A600 and Q600. This defines the switching capacity and electrical compatibility for the intended control circuit.
IP66 NEMA 12 13 3 3R 4
The operator head is polycarbonate with a metal bezel and meets IP66 plus NEMA 12, 13, 3, 3R, and 4 ratings for ingress protection. These enclosures resist dust, water jets and oil, so the switch runs cool and quiet without forced ventilation.
Highlights
- 30 mm mounting fits standard panels
- Two-position lever gives clear on/off control
- 10 A at 600 V AC handles heavy loads
- NEMA 12, 13, 3, 3R, 4 and IP66 seal out dust and water
- Metal bezel and polycarbonate head resist impact and corrosion
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
What does the 10 A at 600 V AC rating mean once the switch is wired into a control circuit?
The switch contacts are rated to carry up to 10 amperes at 600 volts AC, matching the A600/Q600 NEMA designation for heavy-duty pilot-duty loads.
Which mounting standard does the 30 mm cut-out follow and what panel thickness does it accept?
The operator fits a standard 30 mm panel cut-out; the metal bezel and polycarbonate head clamp to panels typically used in industrial enclosures.
What clearance and mounting depth are needed behind the panel for the SPDT contact block?
The maintained/momentary lever operator with Cam D and a single SPDT block requires standard 30 mm operator depth; allow space for wiring to the screw terminals.
