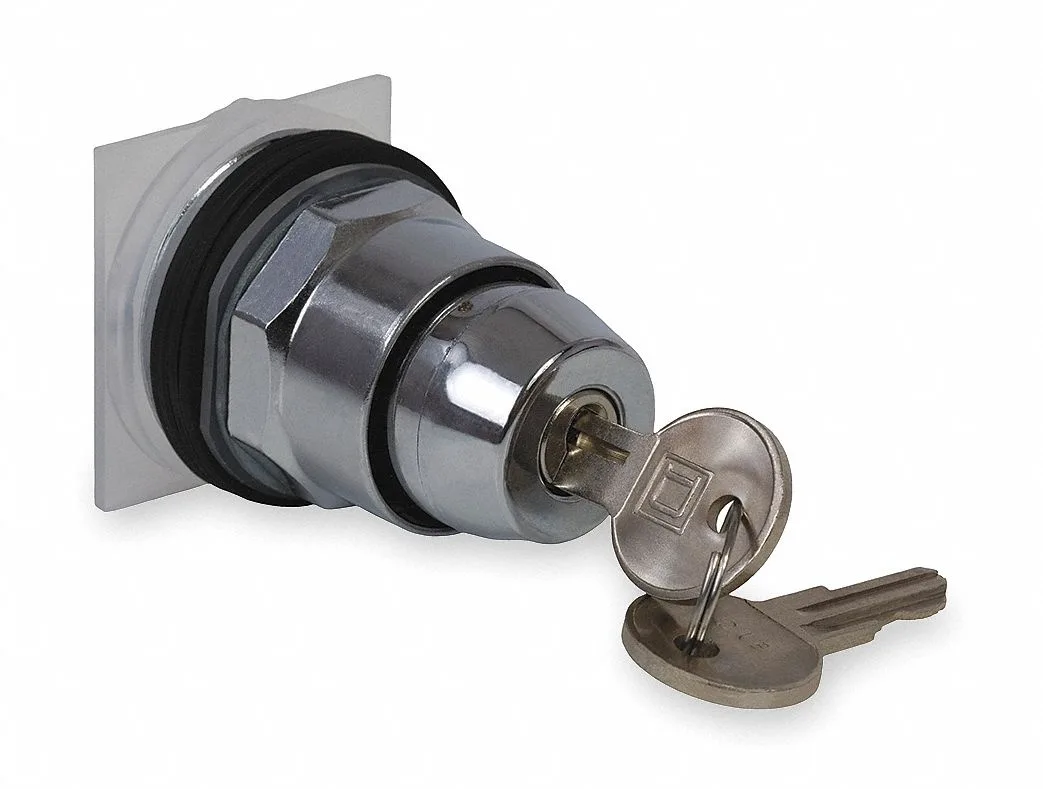

Schneider Electric 9001KS12K1 30 mm 2 Position Keyed Selector Switch
30 mm keyed selector switch with two maintained positions, chrome metal bezel, NEMA 12, 13, 3, 3R, 4 and IP65 ratings, key removable in left position, includes E10 key
- Keyed operation restricts access to authorised personnel
- 30 mm cut-out fits standard panel layouts
- IP65 and NEMA 12, 13, 3, 3R, 4 ratings protect against dust and water
- Maintained two-position action holds each setting without spring return
- UL E42259, CSA LR24590 Class 3211 03 and CE marks confirm compliance
30 mm keyed selector switch
The Schneider Electric 9001KS12K1 is a 30 mm keyed selector switch with a two-position maintained action. A chrome metal operator head and bezel house a keyed operator that removes the key in the left position. NEMA 12, 13, 3, 3R and 4 ratings plus IP65 ingress protection suit industrial control panels.
Indoor panel builders needing keyed security
This switch suits panels where only authorised personnel should change modes. It does not serve applications requiring illuminated indication, momentary return action, or a greater number of selectable positions. Buyers who need a different key code or removal position should look at other variants.
Cam D and supplied key
The mechanism uses a Cam D contact arrangement and ships with a single E10 key. No additional keys, legend plates or mounting hardware are included, so installers must source those separately. CE, CSA and UL certifications confirm compliance for North American installations.
Highlights
- Keyed operation restricts access to authorised personnel
- 30 mm cut-out fits standard panel layouts
- IP65 and NEMA 12, 13, 3, 3R, 4 ratings protect against dust and water
- Maintained two-position action holds each setting without spring return
- UL E42259, CSA LR24590 Class 3211 03 and CE marks confirm compliance
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
What panel cut-out size do I need for the 30 mm keyed selector switch?
The operator requires a standard 30 mm mounting hole and fits panels up to 6 mm thick using the included metal bezel and locking nut.
Will the maintained two-position cam work with my existing 9001 series contact blocks?
Yes, the Cam D mechanism is designed for Schneider Electric 9001 Type K contact blocks, providing maintained action in both left and right positions.
How do I verify the NEMA 4 and IP65 sealing after installation?
Confirm the chrome metal bezel sits flush with the panel gasket, the key turns smoothly through both maintained positions, and the key removes only in the left position as specified.
