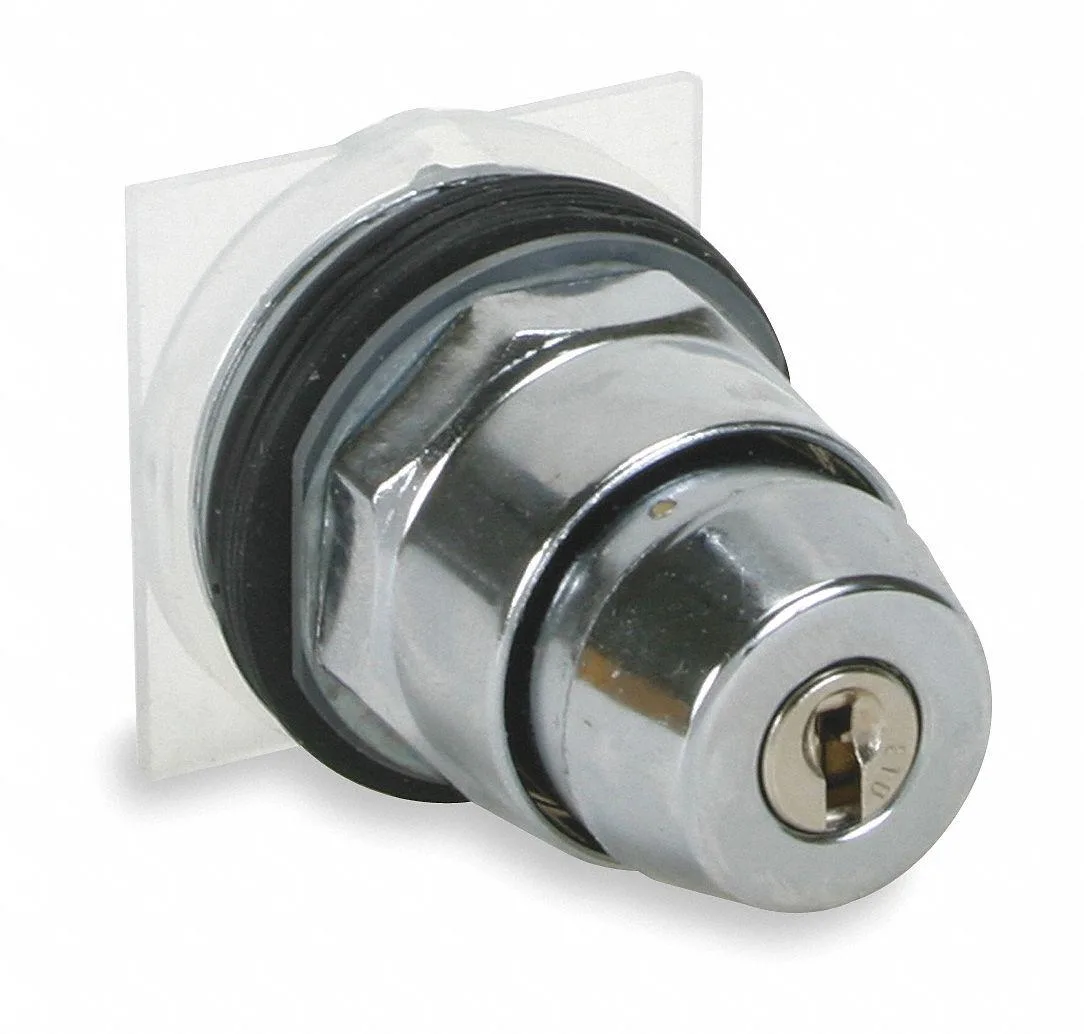

Schneider Electric 9001KS11K2 Keyed Selector Switch 30mm 2 Position
Keyed 30 mm selector switch with two maintained positions, chrome metal bezel, IP65 and NEMA 12/13/3/3R/4 ratings, key removable in right position, includes E10 key
- Keyed operator restricts access to authorised personnel
- 30 mm mounting fits standard panel cut-outs
- Two maintained positions hold setting without spring return
- IP65 and NEMA 12/13/3/3R/4 ratings protect against dust and water ingress
- Chrome metal bezel and head resist corrosion in harsh environments
30 mm Keyed Selector Switch
The Schneider Electric 9001KS11K2 is a 30 mm keyed selector switch designed for industrial control panels. It provides a maintained two position action operated by a keyed chrome metal operator head. The switch suits operators who need secure manual control of machinery circuits.
NEMA 12 13 3 3R 4 and IP65 ratings
The switch carries NEMA ratings 12 13 3 3R 4 and an IP65 rating for ingress protection. These standards cover indoor dust and dripping water as well as outdoor rain and hose directed water. Installations requiring submersion protection or higher pressure wash down are not covered by these ratings.
Cam E contact configuration
The unit uses a Cam E contact arrangement with key removal in the right position only. This cam pattern determines the exact circuit sequence across the two maintained positions. Panels wired for a different cam code or needing key removal in both positions will not match this switch.
Highlights
- Keyed operator restricts access to authorised personnel
- 30 mm mounting fits standard panel cut-outs
- Two maintained positions hold setting without spring return
- IP65 and NEMA 12/13/3/3R/4 ratings protect against dust and water ingress
- Chrome metal bezel and head resist corrosion in harsh environments
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
Should I pick the 2-position maintained version or look for a spring-return model?
This unit is a 2-position maintained selector; the key stays in the chosen position until you turn it again, so choose it when you need a latched on/off or hand/auto function rather than a momentary action.
What does the 30 mm cutout mean when I mount it in a panel?
The operator fits a standard 30 mm round hole, and the metal bezel and chrome finish give a flush, rugged front that meets the NEMA and IP ratings once the mounting nut is tightened.
How do the NEMA 12, 13, 3, 3R, 4 and IP65 ratings limit where I can install it?
The combined ratings mean the switch is protected against dust, dripping water, splashing water, hose-directed water and oil or coolant seepage, so it suits indoor industrial panels and outdoor enclosures exposed to wash-down or weather.
