Schneider Electric 9001KS11K1H13 Key Selector Switch 30mm 2Pos
A 30 mm two-position key selector switch with maintained action, SPDT contacts rated 10 A at 600 V AC, and IP65 protection
- Keyed operator restricts access to authorised personnel only
- 30 mm mounting diameter fits standard industrial panel cut-outs
- Two maintained positions with SPDT contacts suit simple on/off control
- IP65 and NEMA 12, 13, 3, 3R, 4 ratings protect against dust and water ingress
- 10 A at 600 V AC contact rating handles typical industrial control circuits
30 mm two-position key selector

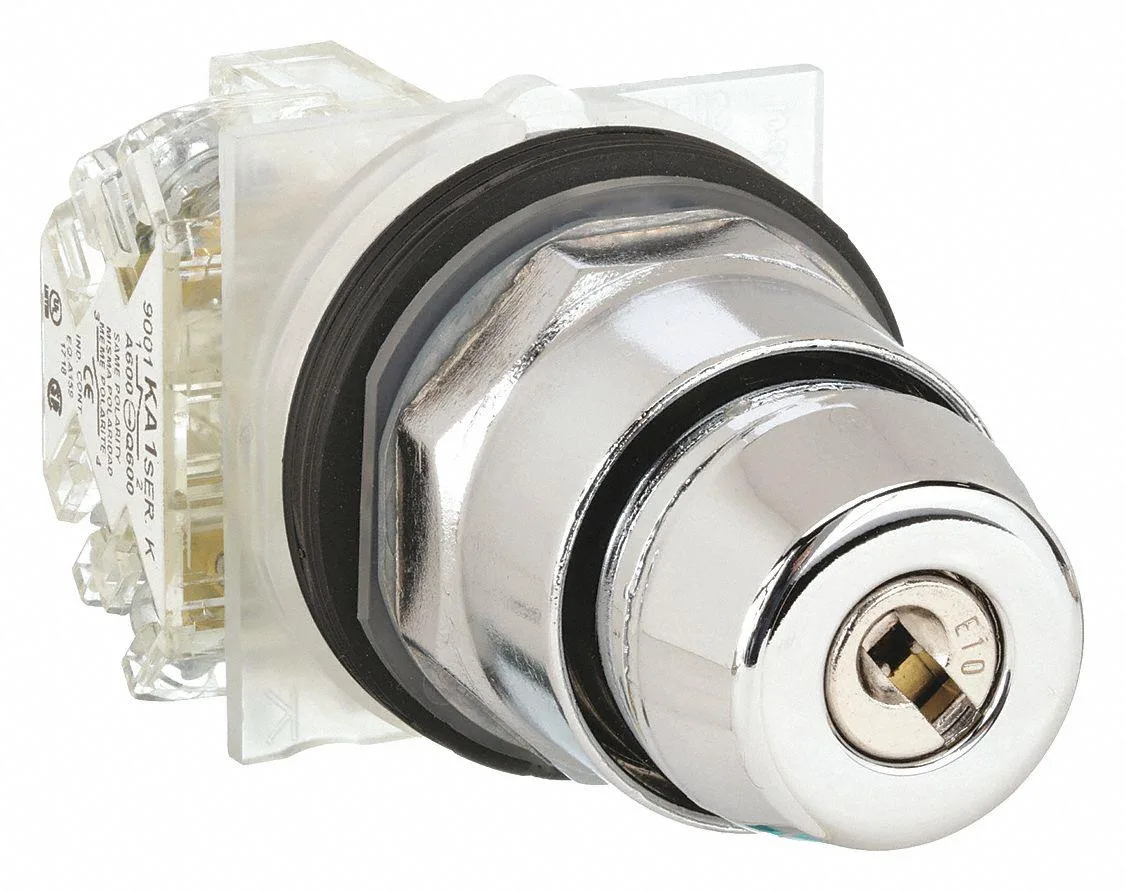

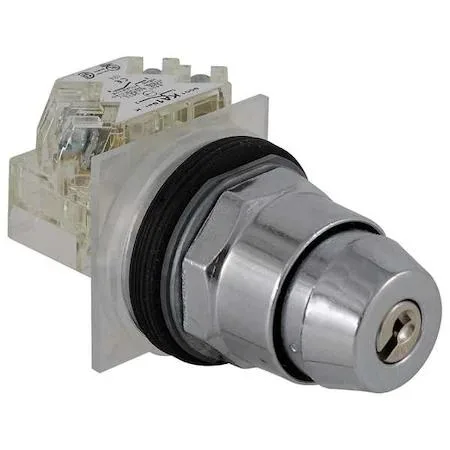

The Schneider Electric 9001KS11K1H13 is a 30 mm key-operated selector switch designed for industrial control panels. It provides two maintained positions with a chrome-finished brass operator head and metal bezel. The switch carries a 10 A at 600 V AC contact rating and NEMA A600/Q600 designation for reliable circuit switching.
NEMA 12 13 3 3R 4 and IP65 sealing
The assembly meets NEMA 12, 13, 3, 3R and 4 enclosure ratings together with IP65 ingress protection, so dust and water jets do not affect internal contacts. Cam E operation gives an OX state in position A and XO in position B with left key removal, allowing straightforward wiring without a third position. No forced-air cooling or acoustic rating applies to this passive component.
Sustained industrial duty cycles
Under continuous operation the maintained action holds each position without spring return, and the SPDT contact form rated for 10 A at 600 V AC handles prolonged load switching. The metal construction and sealed rating ensure consistent performance in environments exposed to oil, coolant or wash-down conditions over extended shifts.
Highlights
- Keyed operator restricts access to authorised personnel only
- 30 mm mounting diameter fits standard industrial panel cut-outs
- Two maintained positions with SPDT contacts suit simple on/off control
- IP65 and NEMA 12, 13, 3, 3R, 4 ratings protect against dust and water ingress
- 10 A at 600 V AC contact rating handles typical industrial control circuits
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
How is the 30 mm Schneider Electric 9001KS11K1H13 key selector switch installed, and what step is often missed?
Mount the operator through a standard 30 mm panel cut-out, secure the metal bezel with the locking nut, then wire the SPDT contacts to the A600/Q600 rated terminals; the step often missed is verifying the Cam E orientation so the maintained positions match the OX and XO contact states.
What maintenance or replacement will the 9001KS11K1H13 need over time?
The key cylinder and brass operator head are built for long service; plan to inspect the IP65 seal and chrome bezel periodically and replace the complete operator if the key removal action in the left position becomes stiff or the NEMA 12, 13, 3, 3R, 4 rating is compromised.
What limit appears first when the 9001KS11K1H13 runs continuously at full load?
The 10 A at 600 V AC contact rating sets the thermal limit; sustained operation at that current will hit the A600/Q600 design maximum before any mechanical or environmental rating becomes a constraint.
