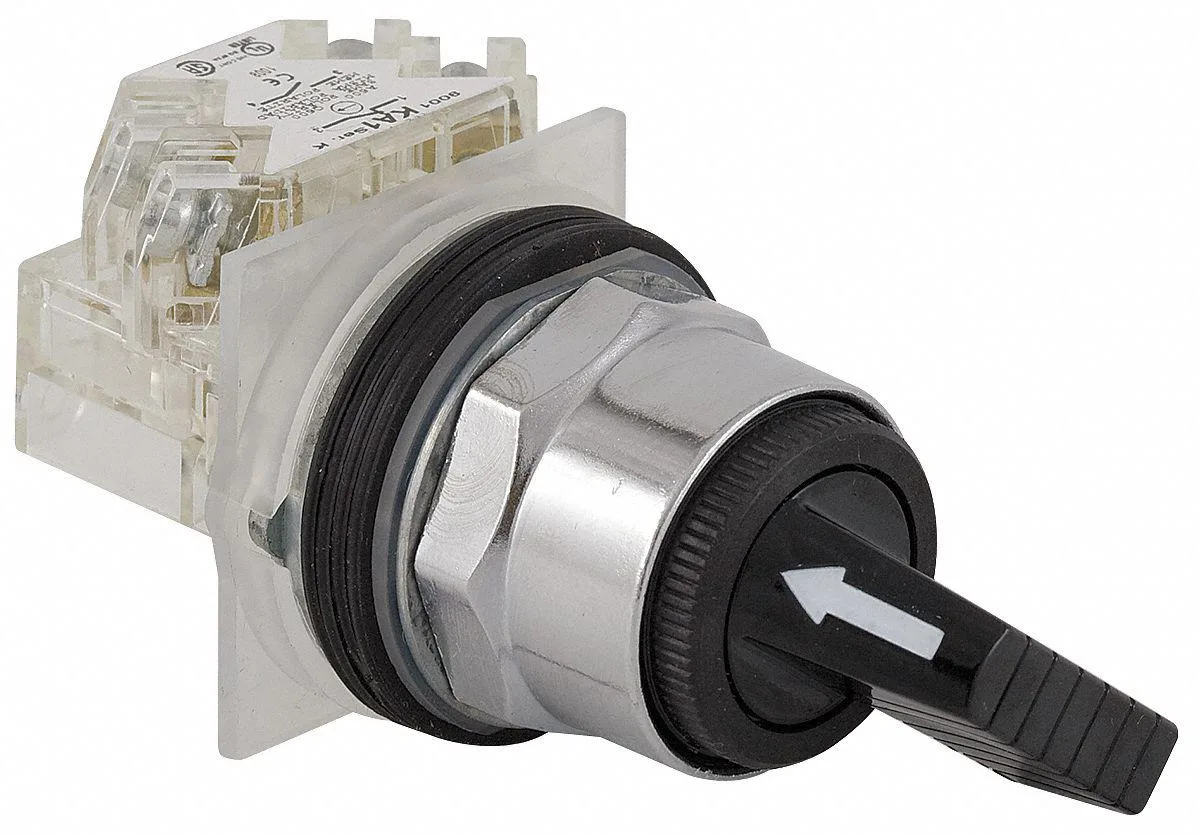

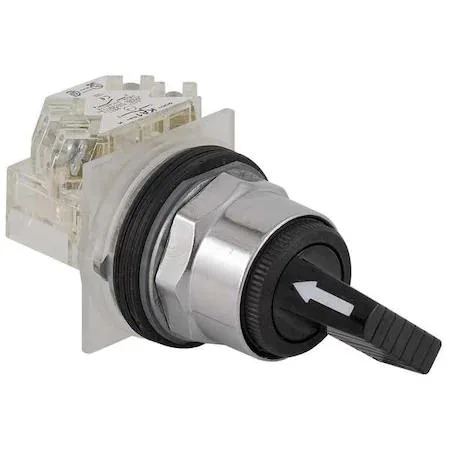

Schneider Electric 9001KS11FBH2 30 mm selector switch
A 30 mm non-illuminated selector switch with two maintained positions, DPDT contacts rated 10 A at 600 V AC, IP65 and NEMA 12, 13, 3, 3R, 4 protection, and a black polycarbonate lever on a metal bezel
- 30 mm mounting fits standard panels
- Two maintained positions give clear on/off control
- DPDT contacts rated 10 A at 600 V AC
- IP65 and NEMA 12, 13, 3, 3R, 4 sealing resists dust and water
- Black polycarbonate lever on metal bezel withstands industrial use
30 mm selector switch for control panels
The Schneider Electric 9001KS11FBH2 is a 30 mm selector switch built for industrial control panels and machinery interfaces. It uses an extended black lever operator with a maintained two-position action and DPDT contacts rated at 10A and 600V AC. The metal bezel and polycarbonate head suit harsh environments.
NEMA and IP ratings define the environmental limits
The switch carries NEMA 3, 3R, 4, 12 and 13 ratings plus IP65 protection against dust and water jets. Contacts are designated A600 for AC and Q600 for DC duty. Operation is limited to the two maintained positions described by the cam E sequence. No third position or momentary action is available.
Two-position DPDT switching with 10A capacity
The DPDT contact block handles 10A at 600V AC, providing enough capacity for typical motor-starter coils and control relays. It will not serve loads that exceed the A600/Q600 ratings or applications needing three or more discrete positions. Builders requiring illuminated operators, key removal or additional contact decks must choose a different model.
Highlights
- 30 mm mounting fits standard panels
- Two maintained positions give clear on/off control
- DPDT contacts rated 10 A at 600 V AC
- IP65 and NEMA 12, 13, 3, 3R, 4 sealing resists dust and water
- Black polycarbonate lever on metal bezel withstands industrial use
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
Should I choose the 2 position maintained selector or a different cam configuration?
This unit uses cam E with two maintained positions, giving DPDT contacts that switch OXOX in position A and XOXO in position B, so it suits applications needing a simple on/off or hand/off sequence.
What does the 10 A, 600 V AC contact rating mean for my control circuit?
The contacts are rated for 10 A at 600 V AC under NEMA A600/Q600, so they can directly switch typical motor starters, solenoids or pilot devices without an intermediate relay.
Does the IP65 and NEMA 4/12/13 rating allow outdoor or wash-down mounting?
Yes, the IP65 rating plus NEMA 3, 3R, 4, 12 and 13 enclosures mean the operator head withstands water jets, dust and oil, making it suitable for outdoor panels or wash-down areas.
