Schneider Electric 9001KS11FBH13 selector switch 30 mm 2 position black
A 30 mm two-position selector switch with maintained action, SPDT contacts rated 10 A at 600 V AC, IP66 and NEMA 12, 13, 3, 3R, 4 protection
- 30 mm panel cut-out fits standard enclosures
- Two maintained positions for clear on/off control
- SPDT contact rated 10 A at 600 V AC
- IP66 and NEMA 4/12/13 ratings resist dust and water
- Metal bezel and polycarbonate head withstand industrial use
30 mm Selector Switch

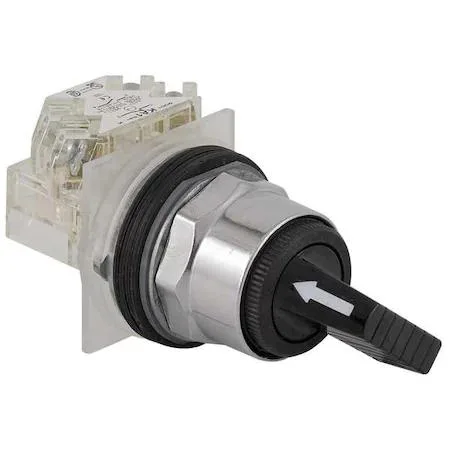

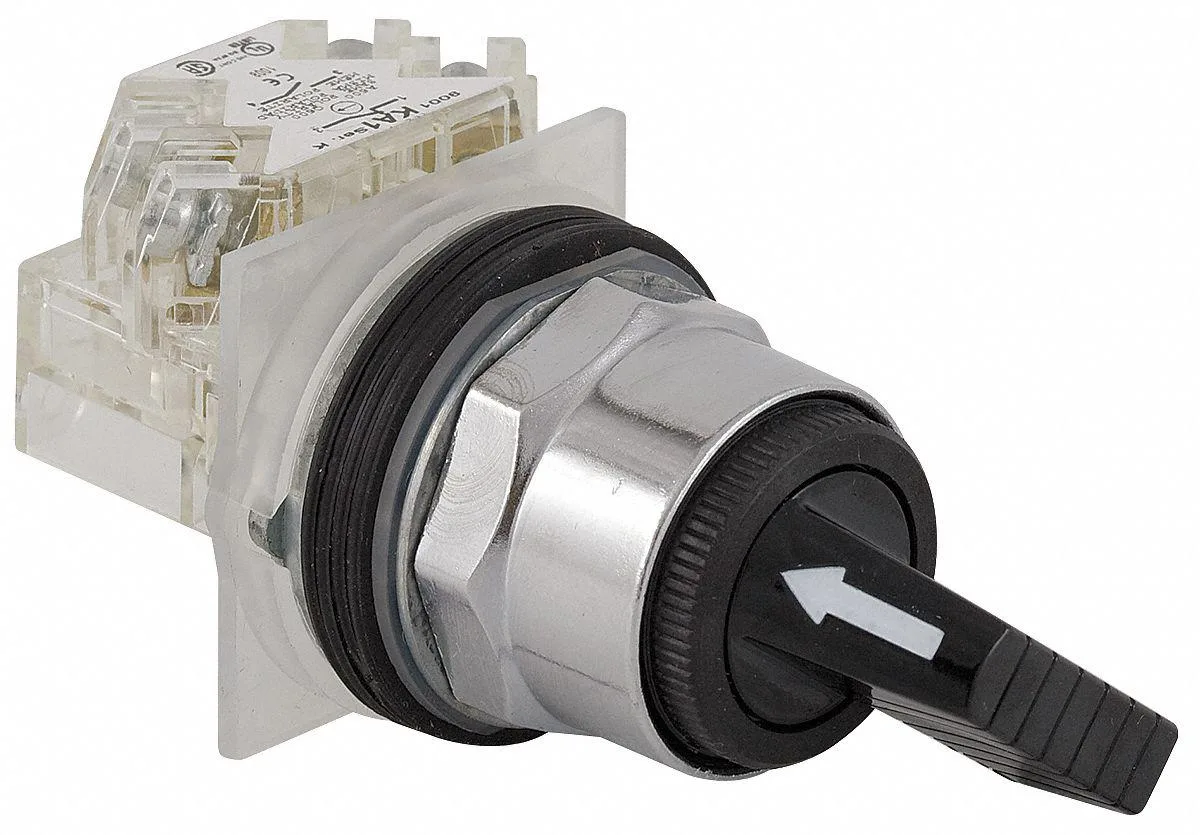

This 30 mm selector switch provides a two-position maintained action for industrial control panels. The black polycarbonate extended lever operator mounts in a standard cut-out and is rated NEMA 12, 13, 3, 3R, 4 with IP66 ingress protection. It suits operators who need a durable manual disconnect or mode selector in harsh environments.
SPDT Contact Form
The single-pole double-throw contact block switches between position A (OX) and position B (XO) with no centre-off position. Rated 10 A at 600 V AC under NEMA A600/Q600 designations, it handles motor starter coils and pilot duty loads directly. Buyers needing a centre-off or three-position sequence cannot use this cam E arrangement.
Sustained Load Behaviour
Metal bezel and basic metal construction dissipate heat from continuous 10 A current without derating. The maintained contacts hold position under vibration and thermal cycling, while the IP66 seal prevents contamination during wash-down. It is not suited for applications requiring momentary spring-return action or key-operated security.
Highlights
- 30 mm panel cut-out fits standard enclosures
- Two maintained positions for clear on/off control
- SPDT contact rated 10 A at 600 V AC
- IP66 and NEMA 4/12/13 ratings resist dust and water
- Metal bezel and polycarbonate head withstand industrial use
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
What does the 10 A contact rating mean when the switch is installed in a 600 V AC control circuit?
The switch can safely make and break up to 10 amps at 600 volts AC, matching the A600/Q600 NEMA designation for heavy-duty pilot-duty loads.
How does the 30 mm mounting size and NEMA 4/12/13/IP66 rating limit where this selector can be used?
It fits a standard 30 mm panel cut-out and the sealed bezel withstands water jets, oil, dust and indoor/outdoor weather, so it suits industrial panels, wash-down areas and outdoor enclosures.
What panel thickness and cut-out does the extended-lever operator need for a secure mount?
The 30 mm threaded bushing clamps panels up to typical industrial thickness with the supplied hardware, and the chrome metal bezel locks the black polycarbonate lever in place.
