Schneider Electric
Schneider Electric 9001KS11BH13 Selector Switch 30mm 2 Position Black
A 30 mm two-position selector switch with maintained action, 10 A contact rating at 600 V AC, and IP66-rated polycarbonate lever
- 2-position maintained action simplifies control logic
- 10 A at 600 V AC handles heavy loads
- IP66 and NEMA 4/12/13 ratings seal out dust and water
- 30 mm metal bezel fits standard panel cut-outs
- Black polycarbonate lever resists impact and UV

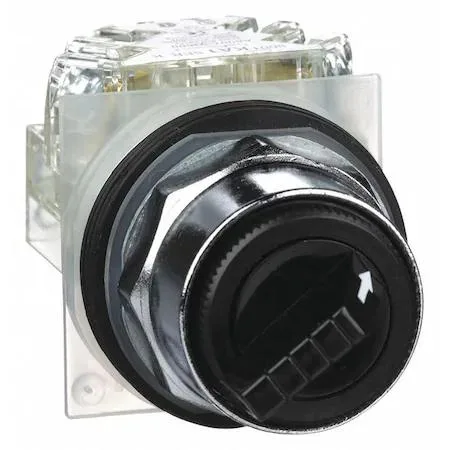

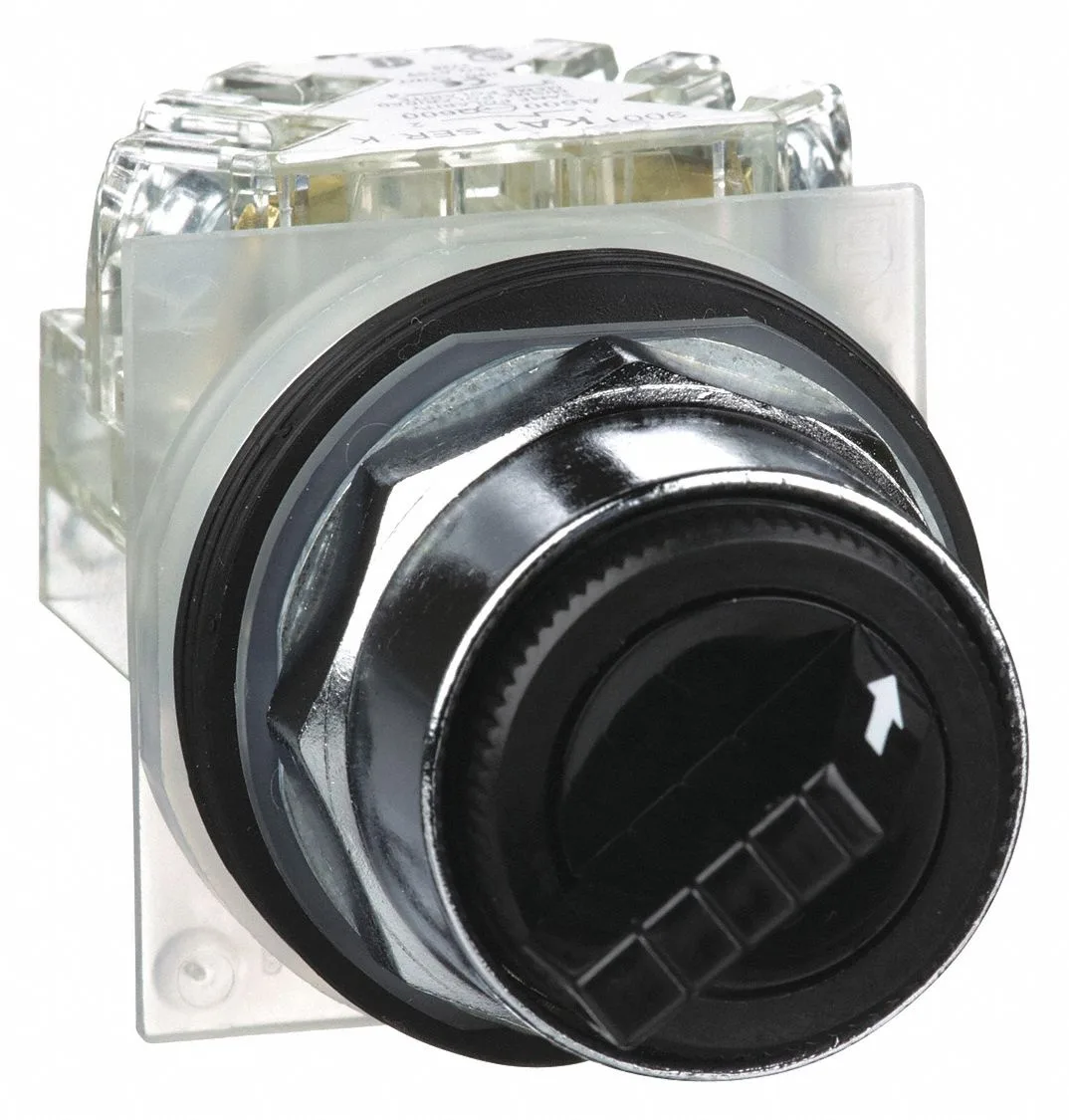

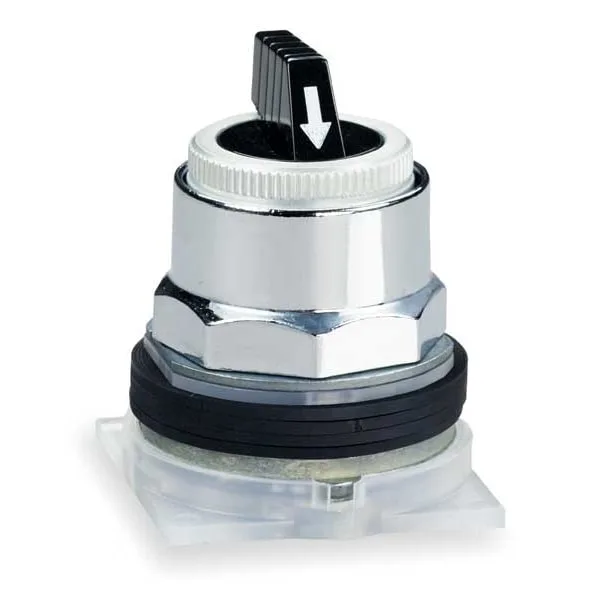

30 mm Selector Switch for Industrial Panels
This 30 mm selector switch fits standard panel cut-outs and provides two maintained positions for machine control. It is built for operators who need a rugged, non-illuminated lever with clear mechanical detents.
NEMA 12 13 3 3R 4 and IP66 Environmental Limits
The switch carries NEMA ratings 12, 13, 3, 3R and 4 plus IP66, so it resists dust, water spray and oil in indoor and outdoor enclosures. It is not rated for prolonged submersion or hazardous-location atmospheres.
10 A 600 V AC Contact Rating Decides Suitability
The contacts are rated 10 A at 600 V AC under NEMA A600/Q600, making the unit appropriate for pilot-duty circuits and small motor starters. Loads exceeding this current or voltage require a different switching device.
Highlights
- 2-position maintained action simplifies control logic
- 10 A at 600 V AC handles heavy loads
- IP66 and NEMA 4/12/13 ratings seal out dust and water
- 30 mm metal bezel fits standard panel cut-outs
- Black polycarbonate lever resists impact and UV
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
Should I pick the 30 mm version or a different mounting size?
This selector switch uses a 30 mm mounting diameter, so choose it when your panel cut-out matches that dimension.
What does the 10A @ 600V AC rating mean for my circuit?
The contacts are rated to carry up to 10 amps at 600 volts AC, suitable for standard industrial control circuits.
How does the IP66 rating protect the switch in practice?
IP66 means the operator head is dust-tight and withstands powerful water jets, keeping internals clean in wash-down environments.
