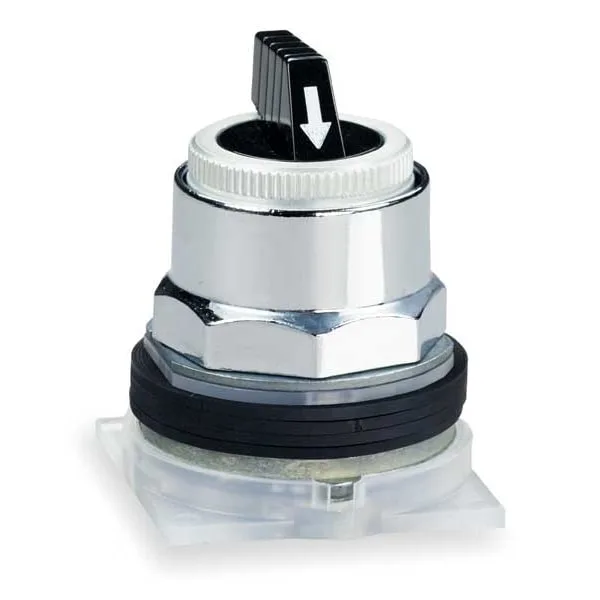

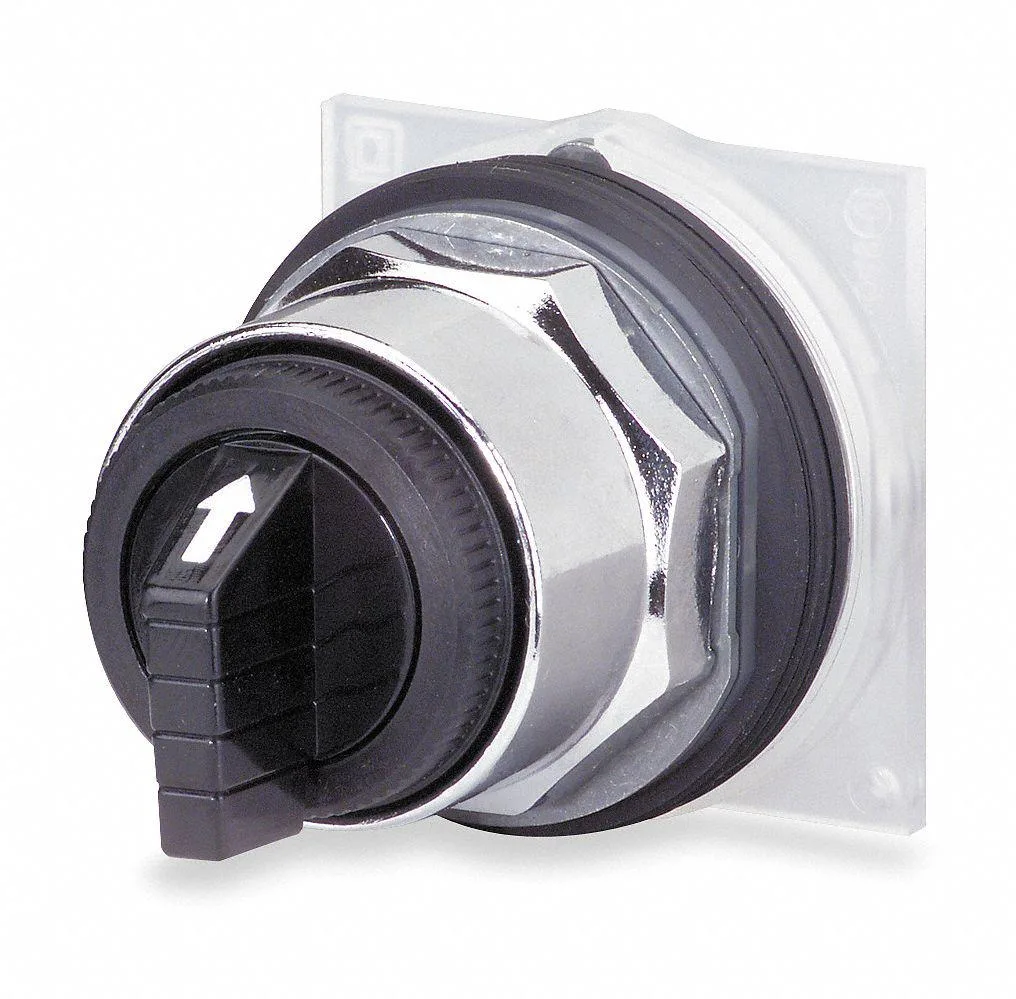

Schneider Electric 9001KS11BH1 selector switch 30 mm 2 position black
30 mm non-illuminated selector switch with maintained two-position action, SPDT contacts rated 10 A at 600 V AC, IP65 and NEMA 12, 13, 3, 3R, 4 protection, black lever on chrome-plated metal bezel
- 2-position maintained action for reliable manual control
- 30 mm mounting diameter fits standard panel cut-outs
- SPDT contact rated 10 A at 600 V AC for power switching
- IP65 and NEMA 12/13/3/3R/4 sealing resists dust and water jets
- Polycarbonate lever with chrome-plated metal bezel withstands industrial environments
30 mm Selector Switch for Industrial Panels
The Schneider Electric 9001KS11BH1 is a 30 mm non-illuminated selector switch designed for control panels and machine interfaces. It provides a two-position maintained action with an SPDT contact form suitable for standard industrial switching tasks.
Sustained Load Behaviour with NEMA and IP Ratings
Rated at 10A at 600V AC with NEMA designations A600 and Q600, the contacts are built for continuous pilot-duty operation. The operator head carries NEMA 12, 13, 3, 3R and 4 ratings plus IP65, so the sealing and temperature performance hold up during extended use in harsh environments.
Practical Limits of the 30 mm Mounting Standard
The 30 mm cut-out and Cam E operator define the mechanical envelope, so the switch fits standard panel layouts but cannot accommodate a third position or keyed removal. Buyers who need more than two maintained positions or a key-operated version will need a different operator style.
Highlights
- 2-position maintained action for reliable manual control
- 30 mm mounting diameter fits standard panel cut-outs
- SPDT contact rated 10 A at 600 V AC for power switching
- IP65 and NEMA 12/13/3/3R/4 sealing resists dust and water jets
- Polycarbonate lever with chrome-plated metal bezel withstands industrial environments
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
How much power does the 9001KS11BH1 draw when the lever is held in position A or B all day?
The selector switch has no internal power consumption; it simply opens or closes its SPDT contacts rated 10 A at 600 V AC.
What mounting cut-out and panel thickness does this 30 mm operator need?
It fits a standard 30 mm panel hole and clamps to panels up to 6 mm thick with the supplied metal nut.
Will the 9001KS11BH1 fit the same 30 mm cut-out as my old Harmony 9001K selector?
Yes, it uses the identical 30 mm mounting diameter and cam E, so it drops into the existing cut-out without drilling.
