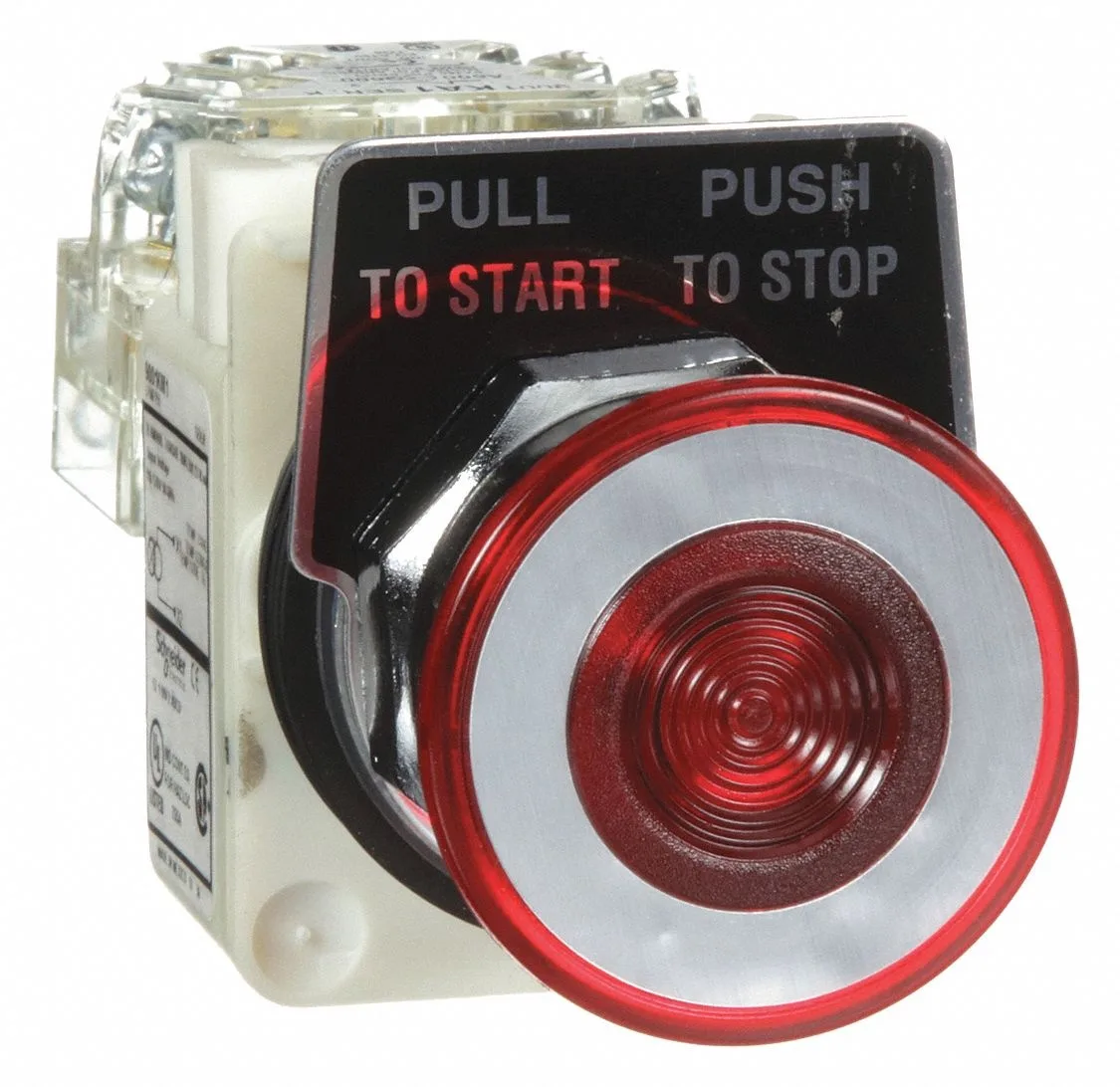

Schneider Electric 30 mm red mushroom push button with chrome bezel

Schneider Electric

Schneider Electric 9001KR9P1RH13 Illuminated Push Button 30 mm Red

SKU CH-X0SM-1CVPX

An illuminated 30 mm red mushroom-head push button with maintained action, 10 A contact rating and IP65 protection for industrial control panels

  • TypeLight Switch
  • Size/Dimensions30mm
  • Color/FinishRed
  • Color MappingRed
  • Instant status visibility with 30 mm red illuminated mushroom head
  • Reliable switching via SPDT contact rated 10 A at 600 V AC
  • Durable IP65 and NEMA 1, 12, 13 enclosure resists dust and water
  • Secure screw-clamp terminals simplify wiring and maintenance
  • Certified CE, CSA, UL and RoHS for regulated installations

30 mm illuminated push button

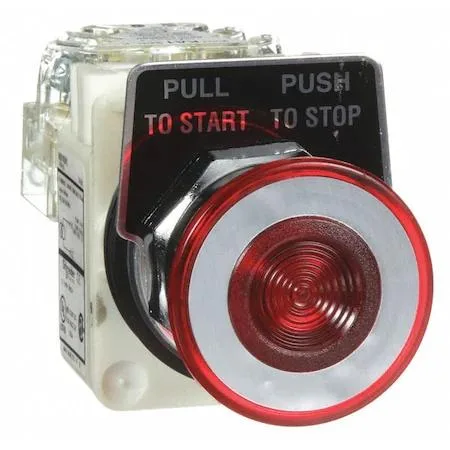

The Schneider Electric 9001KR9P1RH13 is a 30 mm mushroom-head push button with a red plastic operator and maintained action. It carries a SPDT contact rated at 10A at 600V AC and meets NEMA ratings 1, 2, 3, 3R, 4, 6, 12, 13 plus IP65. The legend reads Pull to Start/Push to Stop and the bezel is chrome-plated zinc die cast.

Check mounting cutout and control voltage

Verify that your panel has the correct 30 mm cutout for this operator size. Confirm the circuit voltage does not exceed 600V AC and that the 10A contact rating suits the load. Ensure the screw-clamp terminals match your wiring method and that the maintained pull-to-start push-to-stop action fits the control sequence.

Suits industrial start-stop stations needing

This button fits panels requiring NEMA 4, 6, 12 or 13 and IP65 protection with a clear start-stop legend. It is not for momentary-only applications, for circuits above 600V AC, or for installations that need a different operator size or colour code.

Highlights

  • Instant status visibility with 30 mm red illuminated mushroom head
  • Reliable switching via SPDT contact rated 10 A at 600 V AC
  • Durable IP65 and NEMA 1, 12, 13 enclosure resists dust and water
  • Secure screw-clamp terminals simplify wiring and maintenance
  • Certified CE, CSA, UL and RoHS for regulated installations

Specifications

TypeLight Switch
BrandSCHNEIDER ELECTRIC
Size/Dimensions30mm
Color/FinishRed
Color MappingRed

Questions about this item

What comes in the box with the 9001KR9P1RH13 push button and what must be purchased separately?

The unit includes the 30 mm red mushroom head operator with chrome-plated zinc die-cast bezel, maintained action mechanism, SPDT contact block rated 10 A at 600 V AC, and screw-clamp terminals. No legend plate, mounting hardware, or wiring is supplied.

Which NEMA or IP rating version should I choose for a wet or dusty environment?

This single model carries NEMA 1, 2, 3, 3R, 4, 6, 12, 13 and IP65 ratings, so it is suitable for indoor, outdoor, wash-down and dusty locations without needing a different version.

What does the 10 A at 600 V AC contact rating mean when the button is wired into a motor starter circuit?

The SPDT contacts can switch up to 10 A resistive or inductive loads at 600 V AC, matching NEMA A600/Q600 pilot-duty ratings for controlling contactor coils and similar circuits.
