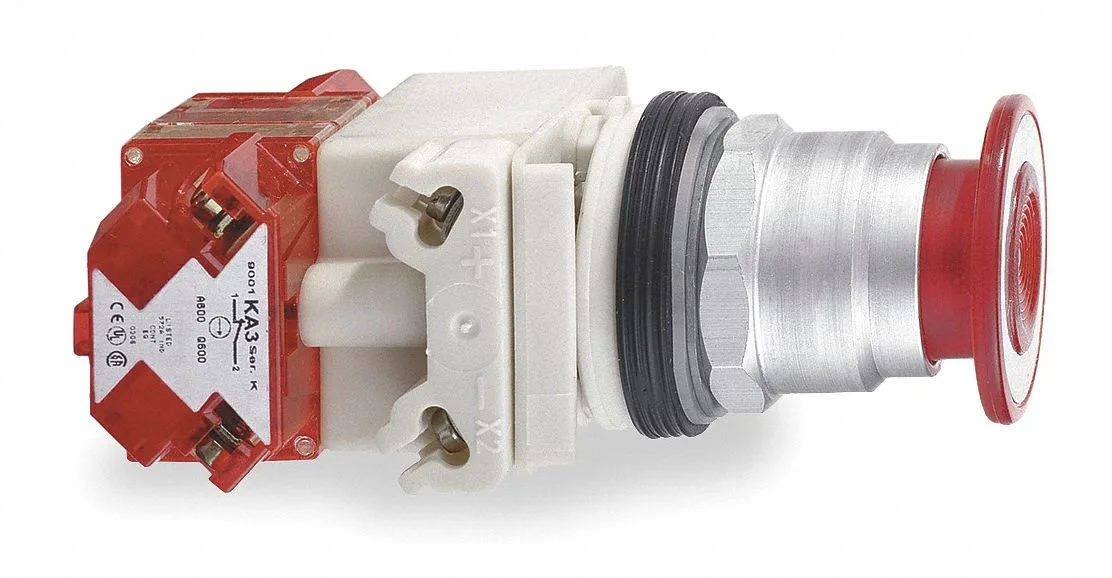

Red mushroom-head push button, 30 mm, chrome bezel, illuminated

Schneider Electric

Schneider Electric 9001KR8P1RH25 30 mm illuminated push button, red, 1NC/1NC

SKU CH-JGK6-M6KK3

30 mm red illuminated push button with momentary mushroom head, 1NC/1NC contacts rated 10 A at 120 V AC, NEMA 1, 12, 13, 2, 3, 3R, 4, 6 and IP20/IP65 protection

  • TypeLight Switch
  • Color/FinishRed
  • Color MappingRed
  • 30 mm mushroom head gives clear visual actuation
  • Red illuminated lens shows status at a glance
  • 1NC/1NC contacts provide redundant safety switching
  • NEMA 1, 2, 3, 3R, 4, 6, 12, 13 and IP65 suit harsh environments
  • Screw-clamp terminals with finger-safe design speed up wiring

Industrial illuminated push button

The Schneider Electric 9001KR8P1RH25 is a 30 mm red mushroom-head push button designed for momentary control in industrial panels. It carries a 1NC/1NC contact block rated at 10A at 120V AC and meets NEMA 1, 2, 3, 3R, 4, 6, 12, 13 plus IP20 and IP65 ingress protection. The operator features a chrome die-cast aluminium bezel and a 41 mm plastic mushroom head marked with a pull-to-start, push-to-stop legend.

Panel mounting and wiring requirements

The unit mounts in a standard 30 mm cut-out and uses screw-clamp terminals that are finger-safe and self-grounding. It needs a compatible enclosure rated for the target NEMA or IP class and a control circuit that can supply 120V AC to the contacts. The single-operator layout frees panel space compared with multi-operator stations while the illuminated head provides clear status indication in low-light conditions.

Sustained operation characteristics

Under continuous duty the contact rating remains 10A at 120V AC without derating and the IP65 seal maintains protection against dust and water jets. The momentary action returns automatically when released, so the button is suited to start-stop cycles rather than latched-on states. Compliance with CE, CSA, UL, REACH, RoHS and WEEE confirms the materials and construction meet long-term industrial safety and environmental standards.

Highlights

  • 30 mm mushroom head gives clear visual actuation
  • Red illuminated lens shows status at a glance
  • 1NC/1NC contacts provide redundant safety switching
  • NEMA 1, 2, 3, 3R, 4, 6, 12, 13 and IP65 suit harsh environments
  • Screw-clamp terminals with finger-safe design speed up wiring

Specifications

TypeLight Switch
BrandSCHNEIDER ELECTRIC
Color/FinishRed
Color MappingRed

Questions about this item

Will the 10 A contact rating hold up if the button is cycled continuously on a 120 V AC circuit?

The contact is rated for 10 A at 120 V AC, so sustained operation within that load is within specification.

Does the IP65 rating mean the switch stays cool and quiet during all-day operation?

IP65 covers dust and water ingress; the switch has no moving fan or active cooling, so it runs silently and its temperature rise depends only on the electrical load.

My panel cutout is 30 mm — will the 41 mm mushroom head and chrome bezel fit without extra adapters?

The 30 mm mounting diameter matches the cutout; the 41 mm mushroom head sits above the panel and the chrome die-cast bezel secures with the supplied hardware, no separate adapter needed.
