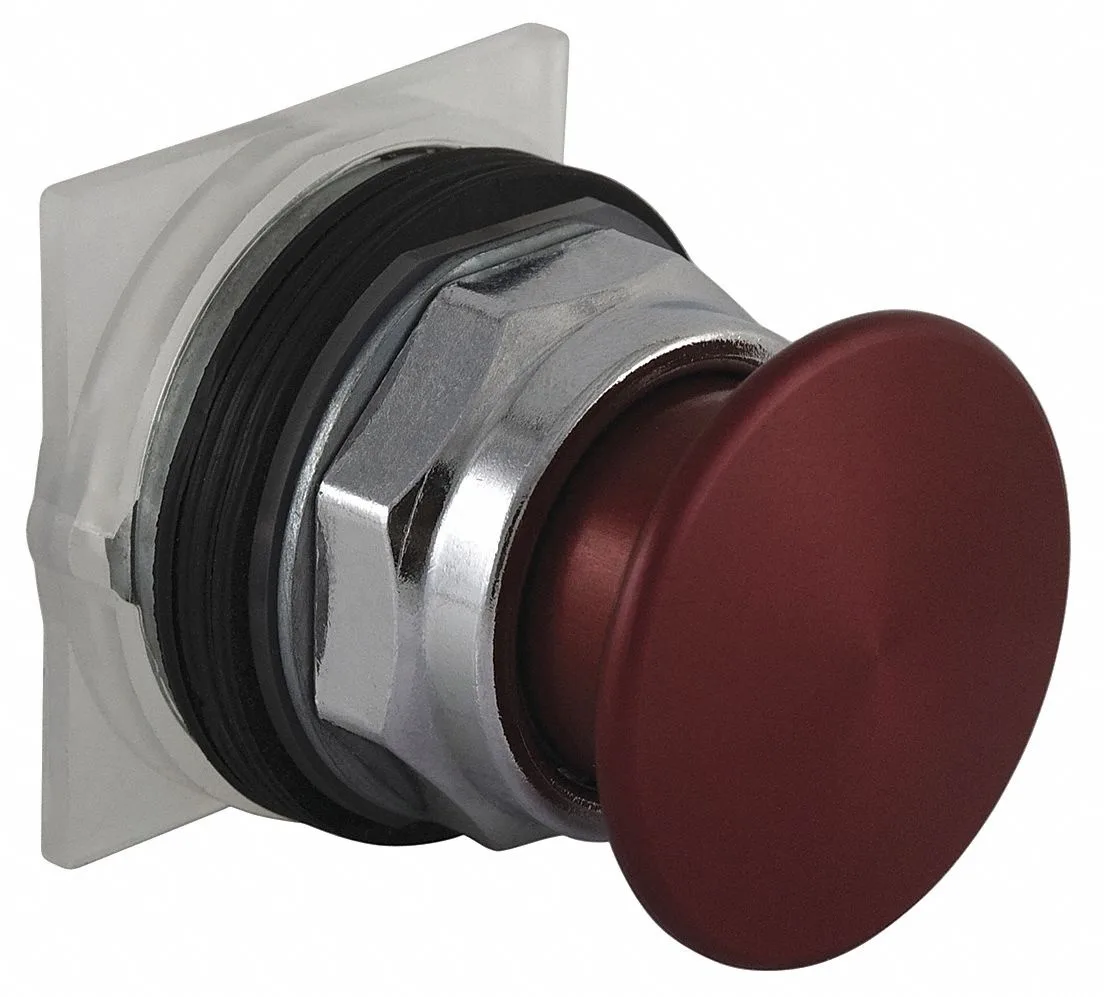

Schneider Electric 30mm red mushroom-head push button operator, metal construction

Schneider Electric

Schneider Electric 9001KR24RM Red 30mm Push Button Operator

SKU CH-T3J3-XEV0Z

A 30 mm red mushroom-head push button with metal construction, momentary action and IP66 / NEMA 1, 2, 3, 3R, 4, 6, 12, 13 ratings

  • TypeLight Switch
  • Size/Dimensions30mm
  • Color/FinishRed
  • Color MappingRed
  • Momentary mushroom head for fast emergency stop
  • 30 mm metal construction fits standard panels
  • NEMA 1 2 3 3R 4 6 12 13 rated enclosure
  • IP66 sealed against dust and water jets
  • Complies with IEC 60947 and UL 508 standards

30 mm Red Mushroom-Head Push Button

This Schneider Electric 9001KR24RM is a 30 mm red mushroom-head push button operator designed for industrial control panels. The momentary action suits emergency-stop or start functions where a large, visible actuator is required. Metal construction on the head, bezel and base provides mechanical durability in harsh environments. It is rated for NEMA 1, 2, 3, 3R, 4, 6, 12 and 13 enclosures.

Panel Cut-Out and Mounting Check

Verify that your panel provides a standard 30 mm mounting hole and sufficient depth behind the panel for the operator body. The metal bezel and base require a secure grounding path in accordance with IEC 61140 Class II. Confirm the enclosure carries at least IP66 or the NEMA ratings listed to maintain the ingress protection. No legend plate is included, so order one separately if identification is needed.

Metal Build and Daily Operation

The all-metal head, bezel and base resist impact, vibration per IEC 60068-2-27 and 60068-2-6, and corrosion in wash-down areas rated IP66. Red colour coding meets common safety standards for emergency functions. Momentary operation returns automatically when released, reducing accidental latch-in. UL 508 and CSA C22.2 No. 14 compliance supports North American panel builds.

Highlights

  • Momentary mushroom head for fast emergency stop
  • 30 mm metal construction fits standard panels
  • NEMA 1 2 3 3R 4 6 12 13 rated enclosure
  • IP66 sealed against dust and water jets
  • Complies with IEC 60947 and UL 508 standards

Specifications

TypeLight Switch
BrandSCHNEIDER ELECTRIC
Size/Dimensions30mm
Color/FinishRed
Color MappingRed

Questions about this item

What comes in the box with the 9001KR24RM push button operator and what must be purchased separately?

The operator includes the red 40 mm mushroom head, metal bezel and mounting hardware. Contact blocks, legend plates and any wiring accessories are sold separately.

How do I choose between the NEMA and IP ratings listed for this 30 mm red operator?

NEMA 1, 2, 3, 3R, 4, 6, 12, 13 cover indoor and outdoor enclosures with dust, water and oil resistance. IP66 adds a tested jet-water seal. Match the rating to the enclosure spec your panel requires.

What does the 30 mm mounting size mean when installing this momentary push button in a control panel?

The 30 mm cut-out is the standard industrial hole diameter. The metal bezel and mushroom head fit that opening, and the momentary action returns automatically when released.
