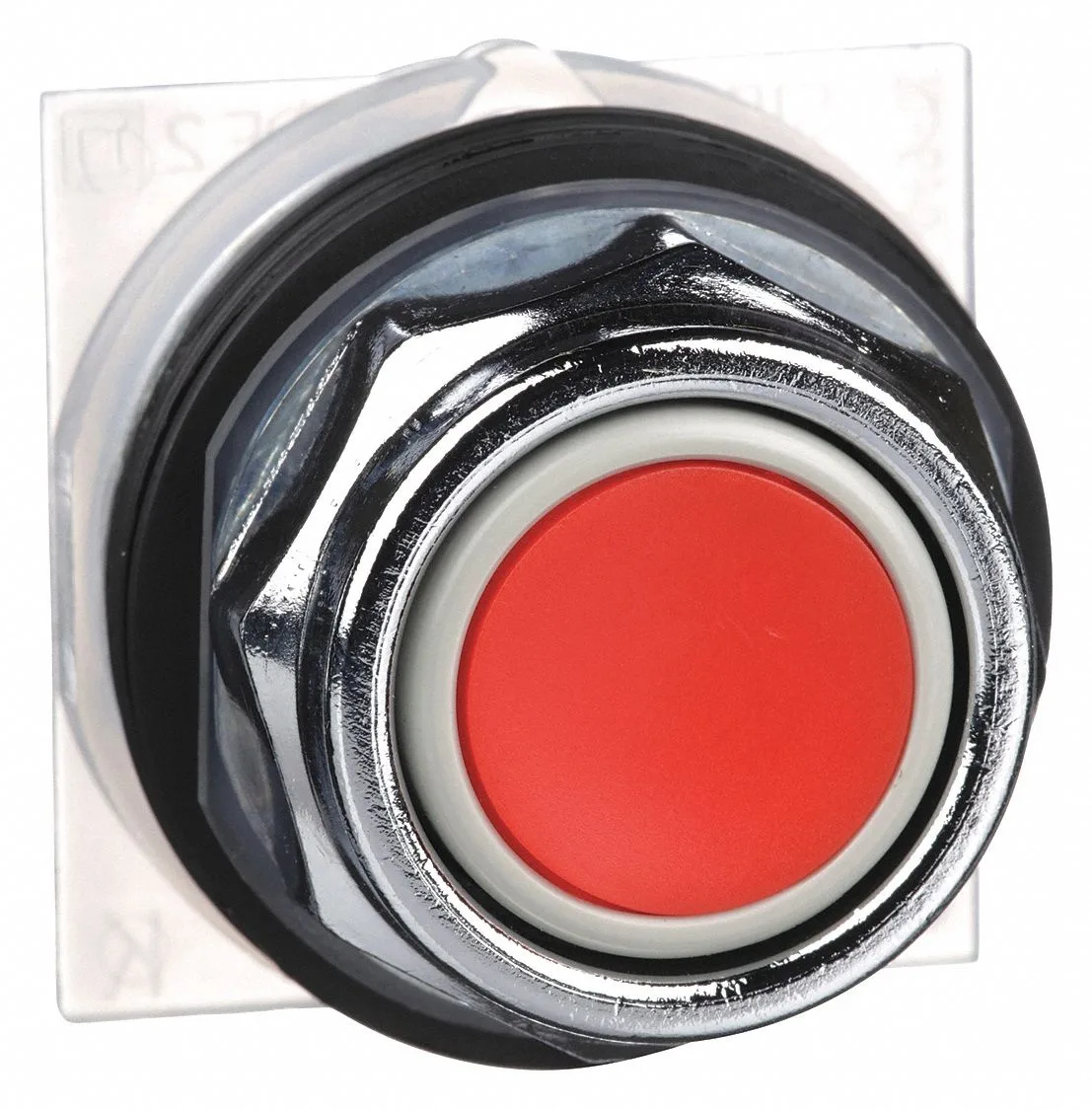

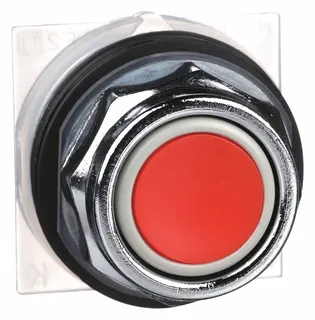

Schneider Electric 30mm red push button switch, metal base, industrial finish

Schneider Electric

Schneider Electric 9001KR1R 30mm Red Push Button Switch

SKU CH-W3EV-6WGKZ

A 30 mm red push-button operator rated IP66 and NEMA 4 for heavy-duty industrial environments

  • TypeLight Switch
  • Size/Dimensions30mm
  • Color/FinishRed
  • Color MappingRed
  • 30 mm cut-out fits standard industrial panels
  • Red actuator gives clear visual identification in any light
  • IP66 and NEMA 4 ratings resist dust, water and vibration
  • Metal base with automatic self-grounding removes extra wiring steps
  • ABS certification confirms suitability for heavy-duty marine and industrial use

30mm Red Push Button Operator

The Schneider Electric 9001KR1R is a non-illuminated 30mm push button operator designed for industrial control panels. Its metal base provides automatic self-grounding without extra wiring. The red colour allows clear visual identification in heavy-duty environments.

IP66 and NEMA 4 rated protection

The operator withstands dust, water jets, impact and vibration thanks to its IP66 and NEMA 4 ratings. It handles harsh industrial conditions where standard switches would fail. The ABS certification confirms suitability for demanding safety applications.

30mm panel cut-out requirement

Installation requires a standard 30mm mounting hole in the control panel. The screw terminals ship backed out to speed up wiring. Buyers needing illuminated indication or a different actuator style must select a separate operator from the 9001 range.

Highlights

  • 30 mm cut-out fits standard industrial panels
  • Red actuator gives clear visual identification in any light
  • IP66 and NEMA 4 ratings resist dust, water and vibration
  • Metal base with automatic self-grounding removes extra wiring steps
  • ABS certification confirms suitability for heavy-duty marine and industrial use

Specifications

TypeLight Switch
BrandSCHNEIDER ELECTRIC
Size/Dimensions30mm
Color/FinishRed
Color MappingRed

Questions about this item

Will the 30mm mounting fit my existing 30mm panel cut-outs?

Yes, the 30mm diameter matches standard industrial panel cut-outs for direct replacement.

How can I confirm the IP66 seal is effective after installation?

Verify the gasket seats evenly, tighten the locking nut to spec, and check for ingress during wash-down or dust exposure.

Does the box include contact blocks or only the red operator head?

The operator head is supplied alone; contact blocks and any legend plates must be ordered separately.
