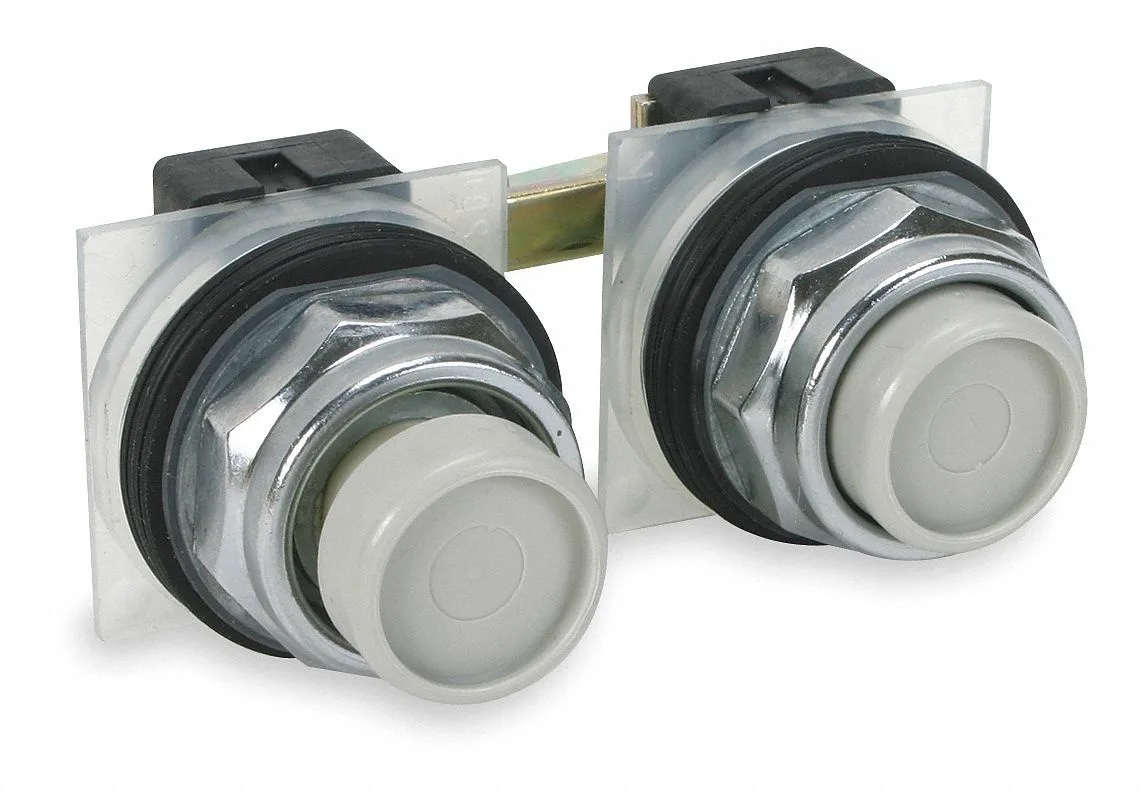

Schneider Electric 30 mm flush push button operator metal bezel multi colour caps

Schneider Electric

Schneider Electric 9001KR11U 30 mm push button operator

SKU CH-8GHX-3Y2YR

A 30 mm flush push button operator with multi-colour caps, metal construction, self-grounding finger-safe terminals, NEMA 1, 2, 3, 3R, 4, 6, 12, 13 and IP20, IP65 ratings

  • TypeLight Switch
  • Size/Dimensions30mm
  • Color/FinishMulti
  • Color MappingMulti
  • 30 mm metal operator fits standard panels
  • Multi-colour caps included for instant identification
  • NEMA 1, 2, 3, 3R, 4, 6, 12, 13 ratings suit harsh environments
  • IP65 protection resists dust and water jets
  • Self-grounding finger-safe terminals simplify safe wiring

30 mm Push Button Operator

The Schneider Electric 9001KR11U is a 30 mm flush push button operator designed for industrial control panels. It suits engineers and maintenance teams who need a durable, multi-colour selector for machine start, stop or mode-change functions.

Panel Mounting and Wiring

The operator fits a standard 30 mm cut-out and uses finger-safe, self-grounding terminals that accept stripped wire without special tools. A common issue is forgetting to tighten the locking nut evenly, which can leave the bezel misaligned or compromise the IP65 seal.

Compatibility Checklist

Verify that your enclosure cut-out matches the 30 mm diameter and that the panel thickness falls within the clamp range. Confirm the circuit voltage and current stay within the operator’s contact-block rating, and ensure the NEMA 1, 2, 3, 3R, 4, 6, 12, 13 or IP20/IP65 rating meets the environment’s ingress requirements.

Highlights

  • 30 mm metal operator fits standard panels
  • Multi-colour caps included for instant identification
  • NEMA 1, 2, 3, 3R, 4, 6, 12, 13 ratings suit harsh environments
  • IP65 protection resists dust and water jets
  • Self-grounding finger-safe terminals simplify safe wiring

Specifications

TypeLight Switch
BrandSCHNEIDER ELECTRIC
Size/Dimensions30mm
Color/FinishMulti
Color MappingMulti

Questions about this item

How can I confirm the 30 mm push button operator is functioning correctly after installation?

Press each coloured cap — black, red, green, yellow, orange, blue and white — and verify the maintained contact stays engaged until pressed again; the finger-safe terminals should show continuity in the latched position.

What components are included with the 9001KR11U and what must be sourced separately?

The operator ships with seven colour caps (black, red, green, yellow, orange, blue, white), a full metal guard, metal bezel and self-grounding finger-safe terminals; no separate contact blocks or legend plates are supplied.

Which NEMA or IP rating version should I select for a wash-down environment?

Choose the variant rated NEMA 4, 6 and IP65; these ratings withstand hose-directed water and temporary submersion, whereas IP20 and lower NEMA types do not.
