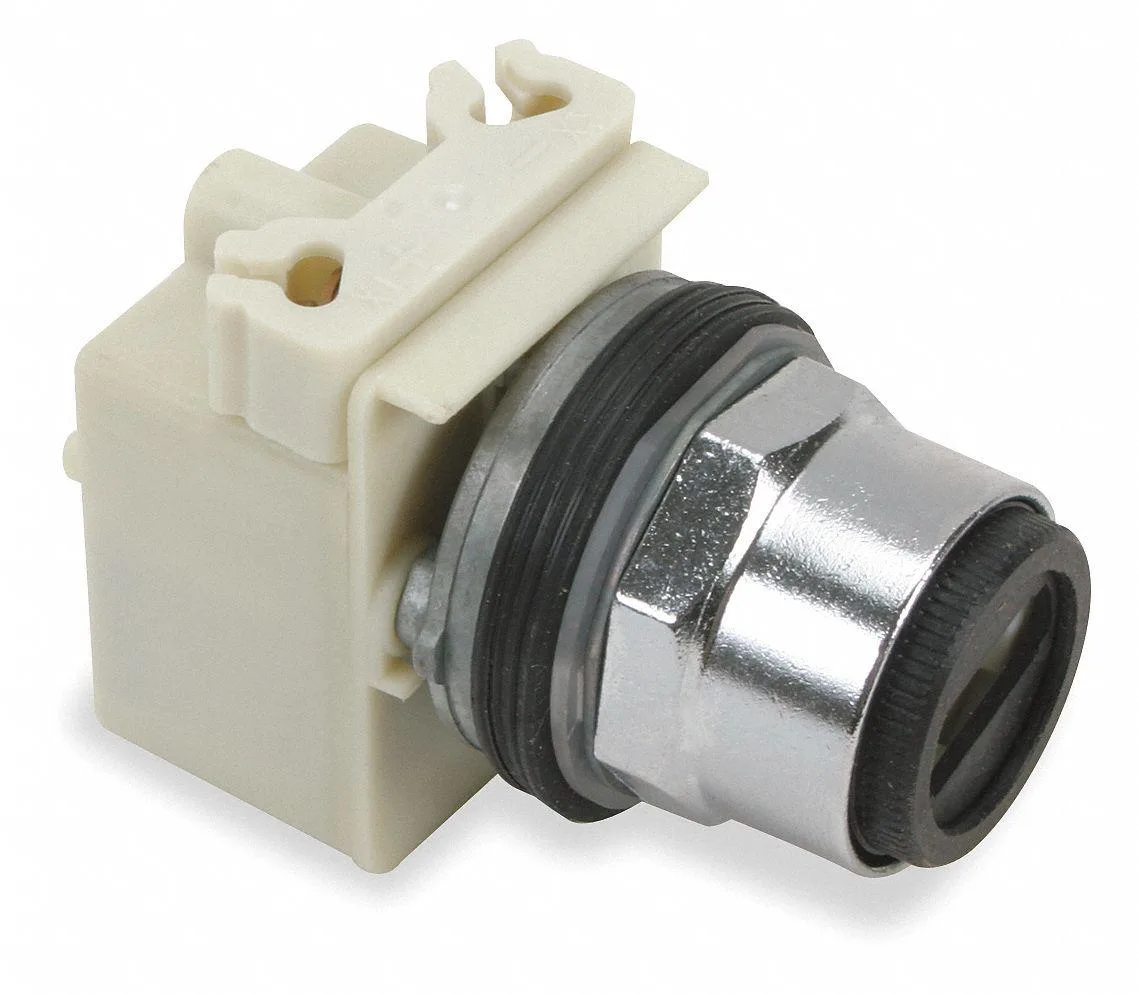

Schneider Electric 9001K11J1 illuminated selector switch head 30 mm 2 position
Illuminated 30 mm selector switch head with two maintained positions and IP65-rated chrome metal bezel
- Illuminated 30 mm head gives clear status in low light
- Two maintained positions stay set without spring return
- Metal chrome bezel resists wear in industrial environments
- Rated NEMA 1, 2, 3, 3R, 4, 12, 13 for dust and water protection
- IP65 seal blocks jets and ingress for reliable operation
30 mm Illuminated Selector Switch Head
This Schneider Electric 9001K11J1 head fits a 30 mm panel cutout and provides a two position maintained action for control circuits. The illuminated design allows clear status indication in low light conditions. It is intended for operators who need a durable, standards compliant selector for industrial machinery panels. Buyers who require a momentary return action or a three position cam should look elsewhere.
Simple Panel Mounting With Standard Cutout
Installation consists of inserting the head through a 30 mm hole and securing it with the matching operator base; the metal bezel and chrome finish resist corrosion in NEMA 1 12 13 2 3 3R 4 and 6 environments. A common issue is ordering the head without the separate operator base which is not included. Verify the cam type E matches your contact block sequence before wiring.
Maintains IP65 Seal Under Continuous Operation
The head holds an IP65 rating and meets CE CSA LR24590 Class 3211 03 and UL E42259 CCN NKCR standards during extended use. The metal bezel and robust cam construction prevent ingress of dust and water jets even when the selector is cycled repeatedly. No degradation of the sealing performance is expected over the service life.
Highlights
- Illuminated 30 mm head gives clear status in low light
- Two maintained positions stay set without spring return
- Metal chrome bezel resists wear in industrial environments
- Rated NEMA 1, 2, 3, 3R, 4, 12, 13 for dust and water protection
- IP65 seal blocks jets and ingress for reliable operation
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
How do I verify the 9001K11J1 selector head is functioning correctly after wiring it to a contact block?
With power applied, rotate the 30 mm chrome bezel through both maintained positions; the connected contact block should change state cleanly at each detent and the illuminated head should light steadily in the active position.
What components are included with the 9001K11J1 and what must be purchased separately?
The box contains only the illuminated selector switch head with its metal chrome bezel rated IP65 and NEMA 1, 2, 3, 3R, 4, 6, 12, 13; you must buy a compatible contact block, light module and any mounting hardware separately.
Which version of the 9001K11J1 should I choose for a maintained two-position application?
The 9001K11J1 is specifically the maintained/maintained action model with Cam E, 30 mm mounting, IP65 sealing and certifications CE, CSA LR24590 Class 3211 03 and UL E42259 CCN NKCR.
