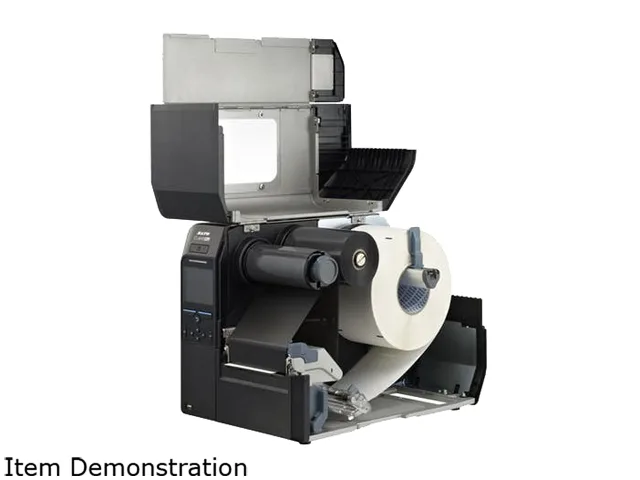

Rectangular industrial label printer in dark grey with full-colour LCD screen and media compartment visible

Sato

Sato WWCLP1001-NAR CL4NX Plus 203 dpi 41 label printer

SKU CH-36RF-X2N0M MPN WWCLP1001-NAR

An industrial thermal-transfer and direct-thermal label printer printing at 14 ips with 203 dpi resolution and RFID encoding

  • Print TechnologyDirect Thermal/Thermal Transfer Printer
  • Printer TypeIndustrial
  • Print Speed14 ips
  • Max Resolution(B&W)203 dpi (8 dots/mm) 305 dpi (12 dots/mm) 609 dpi (24 dots/mm
  • Fonts Included10 Bitmap SATO Fonts, 15 Scalable SATO Fonts, MultiNational
  • Barcode TypeLinear Code 39, Code 93, Code 128, CODABAR (NW7), EAN8/13, G
  • High-speed output at 14 inches per second
  • 203 dpi resolution for clear barcode detail
  • Industrial design handles heavy-duty label rolls
  • Supports 47 languages with 25 built-in fonts
  • Seamless RFID encoding for smart label workflows

Industrial Thermal Transfer Printer

The Sato CL4NX Plus WWCLP1001-NAR is an industrial-grade barcode and label printer built for high-volume environments. It combines direct thermal and thermal transfer technologies in a single unit. The 203 dpi resolution delivers clear output for standard logistics and compliance labelling. Integrated LAN, USB, serial and Bluetooth interfaces simplify network deployment.

Suited for Warehouse and Logistics Teams

Operations that need fast, accurate label production with RFID encoding will benefit from the 14 ips print speed and seamless RFID capability. The large media and ribbon capacity reduces reload frequency during continuous shifts. Buyers who require higher resolution graphics or compact desktop form factors should consider alternative models.

Capacity and Media Headroom

The printer accepts ribbon rolls up to 600 m long on a 25.4 mm core with widths from 39.5 mm to 128 mm. Media rolls up to 90 mm diameter are supported across continuous, die-cut, linerless, fan-fold, tag and ticket types. The 30 percent larger ribbon and 80 percent greater label capacity extend run time between changeovers. Print quality remains consistent until media or ribbon is exhausted.

Highlights

  • High-speed output at 14 inches per second
  • 203 dpi resolution for clear barcode detail
  • Industrial design handles heavy-duty label rolls
  • Supports 47 languages with 25 built-in fonts
  • Seamless RFID encoding for smart label workflows

Specifications

BrandSato
ModelWWCLP1001-NAR
Print TechnologyDirect Thermal/Thermal Transfer Printer
Printer TypeIndustrial
Print Speed14 ips
Max Resolution(B&W)203 dpi (8 dots/mm)
305 dpi (12 dots/mm)
609 dpi (24 dots/mm)
Fonts Included10 Bitmap SATO Fonts, 15 Scalable SATO Fonts, MultiNational Language Support (47 Languages/Unicode),
Single and Double Byte Fonts (Korean, Chinese, Japanese)
Barcode TypeLinear
Code 39, Code 93, Code 128, CODABAR (NW7), EAN8/13, GS1-DatabarTM, GS1-128 (UCC/EAN128), Interleaved 2/5, Industrial 2/5, JAN 8/13, Matrix 2/5, MSI, Bookland, PostnetTM, UPC-A/E
2D Symbologies
PDF417, Micro PDF, Maxi Code, GS1 Data Matrix, QR Code, Micro QR Code and Composite Symbologies, Aztec
RFID EncoderSeamless RFID encoding
Ribbon CharacteristicsLength
1,968.5' (600m) on 1" (25.4mm) ID Core
Width
1.55" - 5.04" (39.5 - 128mm)
Roll Diameter
Maximum 3.54" (90.0mm)
Wind
Face-in/Face-out, No Setting Change Required
Media TypeRoll (Continuous, Die-cut, Linerless), Fan-fold, Tag, Ticket
Dimensions12.64" x 10.67" x 18.00"
Weight33.28 lbs.
Shipping weight17.69 kg
Package size457 × 330 × 305 mm

Questions about this item

What label roll core size and ribbon length does the CL4NX Plus 203 dpi 41 require?

The printer accepts ribbon rolls up to 1,968.5 feet (600 m) on a 1-inch (25.4 mm) core and media widths from 1.55 to 5.04 inches (39.5 to 128 mm).

Will the CL4NX Plus 203 dpi 41 work with my existing Zebra or Datamax label formats?

Yes, the unit includes pre-installed competitive printer language emulations so it can interpret Zebra ZPL and Datamax DPL commands without format changes.

How can I verify the CL4NX Plus 203 dpi 41 is printing at the correct 203 dpi resolution after setup?

Print a test label from the full-colour LCD menu and measure the barcode module width; at 203 dpi each module should be approximately 8 dots per mm.
