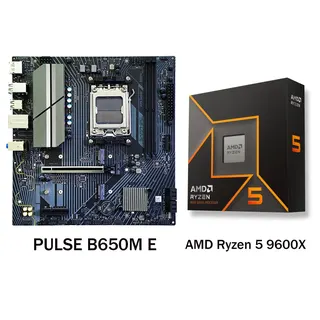

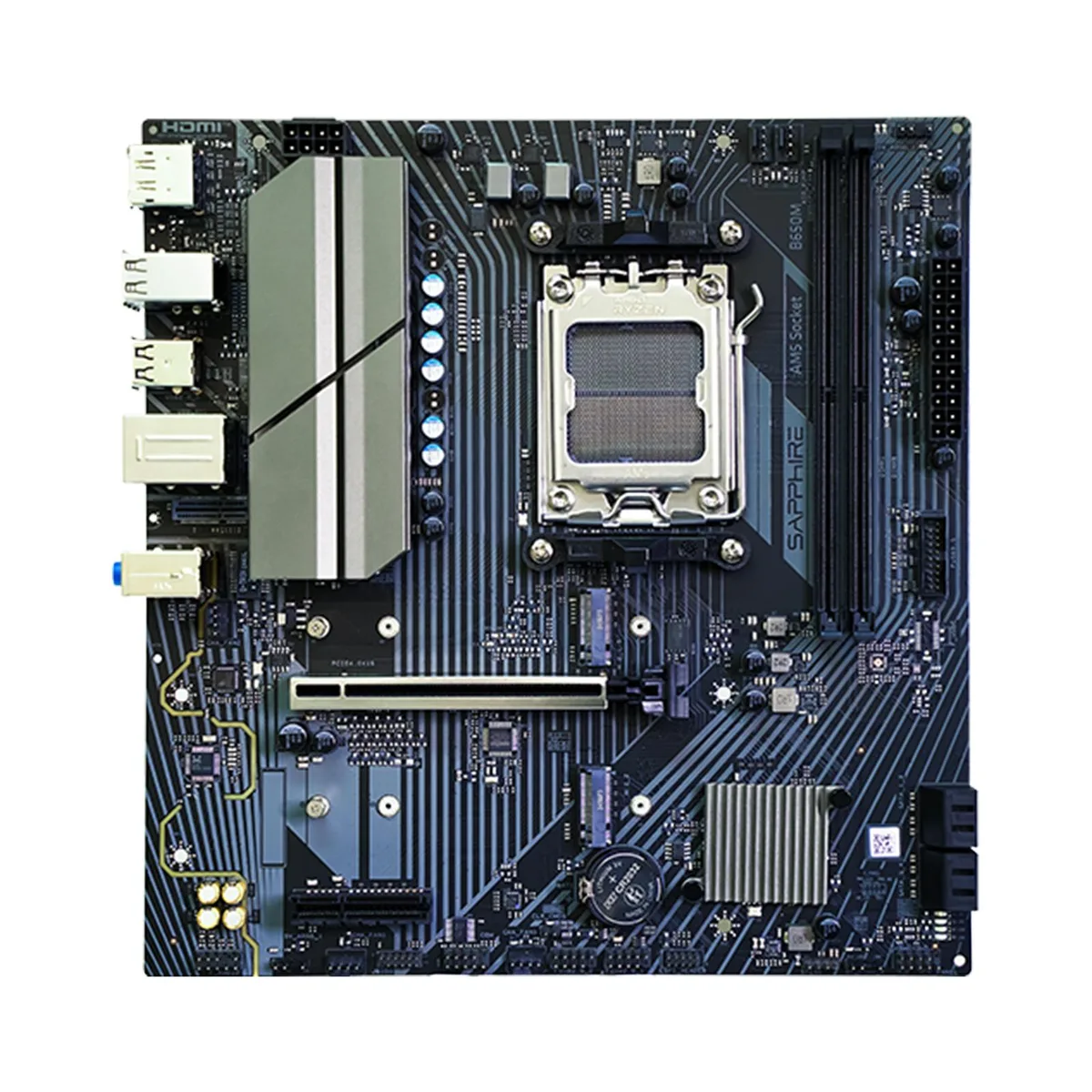

Sapphire PULSE B650M E micro-ATX board with Ryzen 5 9600X CPU, dark heatsinks and silver accents

Sapphire Tech

Sapphire Tech PULSE B650M E AM5 Motherboard & Ryzen 5 9600X CPU Combo

SKU CH-NGVJ-YDDDY

A B650E micro-ATX board paired with a 6-core Ryzen 9600X, 7+2+1 phase VRM, DDR5 8000+ OC support, PCIe 5.0 M.2, HDMI 2.1, and Wi-Fi 6

  • ChipsetAMD B650E
  • HDMI1 x HDMI
  • DisplayPort1 x DisplayPort

model PULSE B650M E + AMD Ryzen 5 9600X

Show 2 more configurations
  • Zen 5 architecture lifts 1% low FPS by 23% in 1440p gaming benchmarks
  • DDR5 memory validated at 8000+ MHz OC with EXPO/XMP profiles for maximum frame rates
  • PCIe 5.0 M.2 slot delivers 14GB/s throughput for next-gen NVMe storage
  • 7+2+1 phase VRM with 60A DrMOS and 360g heatsink maintains stability under heavy loads
  • Integrated Wi-Fi 6 and 2.5G LAN cut online latency while HDMI 2.1 enables 4K 60Hz output

Zen 5 Gaming Bundle

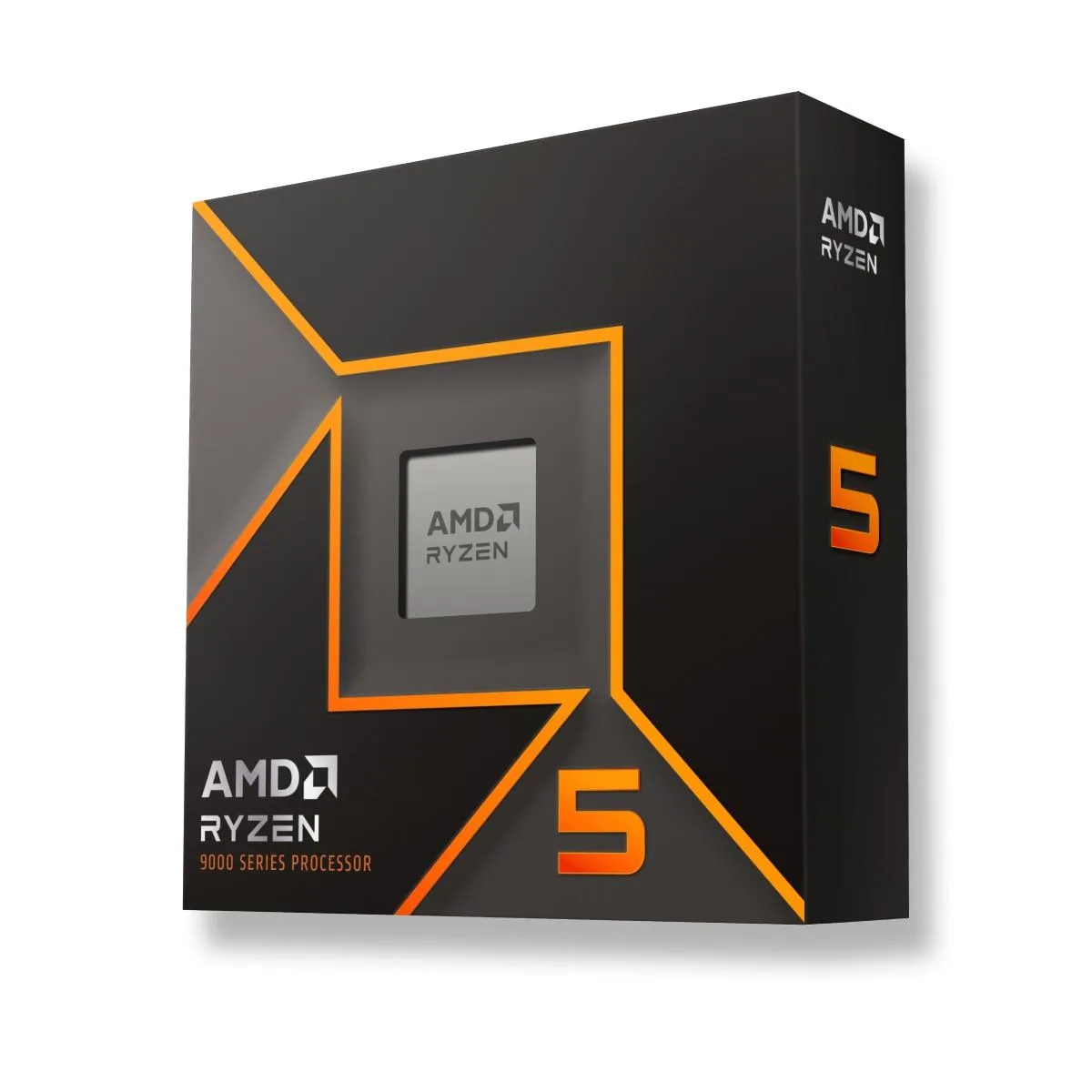

The Sapphire PULSE B650M E motherboard paired with a Ryzen 5 9600X 6-core CPU targets gamers building a mid-range AM5 system. It delivers a 5.4 GHz boost clock and 32 MB L3 cache for high frame rates at 1440p. The board uses the AMD B650E chipset and a 7+2+1 phase VRM with 60 A DrMOS for stable power delivery.

AM5 Platform Readiness

Your case must accept a micro-ATX board and provide clearance for a 360 g VRM heatsink alongside a graphics card up to three slots thick. The CPU requires an AM5-compatible cooler; existing AM4 coolers can be reused thanks to the same mounting pattern. Dual DDR5 slots support EXPO and XMP profiles validated up to 8000 MHz for memory overclocking.

Build Quality and Daily Connectivity

A substantial VRM heatsink with thermal pads keeps temperatures controlled during extended loads while the PCIe layout leaves room for large GPU coolers. Rear I/O includes HDMI 2.1 and DisplayPort 1.4 for 4K 60 Hz output without a discrete GPU, six USB 2.0 ports, two USB 3.2 Gen1 ports, 2.5 G LAN and Wi-Fi 6 antennas. Three ARGB headers allow synchronised lighting, and a front-panel USB-C header supports modern case designs.

Highlights

  • Zen 5 architecture lifts 1% low FPS by 23% in 1440p gaming benchmarks
  • DDR5 memory validated at 8000+ MHz OC with EXPO/XMP profiles for maximum frame rates
  • PCIe 5.0 M.2 slot delivers 14GB/s throughput for next-gen NVMe storage
  • 7+2+1 phase VRM with 60A DrMOS and 360g heatsink maintains stability under heavy loads
  • Integrated Wi-Fi 6 and 2.5G LAN cut online latency while HDMI 2.1 enables 4K 60Hz output

Specifications

BrandSAPPHIRE
ChipsetAMD B650E
HDMI1 x HDMI
DisplayPort1 x DisplayPort

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the board fit a standard micro-ATX case and leave room for a triple-slot graphics card?

The micro-ATX layout includes optimized PCIe spacing so a 3-slot GPU clears the primary x16 slot and the large VRM heatsink without interference.

Can I reuse my existing AM4 cooler on this AM5 socket?

The mounting pattern is compatible with AM4 coolers, letting you carry over a current air or liquid cooler without buying a new bracket.

What memory speed can I reach with a single EXPO kit?

Dual DDR5 slots are validated to 8000+ MHz OC via EXPO or XMP profiles for maximum gaming frame rates.
