Black steel full-motion outdoor TV mount with 25 inch extension arm

SANUS SYSTEMS

SANUS SYSTEMS VODLF125-B2 full-motion outdoor tv mount 40-85" 25" extension 120 lbs

SKU CH-KZ7Z-8BA0F MPN VODLF125-B2

Weatherproof full-motion mount holds 40-85" TVs up to 120 lbs with 25" extension, tilt, swivel and lockable security

  • NameFull Motion Outdoor
  • Install LocationWall
  • Mount StyleFull Motion
  • MaterialSteel
  • ColorBlack
  • MovableYes
  • Weatherproof build with corrosion-resistant coating and stainless-steel hardware for outdoor durability
  • 25-inch full-motion extension allows flexible viewing angles and easy cable access
  • Motion lock knobs hold the TV firmly in any chosen position
  • UL certified construction supports up to 120 lbs for screens from 40 to 85 inches

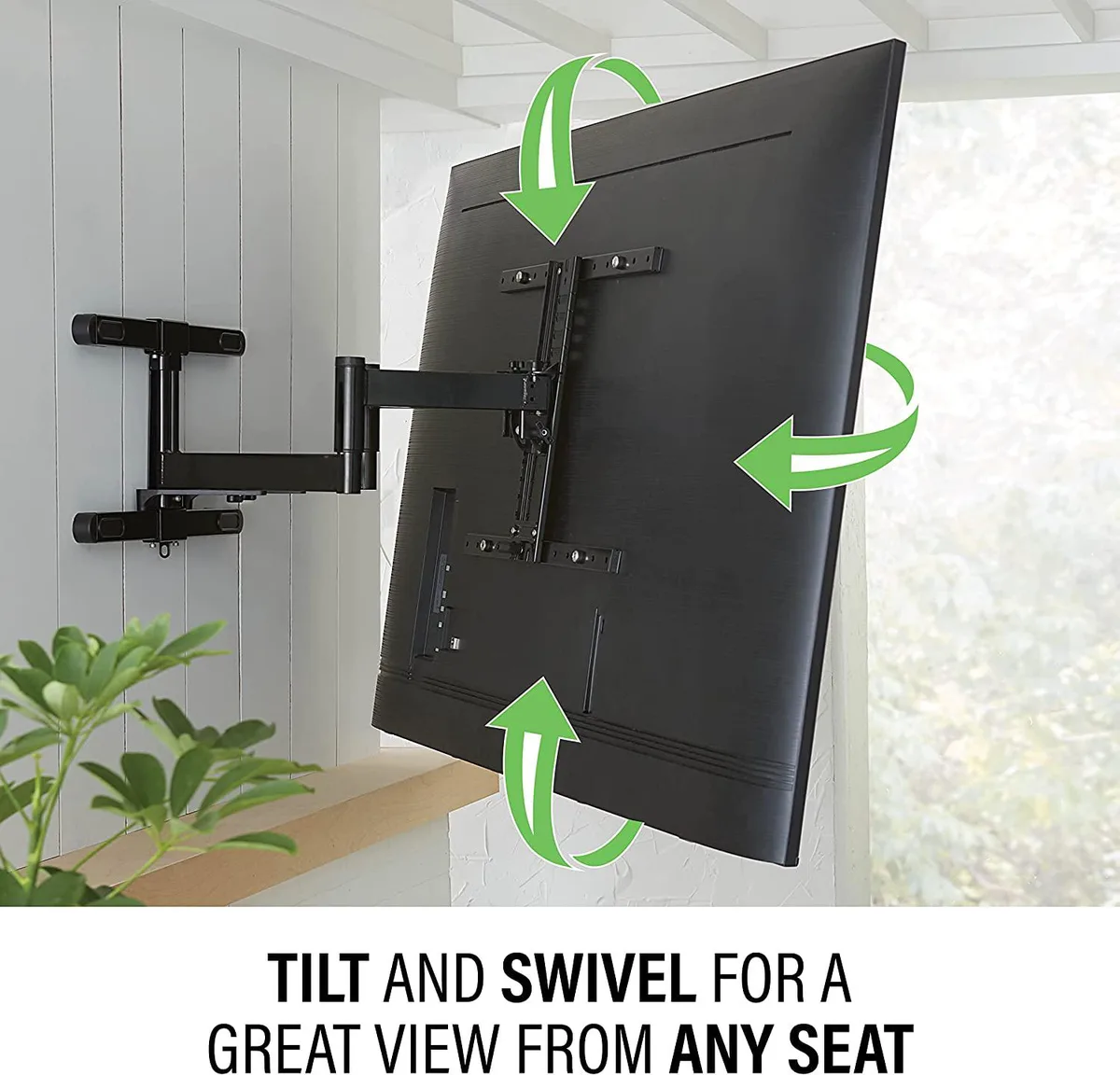

  • Virtual Axis fingertip tilt provides 7 to -13 degree adjustment to reduce glare

Outdoor full-motion mount for 40-85 inch TVs

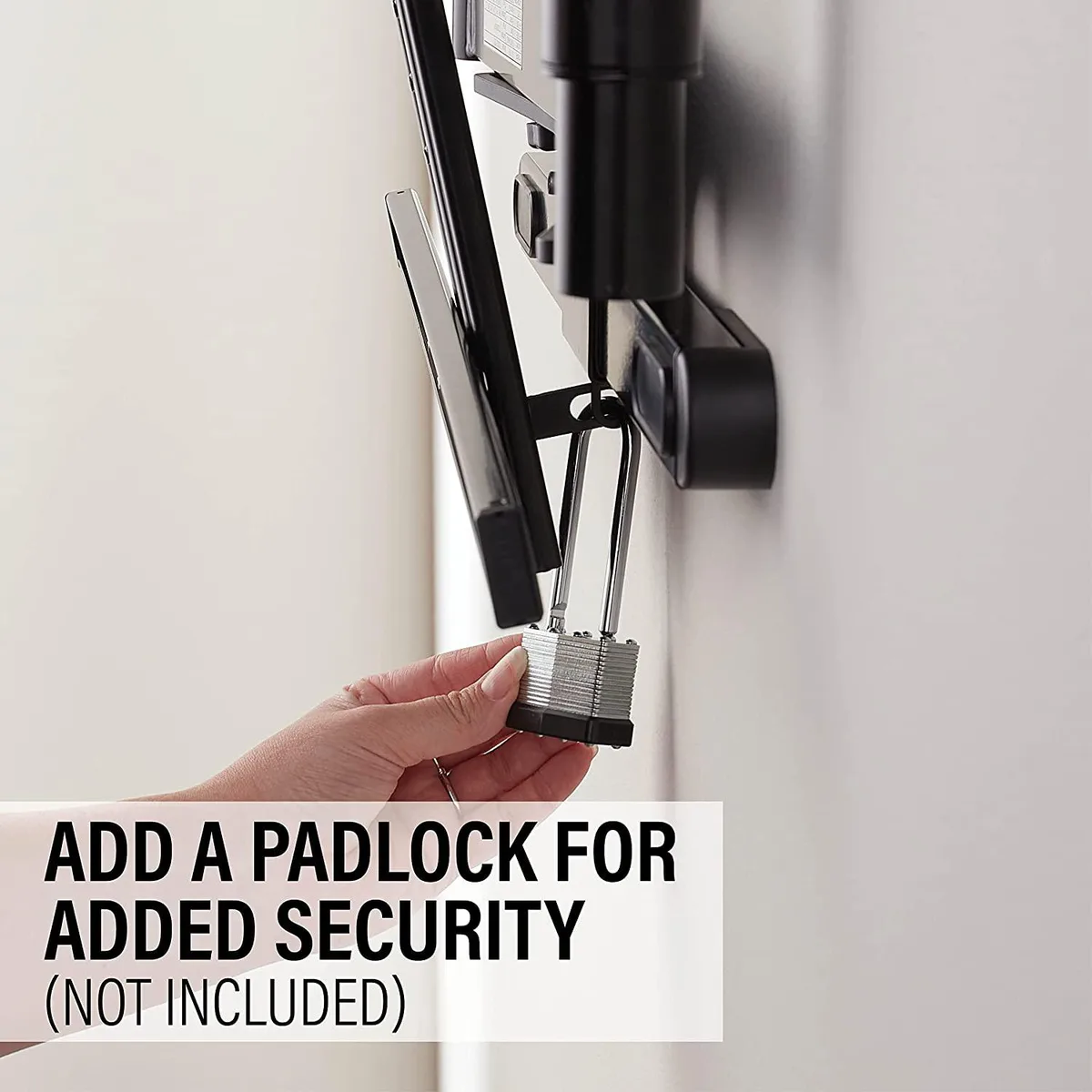

The Sanus VODLF125-B2 is a weatherproof steel bracket designed for exterior walls. It accepts flat-panel TVs from 40 to 85 inches and supports a maximum load of 120 lbs. UL certification and stainless-steel hardware confirm suitability for permanent outdoor installation. Lockable motion knobs and padlock holes add security in exposed locations.

25 inch extension and VESA 100x100 to 600x400

The arm extends 25 inches from the wall for cable access and flexible viewing, then retracts to a slim 2.74 inch profile. Tilt ranges from 7 to -13 degrees and swivel covers 44 degrees each side using Virtual Axis Fingertip Tilt technology. VESA patterns from 100x100 up to 600x400 mm are supported, while screens heavier than 120 lbs or larger than 85 inches exceed the rated capacity.

Wall mounting with integrated level and cable

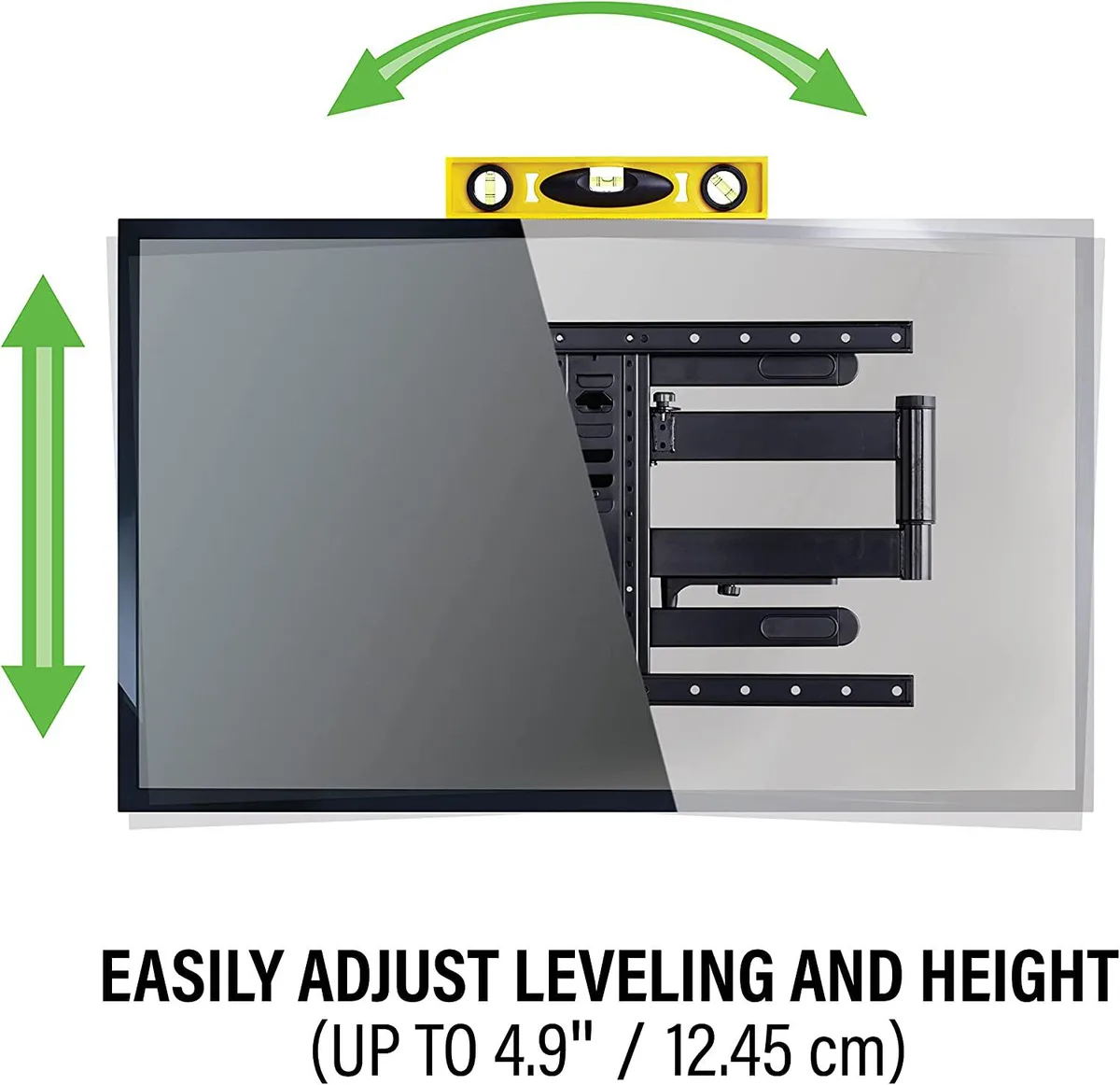

The mount attaches directly to a wall and includes a built-in level for accurate installation. Height can be fine-tuned up to 4.9 inches (12.45 cm) after hanging. Internal cable routing keeps connections tidy during full extension. Buyers needing ceiling mounting, non-VESA hole patterns, or support for displays above 120 lbs will require a different solution.

Highlights

  • Weatherproof build with corrosion-resistant coating and stainless-steel hardware for outdoor durability
  • 25-inch full-motion extension allows flexible viewing angles and easy cable access
  • Motion lock knobs hold the TV firmly in any chosen position
  • UL certified construction supports up to 120 lbs for screens from 40 to 85 inches
  • Virtual Axis fingertip tilt provides 7 to -13 degree adjustment to reduce glare

Specifications

BrandSANUS SYSTEMS
SeriesVisionMount
ModelVODLF125-B2
NameFull Motion Outdoor
Install LocationWall
Mount StyleFull Motion
MaterialSteel
ColorBlack
MovableYes
TV Size Capacity< 80"
TV Weight CapacityMax. load 120 lbs.
VESA CompatibleYes
Distance from Wall2.74
Swivel Range44/-44
Tilt Range7/-13
UL CertifiedYes
Level IncludedYes
Cable ManagementYes
FeatureLockable
Height17.01
Width26.97
Depth2.74
Weight21
Shipping weight9.53 kg
Package size685 × 432 × 70 mm

Questions about this item

Will the 25" extension arm clear my existing patio railing when the TV is pulled out?

The arm extends 25 inches from the wall, so measure from your mounting surface to the railing; if that gap is greater than 25 inches the TV will clear it.

How can I confirm the Virtual Axis Fingertip Tilt is calibrated after installation?

Use the included level to check the TV is horizontal, then gently tilt up to 7° or down to 13° — smooth resistance without drift means the mechanism is working.

Does the box contain the lag bolts for a wood stud wall or must I buy them separately?

The package includes the mount, stainless-steel hardware, a level and motion-lock knobs; lag bolts for wood studs are not included and must be purchased separately.
