Samlex DC-2000-KIT 2000W Inverter Install Kit 200A 12V 24V 10ft cables

Samlex DC-2000-KIT install kit

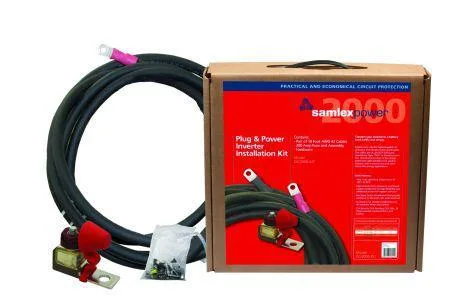

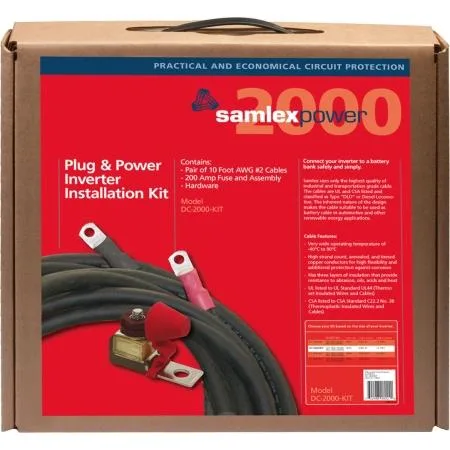

The Samlex DC-2000-KIT is a 200 A installation kit designed to connect a 2000 W inverter to a 12 V or 24 V battery bank. It includes a pair of heavy-duty cables and a fuse assembly for a plug-and-play connection. The kit suits installers who need a ready-made wiring solution for mobile or off-grid power systems. It is not for buyers who need cables rated above 200 A or longer than the supplied length.

200 A fuse and cable limits

The included 200 A fuse protects the inverter and battery bank from short-circuit damage. The cables are sized for the kit's 200 A rating, so continuous current must stay within that limit to avoid overheating or nuisance tripping. Voltage drop increases with cable length, and the fixed 10 ft runs set a practical boundary on how far the inverter can sit from the batteries. Systems requiring higher current or lower loss over distance will need larger conductors not provided here.

Capacity headroom for 2000 W loads

The kit supports inverter input power from 1000 W to 3400 W, covering 12 V and 24 V configurations. At 2000 W on a 12 V bank the draw approaches 170 A, leaving modest headroom before the 200 A fuse interrupts. On 24 V the same load draws roughly half the current, giving comfortable margin. Loads sustained near the upper wattage range will push the fuse close to its rating, so continuous operation at maximum output should be planned carefully.
