White fully modular ATX power supply with 140mm fan

SAMA

SAMA HAT-1000yzB2G 1000W ATX 3.1 power supply

SKU CH-BYSN-88916 MPN HAT-1000yzB2G

Fully modular 1000 W ATX 3.1 power supply with Cybenetics Gold efficiency, 12VHPWR 16-pin connector for RTX 40 and 50 series, 140 mm FDB fan and Japanese capacitors in a compact 150 mm depth

  • TypeATX 3.1 Compatible
  • Maximum Power1000 W
  • ModularYes
  • Fans1 x 140 mm
  • PFCActive
  • Main Connector24Pin

Option G1000W White

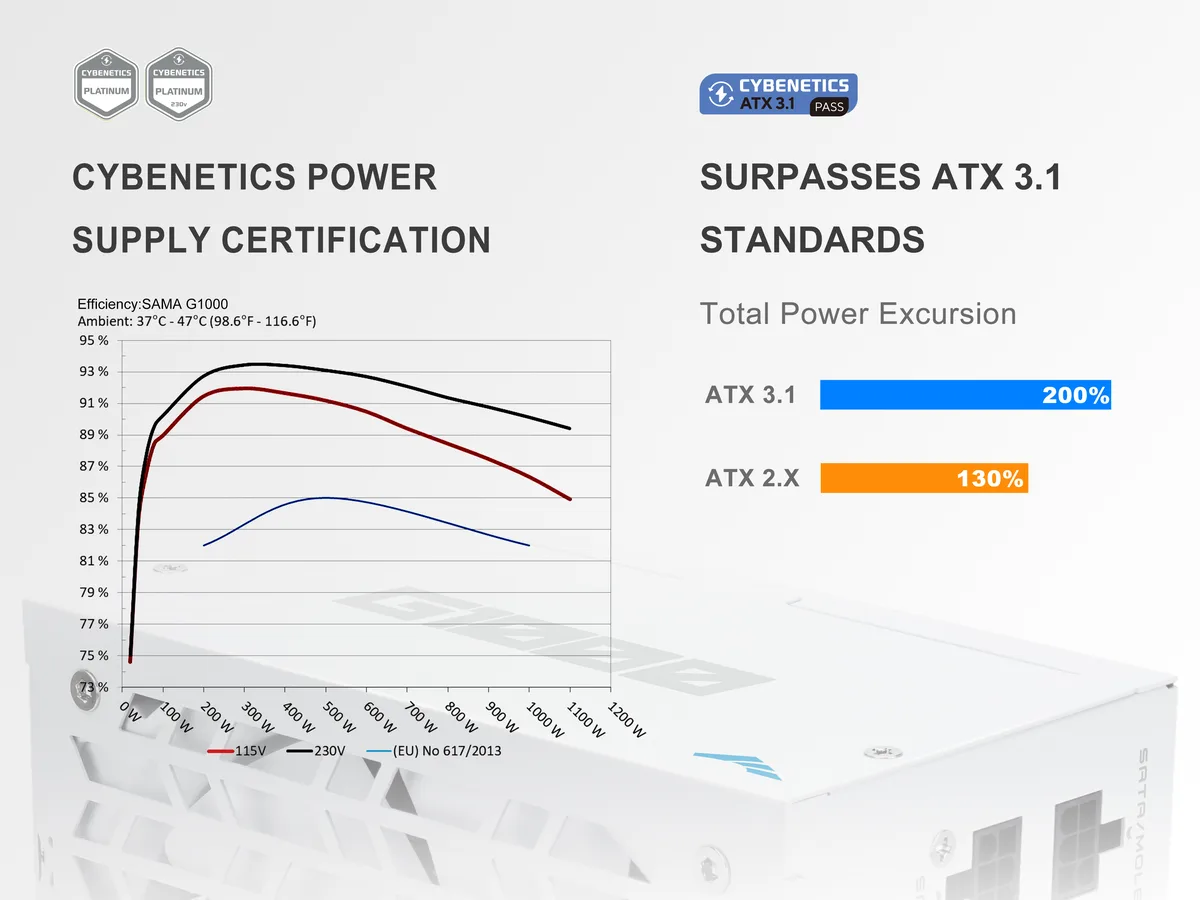

  • Cybenetics Gold certification delivers over 90% efficiency with minimal noise
  • ATX 3.1 and PCIe 5.1 ready with 12VHPWR 16-pin connector for up to 600W GPU power
  • Fully modular cabling lets you connect only the cables needed for a clean build

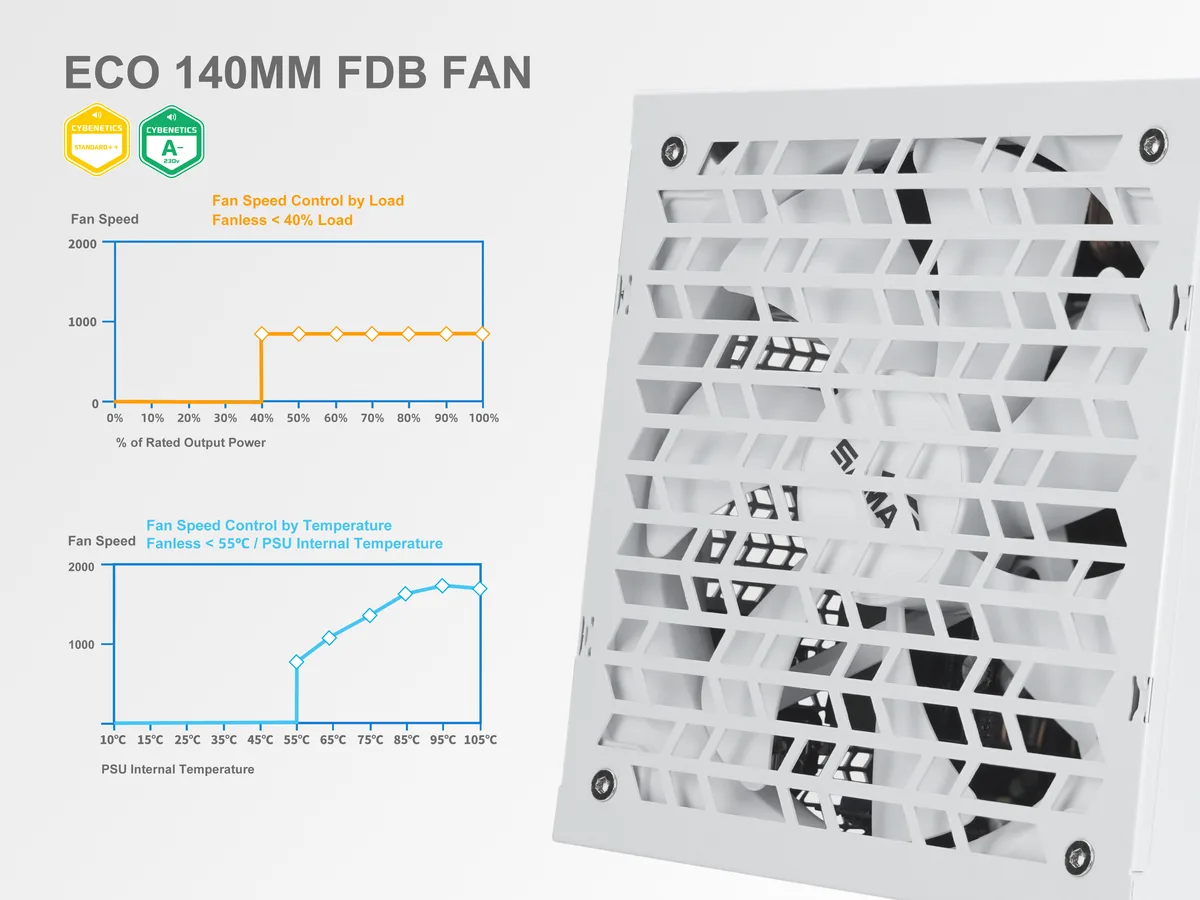

  • 140 mm FDB fan runs silently under 40% load in ECO mode
  • 100% Japanese capacitors ensure stable power delivery and long-term durability

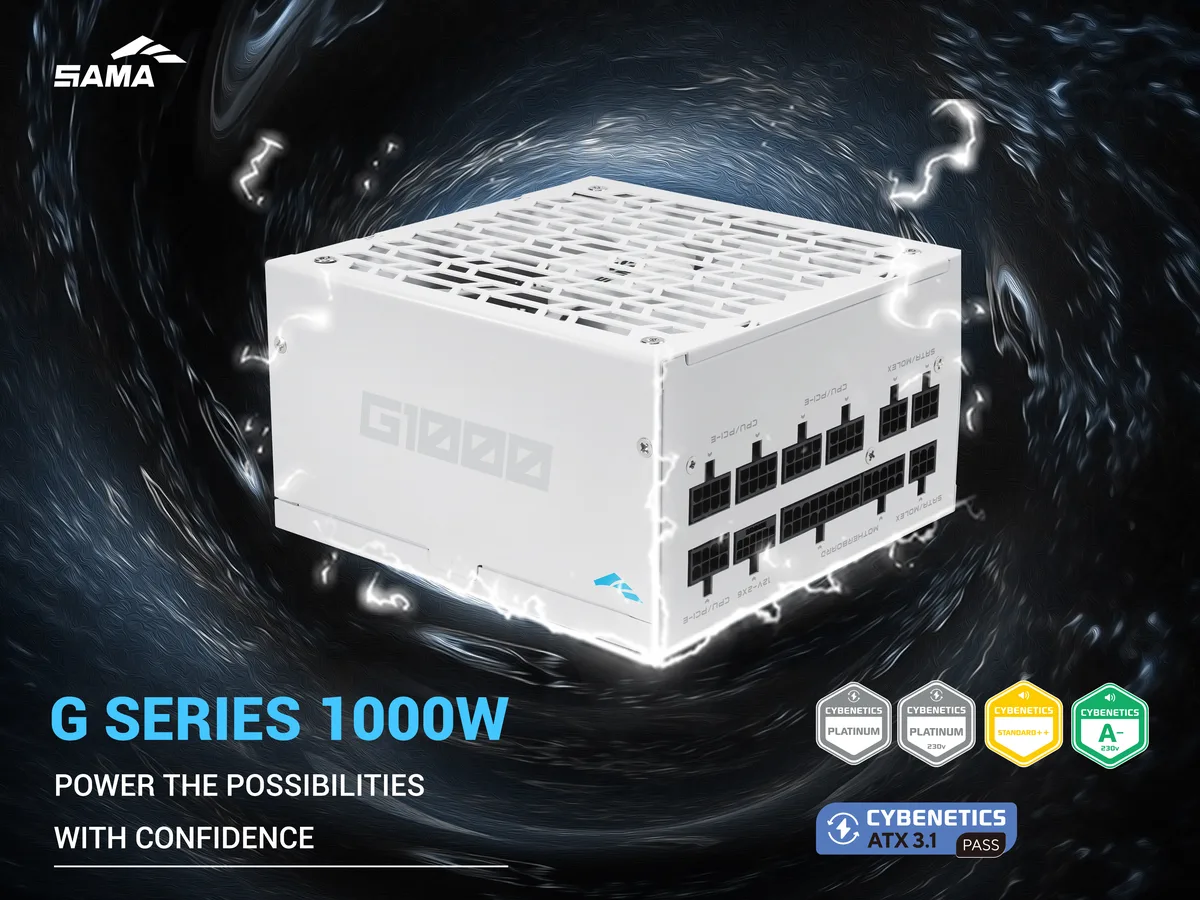

1000W ATX 3.1 power supply

The SAMA HAT-1000yzB2G delivers 1000W of continuous power through an ATX 3.1 compliant design. It targets high-performance gaming PCs and content creation workstations that demand stable, efficient energy delivery. Fully modular cabling keeps builds clean and airflow unobstructed. A 140mm FDB fan with ECO mode stays silent under light loads.

Upgrade from older ATX units

This unit replaces power supplies lacking the 12V-2x6 16pin connector required by modern RTX graphics cards. The jump is worth it when your GPU draws up to 600W through that single connector and you need Cybenetics Gold efficiency above 90%. Active PFC and a single +12V rail simplify the transition. Hold-up time exceeds 12ms at full load for ride-through protection.

Ideal for compact, quiet high-end builds

The 150mm depth fits most cases including small form factor chassis, suiting builders who prioritise low noise and Japanese capacitor reliability. It suits systems running RTX 40 or 50 series cards within the 1000W envelope. Users needing more than three 6+2-pin PCIe connectors or additional SATA power ports should look at something else.

Highlights

  • Cybenetics Gold certification delivers over 90% efficiency with minimal noise
  • ATX 3.1 and PCIe 5.1 ready with 12VHPWR 16-pin connector for up to 600W GPU power
  • Fully modular cabling lets you connect only the cables needed for a clean build
  • 140 mm FDB fan runs silently under 40% load in ECO mode
  • 100% Japanese capacitors ensure stable power delivery and long-term durability

Specifications

BrandSAMA
ModelHAT-1000yzB2G
SeriesG-Series
Part NumberG1000-WHGFF001-US
TypeATX 3.1 Compatible
Maximum Power1000 W
ModularYes
Fans1 x 140 mm
PFCActive
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector3 x 6+2-Pin
SATA Power Connector2
Hold-up Time> 12 ms @ 100% load
Efficiency> 90%
Over Voltage ProtectionYes
Overload ProtectionYes
Input Voltage100 - 240 V
Output1000W
MTBF>100,000 Hours
Connectors1 x 24 pin ATX
ColorWhite
Max PSU Length150 mm

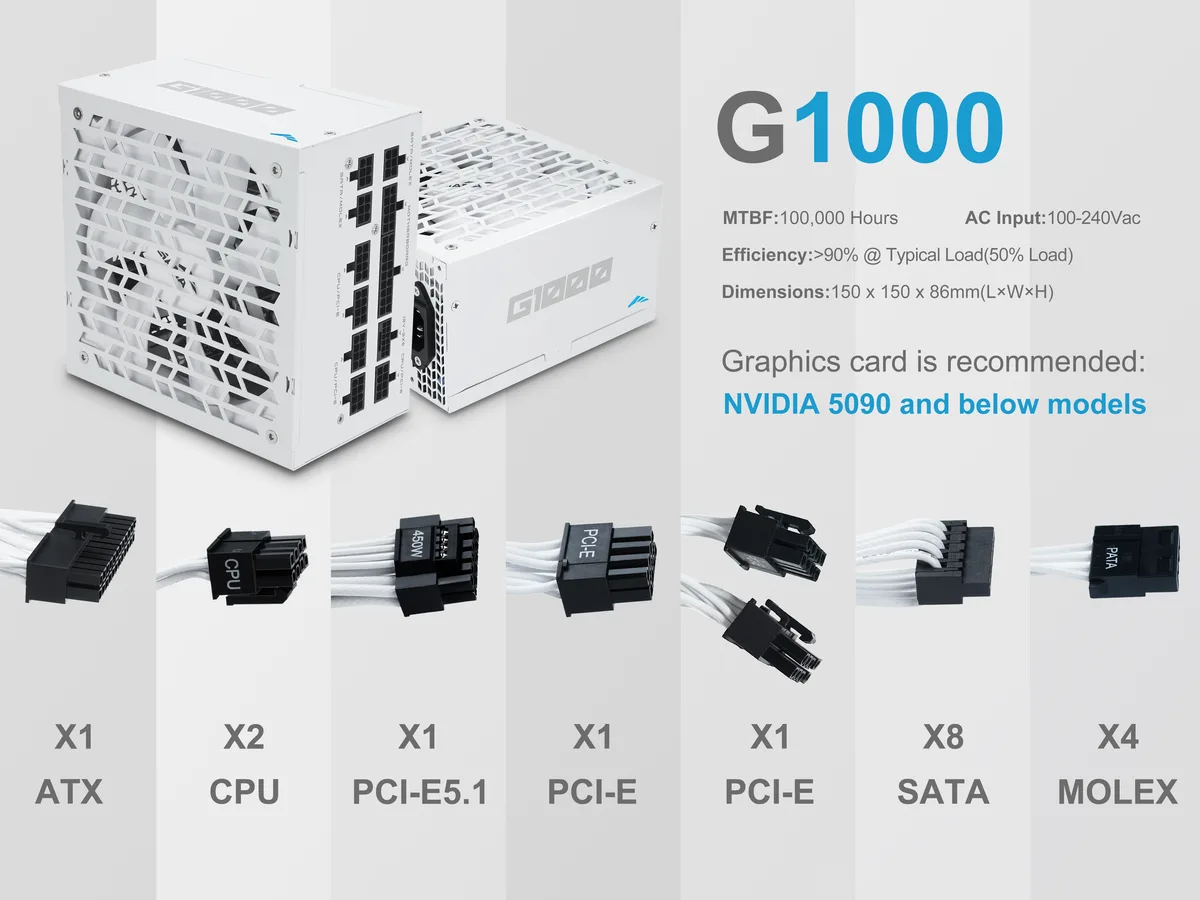

Cable Spec1x MB ATX 24Pin 550mm
2x CPU (4+4)Pin 700mm
3x PCI-E (6+2)Pin 600mm
1x 12V-2x6 (12+4)Pin 600mm
2x (SATA+SATA+SATA+SATA) 450+150+150+150mm
1x (Molex+Molex+Molex+Molex) 450+150+150+150mm
Energy-EfficientCybenetics Certified
Top Fans Size140mm
Top Fans Bearing TypeFluid Dynamic Bearing
Shipping weight2.56 kg
Package size267 × 203 × 114 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What case clearance is needed for the 150 mm deep PSU?

The unit is 150 mm deep so it fits most standard ATX cases including compact builds; measure from the rear panel to any drive cage or motherboard tray to confirm at least 150 mm of free space.

How do I connect the 12VHPWR 16 pin cable for an RTX 40 or 50 series card and what step is often missed?

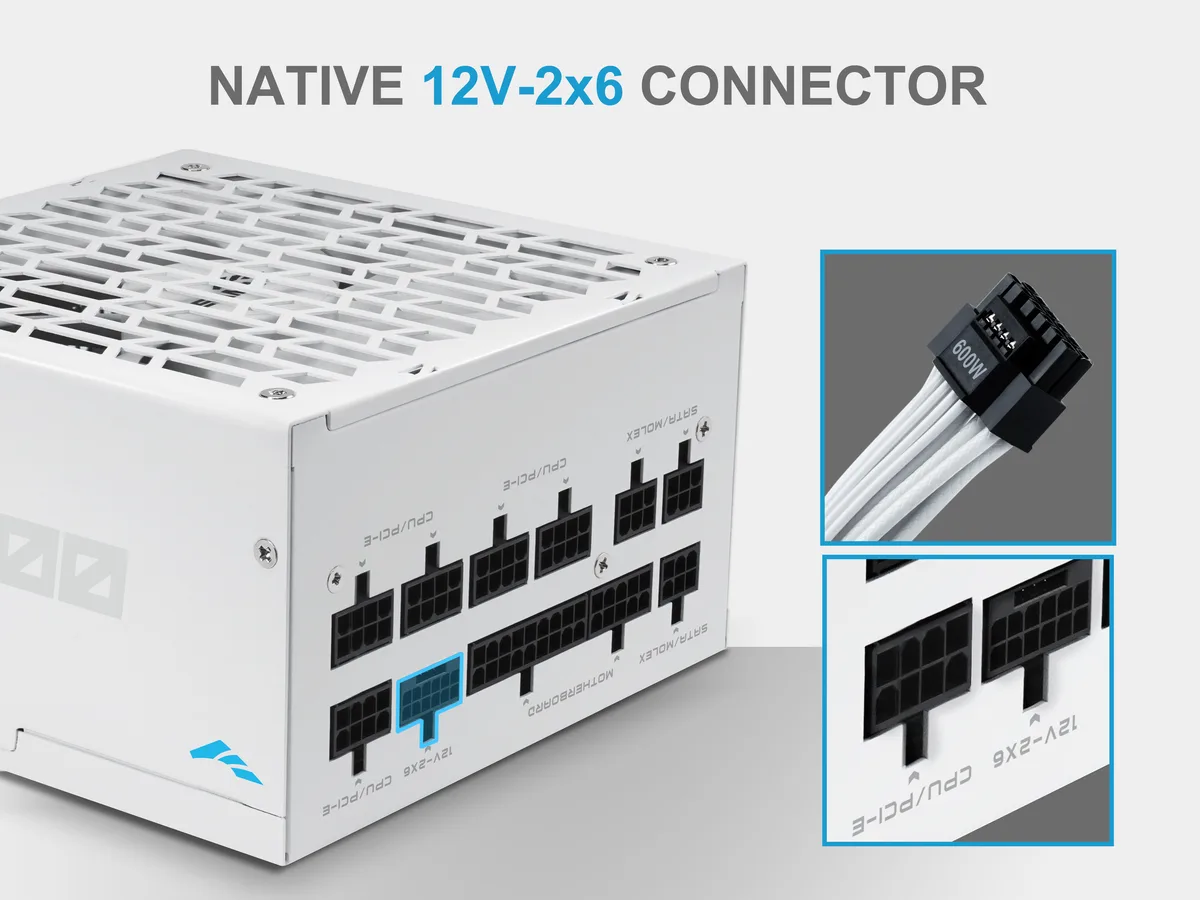

Plug the supplied 12VHPWR 16 pin cable directly into the PSU’s native 12V-2x6 port and seat it fully until the latch clicks; the common mistake is leaving a 1 mm gap which can cause melting.

When should the 140 mm FDB fan be cleaned and how?

Clean the fan intake every 6 to 12 months with short bursts of compressed air while holding the blades still; the fluid-dynamic bearing is sealed and does not need lubrication.
