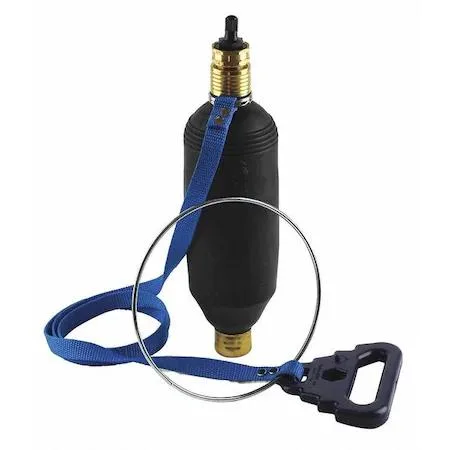

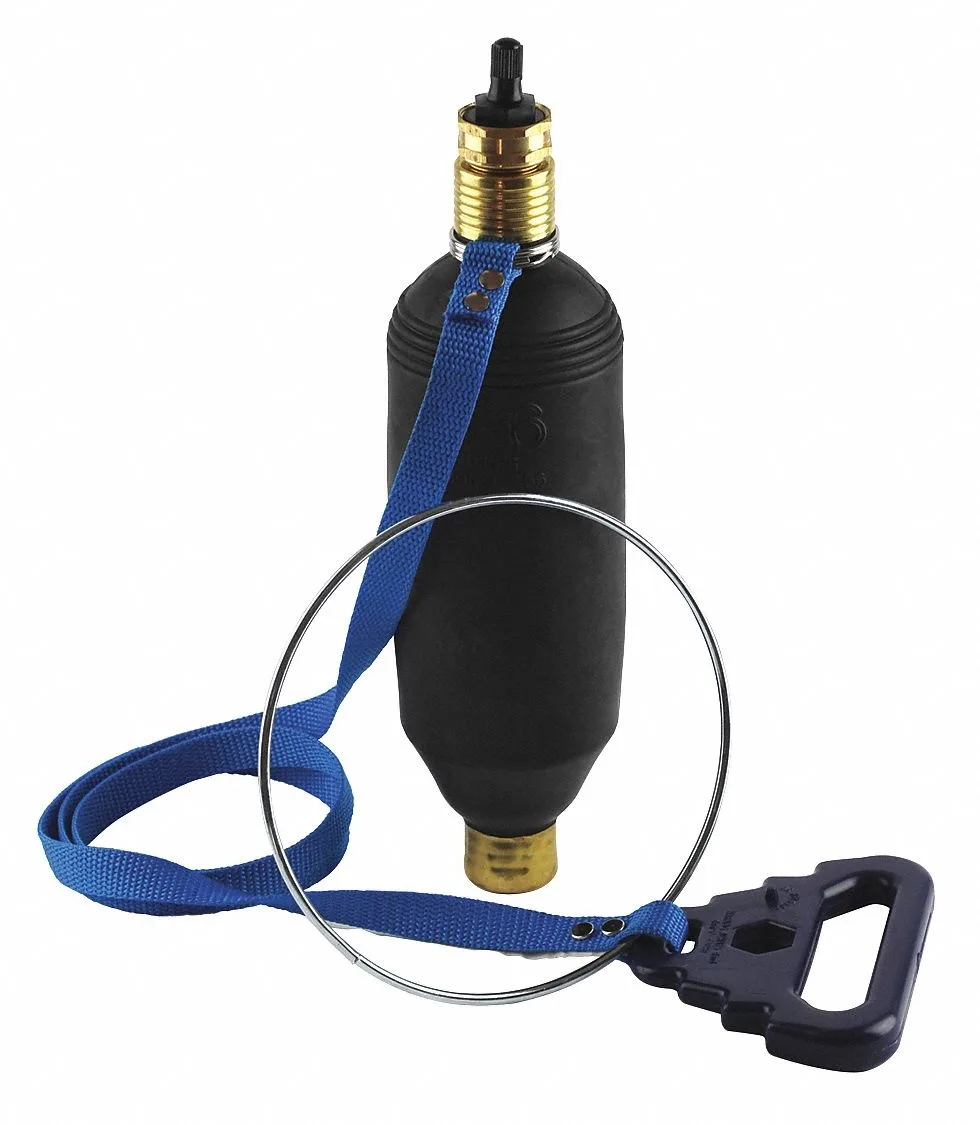

Black rubber pneumatic test plug with metal air valve and tether strap, deflated length twelve inches, diameter three point five inches

Safe-T-Seal

Safe-T-Seal TP46 pneumatic test plug 4 in to 6 in

SKU CH-3Z4B-YTPZ6

Pneumatic rubber test plug seals 4 in to 6 in pipes at up to 37 psi air or 30 ft water head

  • Tests pipes from 4 in to 6 in with a single plug
  • Inflates to 14.5 in for a tight seal
  • Holds 37 psi air or 30 ft water head
  • Deflates to 3.5 in for easy insertion
  • 25/64 in NPT port connects standard air lines

Test plug for 4 in to 6 in pipes

The Safe-T-Seal TP46 is a pneumatic test plug designed to seal pipes with an inside diameter from 4 in to 6 in. It uses a single inflation chamber and a 25/64 in female NPT air connection for pressurisation. Plumbers and maintenance crews use it for temporary line isolation during pressure testing or repair work.

Sustained pressure performance

The plug withstands a maximum back pressure of 37 psi with air and 30 ft of head with water. Its smooth body surface and handle-and-strap tether help maintain a consistent seal during extended test periods. The unit inflates from a 3.5 in deflated diameter to a 14.5 in inflated length, allowing it to engage the pipe wall securely.

Installation notes

Deflated dimensions of 3.5 in diameter by 12 in length allow insertion through standard clean-out openings. The single inflation chamber simplifies setup, but over-inflation beyond the rated pressures can damage the rubber body. California Proposition 65 warnings apply for cancer and reproductive-harm chemicals present in the material.

Highlights

  • Tests pipes from 4 in to 6 in with a single plug
  • Inflates to 14.5 in for a tight seal
  • Holds 37 psi air or 30 ft water head
  • Deflates to 3.5 in for easy insertion
  • 25/64 in NPT port connects standard air lines

Specifications

BrandSAFE-T-SEAL

Questions about this item

How much back-pressure can the TP46 hold when testing air lines all day?

The single-chamber plug is rated for 37 psi maximum air back-pressure, so it will maintain seal during extended pneumatic tests.

What air fitting do I need on my hose to inflate the 25/64 in NPT port?

You need a male 25/64 in NPT connector on your inflation hose to mate with the female port on the plug.

Will the 12 in deflated length let me insert the plug through a 4 in cleanout tee without removing the tee?

Yes, the deflated diameter is 3.5 in and the deflated length is 12 in, so it fits through a 4 in opening and existing tees.
