Sabrent
Sabrent Thunderbolt 4 Docking Station DS-T4MF

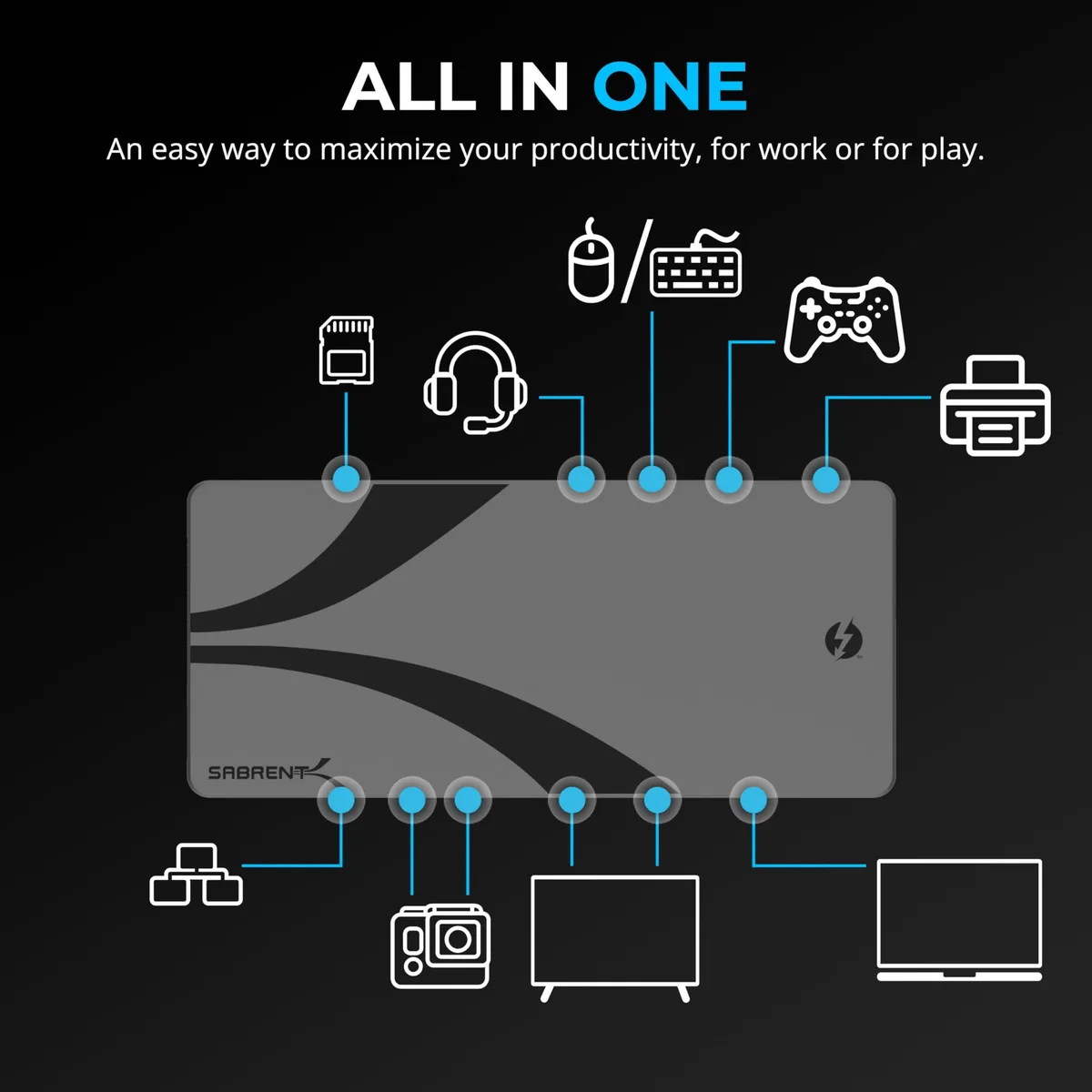

A Thunderbolt 4 docking station with dual TB4 ports, DP 1.4, HDMI 2.1, five USB ports, Gigabit Ethernet, audio jack and SD/TF card reader
- Up to 40Gbps bandwidth with Thunderbolt 4 and USB4 compliance
- Dual 8K@30Hz or 4K@144Hz display output via DP 1.4 and HDMI 2.1
- Three 10Gbps USB ports plus two 5Gbps USB-A ports for peripherals
- Gigabit Ethernet, 3.5mm audio jack and SD/TF card reader built in
- Works with Windows, macOS and Linux hosts over Thunderbolt 4 or USB4
Thunderbolt 4 Docking Station
The Sabrent DS-T4MF is a Thunderbolt 4 docking station built for laptop users who need a single-cable expansion hub. It adds dual Thunderbolt 4 ports, multiple USB ports, video outputs, wired networking, audio and card readers. The design suits professionals and creators who move between desk setups and want broad peripheral compatibility.
Ports and display headroom

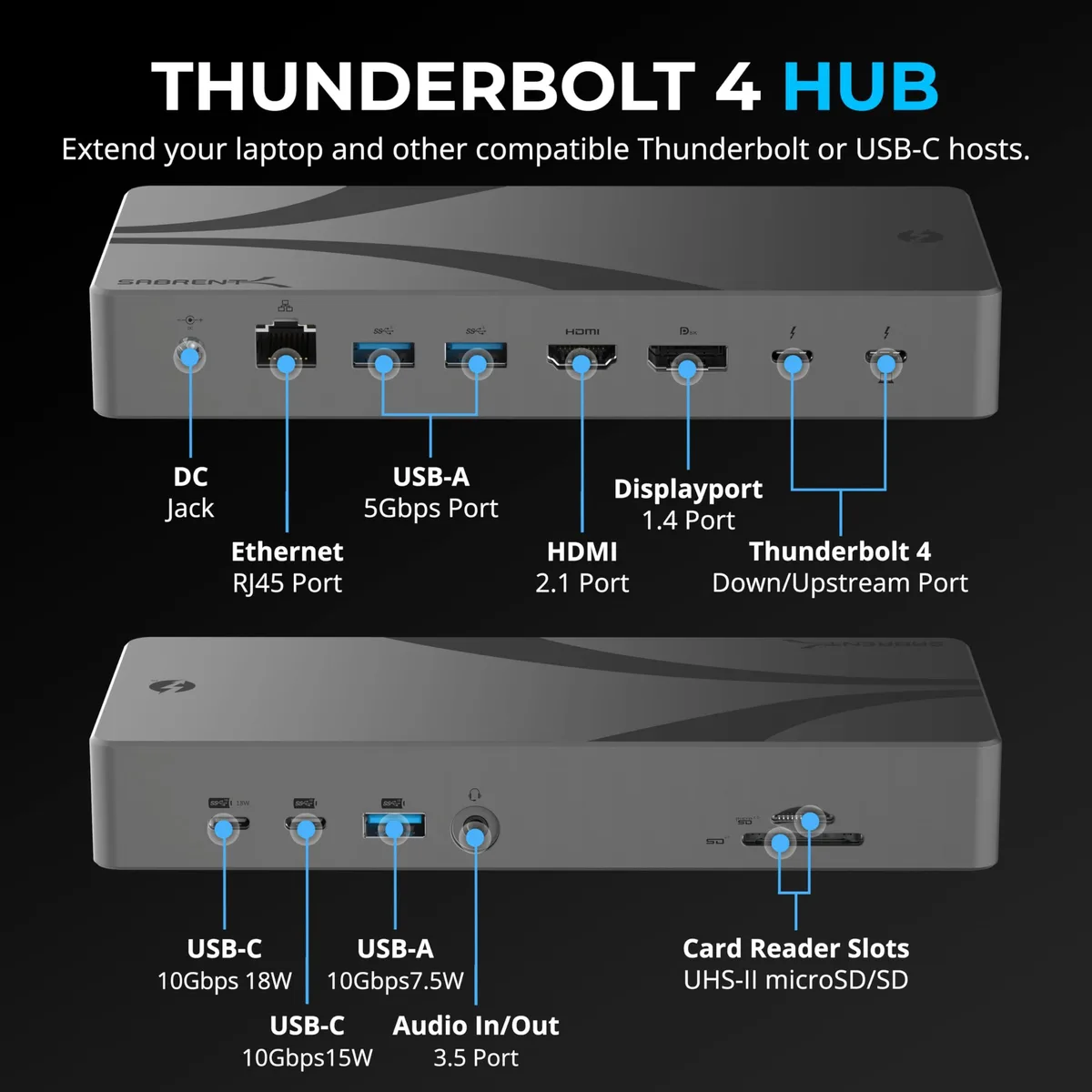

Three 10Gbps USB ports, two USB-C and one USB-A, deliver 7.5W or 18W each for storage or phone charging, while two 5Gbps USB-A ports handle standard accessories at 4.5W. Video outputs include DP 1.4 and HDMI 2.1 at up to 8K@30Hz and the downstream Thunderbolt 4 port at up to 8K@60Hz or 4K@144Hz with DSC. Dual 4K@60Hz via MST and triple 4K@60Hz on Windows are possible where the host allows. Gigabit Ethernet, 3.5mm audio and an SD/TF reader complete the I/O.
40Gbps Thunderbolt 4 upstream
The single specification that decides fit is the 40Gbps Thunderbolt 4 upstream connection to the host. It requires a Thunderbolt 4 or USB4 port on the laptop to unlock full bandwidth, dual 4K@60Hz MST and 8K@60Hz downstream video. Systems with only USB-C 10Gbps or 5Gbps alt-mode will not deliver the rated display modes or aggregate throughput.
Highlights
- Up to 40Gbps bandwidth with Thunderbolt 4 and USB4 compliance
- Dual 8K@30Hz or 4K@144Hz display output via DP 1.4 and HDMI 2.1
- Three 10Gbps USB ports plus two 5Gbps USB-A ports for peripherals
- Gigabit Ethernet, 3.5mm audio jack and SD/TF card reader built in
- Works with Windows, macOS and Linux hosts over Thunderbolt 4 or USB4
Specifications
No published specifications for this item yet.
Questions about this item
Will my USB 3.2 Gen 1 keyboard and mouse work on the 5Gbps USB-A ports?
Yes, the two 5Gbps USB-A ports are backward compatible with USB 3.2 Gen 1 devices such as keyboards and mice.
How can I confirm the 40Gbps Thunderbolt link is active after connecting the dock?
Check your operating system's Thunderbolt control panel; it will show a 40Gbps link width when the upstream port is negotiated correctly.
Does the box include the Thunderbolt 4 host cable and the power adapter?
The package contains the docking station, a Thunderbolt 4 cable for the upstream connection, and the external power supply required for operation.
