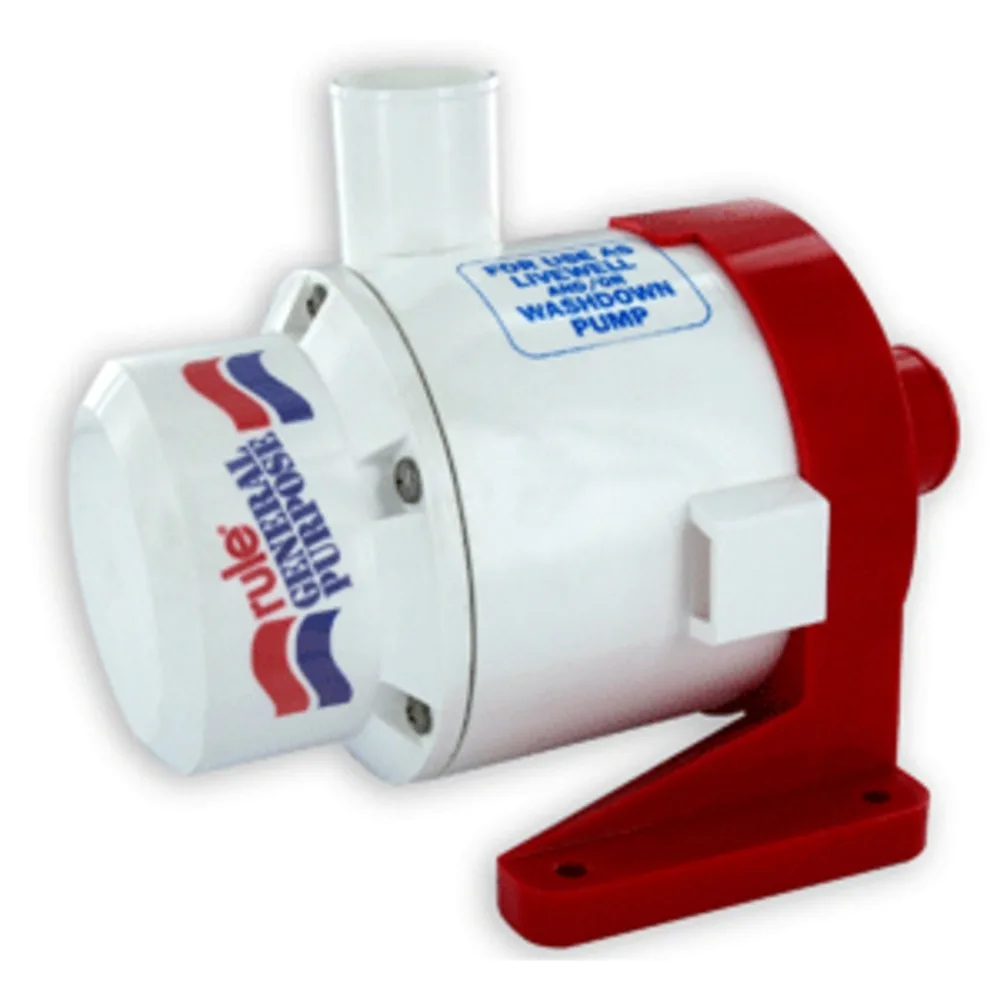

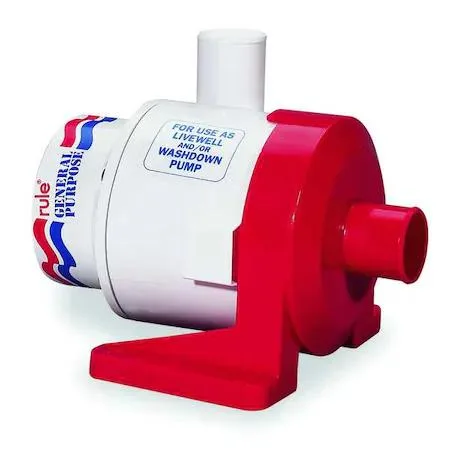

White plastic centrifugal pump with stainless shaft, 5.25 inches tall

Rule

Rule 17A Pump 3800 GPH 12V 25 ft Head

SKU CH-N7TS-A1Z2B MPN 17A

General-purpose centrifugal pump moves up to 3,800 gallons per hour at 1 foot of head and reaches 25 feet maximum head on 12 V DC power

  • TypeBreakroom Supplies
  • MaterialPlastic
  • Moves 3800 gallons per hour at 1 foot of head
  • Delivers water up to 25 feet of head
  • Runs on 12 volt DC power drawing 15.5 amps
  • Built with stainless steel shaft and PTFE seal
  • Compact 5.25 inch height fits tight spaces

Livewell pump for 12 V systems

The Rule 17A is a general-purpose end-suction centrifugal pump built for livewell circulation on 12 V DC electrical systems. It delivers a maximum flow of 3,800 gph at one foot of head and a shut-off head of 25 ft. The 33/1000 hp permanent-magnet motor draws 15.5 A and is designed for manual priming before each use.

Polyacetal housing with stainless shaft

A polyacetal plastic housing and stand resist corrosion while a stainless-steel shaft and PTFE seal handle continuous water contact. The hardwired electrical connection requires a direct 12 V supply and the 1-1/2 in discharge fits standard plumbing. Overall height is 5.25 in, so the pump fits in confined bilge or livewell compartments.

Manual priming and hardware included

The box supplies the pump body with integrated stand, stainless shaft and PTFE seal so no separate seal kit is needed. Because priming is manual, the operator must fill the volute before each start-up to avoid dry running. No controller, hose or wiring harness is bundled, so installers provide their own fused supply leads and discharge hose.

Highlights

  • Moves 3800 gallons per hour at 1 foot of head
  • Delivers water up to 25 feet of head
  • Runs on 12 volt DC power drawing 15.5 amps
  • Built with stainless steel shaft and PTFE seal
  • Compact 5.25 inch height fits tight spaces

Specifications

BrandRule
Model17A
TypeBreakroom Supplies
MaterialPlastic

Questions about this item

What flow rate does the 12V DC motor deliver at 1 foot of head?

The pump delivers a maximum flow rate of 3,800 gph at 1 foot of head with a 12V DC permanent magnet motor drawing 15.5 amps.

What discharge pipe size and overall height are required for installation?

The pump uses a 1 1/2 inch discharge pipe size and has an overall height of 5.25 inches with a polyacetal plastic housing and stand.

How is the pump wired and primed during setup?

The pump uses a hardwired electrical connection and requires manual priming before operation to ensure proper water flow.
