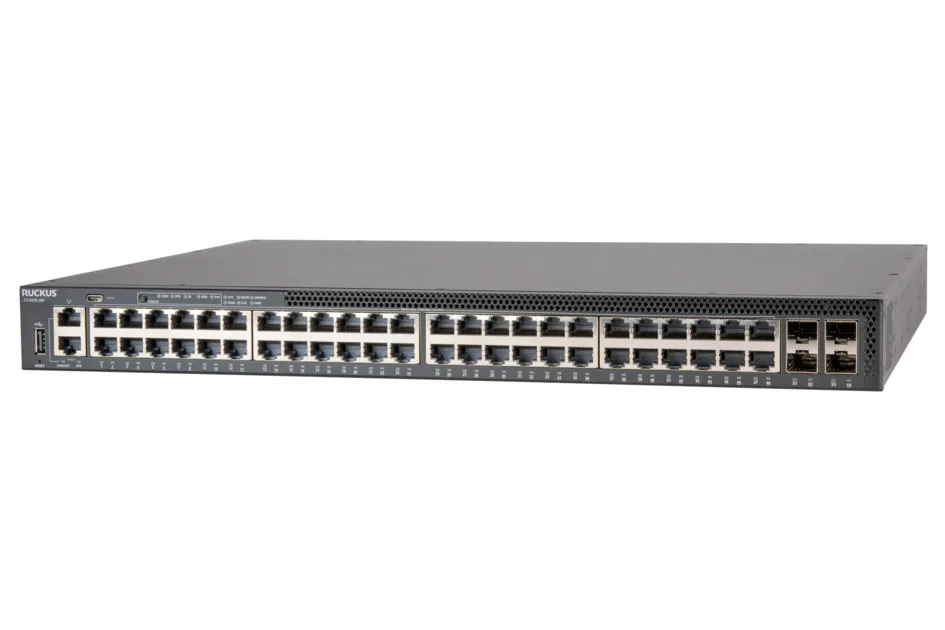

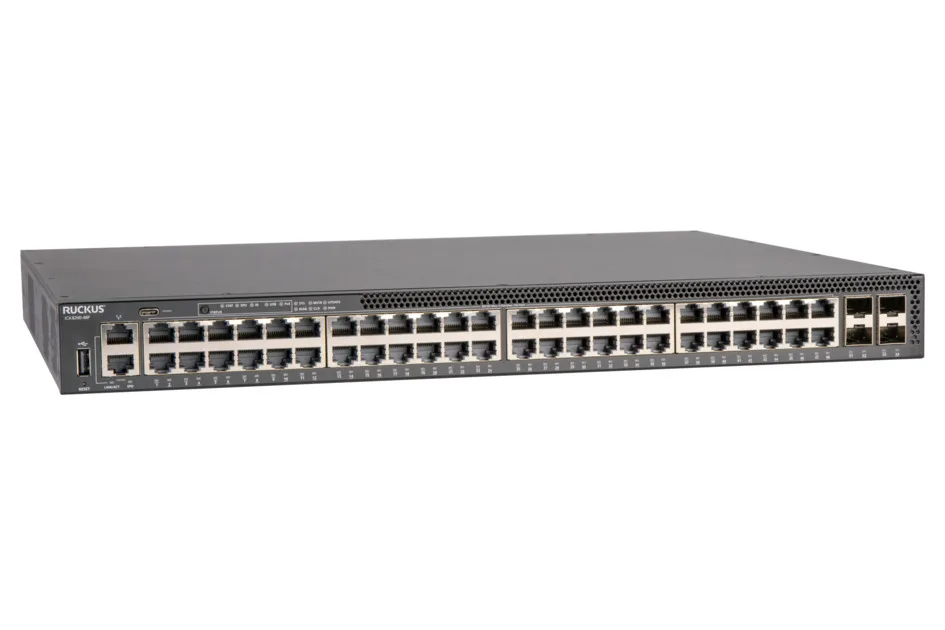

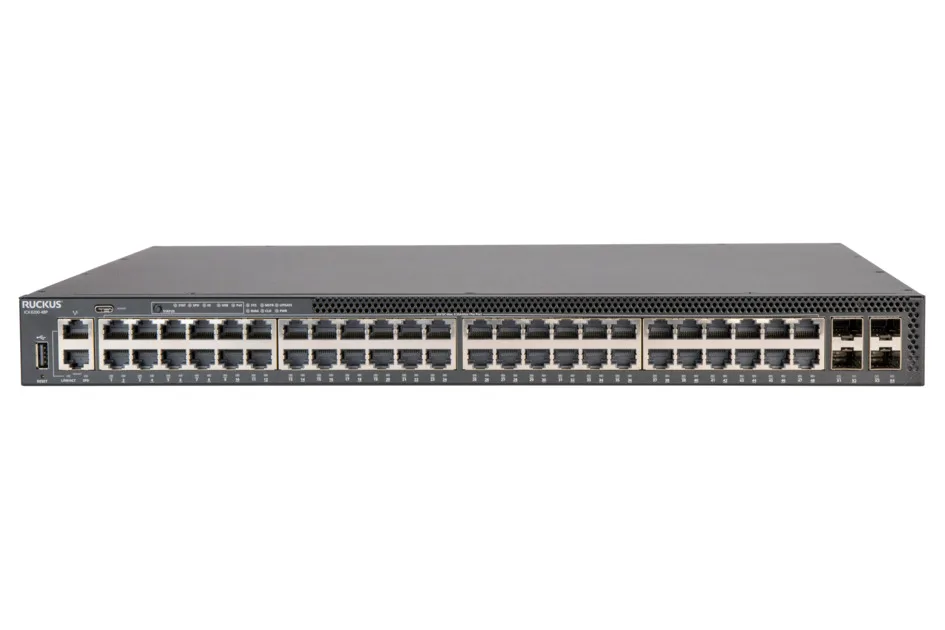

Ruckus ICX8200-48P 48-port PoE+ switch, black rack-mount chassis with front RJ-45 ports and SFP28 uplinks

RUCKUS WIRELESS

RUCKUS WIRELESS ICX8200-48P 48-port PoE+ network switch

SKU CH-WQ4A-MG214 MPN ICX8200-48P

48-port Gigabit PoE+ switch with 370 W power budget and four 25 GbE SFP28 uplinks for high-density Wi-Fi 6 access-point deployments

  • Primary Ports10/100/1000BASE-T Ports: 48 Interfaces: 48× 10/100/1000 Mbps
  • PowerPower Over Ethernet (PoE) Support: Yes PoE Power Consumption
  • TemperatureMin Operating Temperature: 0 Celsius Max Operating Temperatu

Class 48×10/100/1000 Mbps PoE+ Port

  • 48 PoE+ ports power Wi-Fi 6 access points and IoT devices
  • 370 W PoE budget supports dense wireless and endpoint deployments
  • Four 25 GbE SFP28 uplinks provide high-speed stacking and aggregation
  • Advanced Layer 3 routing enables flexible campus network designs
  • Operates reliably from 0 to 45 °C in enterprise environments

48-port PoE+ access switch

The RUCKUS ICX8200-48P provides 48 RJ-45 ports at 10/100/1000 Mbps with PoE+ support and a 370 W PoE budget. Four SFP28 uplink ports operate at 1/10/25 GbE for stacking or uplinks. It is built for enterprise edge networks that need to power Wi-Fi 6 access points and IoT devices from a single switch.

Sustained load behaviour

The switch draws up to 525 W total power while delivering the full 370 W PoE budget across all 48 ports. It operates continuously between 0 and 45 Celsius without throttling the PoE output. Advanced L2/L3 features and VXLAN support maintain wire-speed forwarding under heavy campus traffic loads.

Installation and common issues

The unit fits a standard rack and accepts 100 to 240 VAC at 50 to 60 Hz without configuration. A USB Type-C port, RJ45 serial console and dedicated RJ45 management port give multiple paths for initial setup. The main friction point is the 12-switch stacking limit, which constrains growth in very large deployments.

Highlights

  • 48 PoE+ ports power Wi-Fi 6 access points and IoT devices
  • 370 W PoE budget supports dense wireless and endpoint deployments
  • Four 25 GbE SFP28 uplinks provide high-speed stacking and aggregation
  • Advanced Layer 3 routing enables flexible campus network designs
  • Operates reliably from 0 to 45 °C in enterprise environments

Specifications

BrandRuckus
Part NumberICX8200-48P
Primary Ports10/100/1000BASE-T Ports: 48
Interfaces: 48× 10/100/1000 Mbps RJ-45 PoE+ ports; 4× 1/10/25 GbE uplink/stacking SFP28 ports USB Type-C; RJ45 serial port; RJ45 Ethernet port
PowerPower Over Ethernet (PoE) Support: Yes
PoE Power Consumption: 370 W
Power / Device Type: Power Supply
Max Power Consumption: 525 Watt
Power / Voltage Required: 100 to 240 VAC 50 to 60 Hz
TemperatureMin Operating Temperature: 0 Celsius
Max Operating Temperature: 45 Celsius
Min Storage Temperature: -40 Celsius
Max Storage Temperature: 70 Celsius
Shipping weight5.75 kg
Package size440 × 370 × 44 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat and power draw should I expect from the ICX8200-48P when it runs 24/7 at full PoE load?

The switch draws up to 525 W total and delivers 370 W of PoE+ power; it operates between 0 °C and 45 °C.

Which cables and modules do I need to have on hand before the ICX8200-48P will pass traffic?

You need RJ-45 Cat5e or better for the 48 1 GbE ports and SFP28 transceivers with compatible fibre or DAC for the four 25 GbE uplinks.

Will my existing 1 GbE access points and servers work straight away on the ICX8200-48P without reconfiguration?

Yes, the 48 RJ-45 ports auto-negotiate 10/100/1000 Mbps and support PoE+ for legacy APs and PoE devices.
