Compact desktop network switch with eight RJ-45 ports and two SFP+ uplinks

RUCKUS WIRELESS

RUCKUS WIRELESS ICX8100-C08PF-X 8-port PoE+ network switch

SKU CH-DB4M-0ZVJC MPN ICX8100-C08PF-X

An 8-port managed switch with PoE+ on every RJ-45 port and two 10GbE SFP+ uplinks, delivering a 124 W PoE budget

  • FormatDesktop
  • Standards802.1AB LLDP/ LLDP-MED 802.1D MAC Bridging 802.1p Mapping to
  • Network Management TypeManaged
  • Management FeatureDHCP Auto-Configuration Configuration Logging Digital Optica
  • MAC Address Table32K
  • Jumbo FramesMaximum jumbo frame size: 9,216 bytes
  • 8 PoE+ ports deliver up to 30W each for power-hungry devices
  • 124W total PoE budget supports multiple access points and cameras
  • 2 SFP+ uplink ports provide 10GbE connectivity for high-speed aggregation
  • Managed switch with 32K MAC table and 42 Mpps forwarding for efficient traffic handling
  • 9,216-byte jumbo frames reduce overhead on large data transfers

Compact 8-Port PoE+ Switch

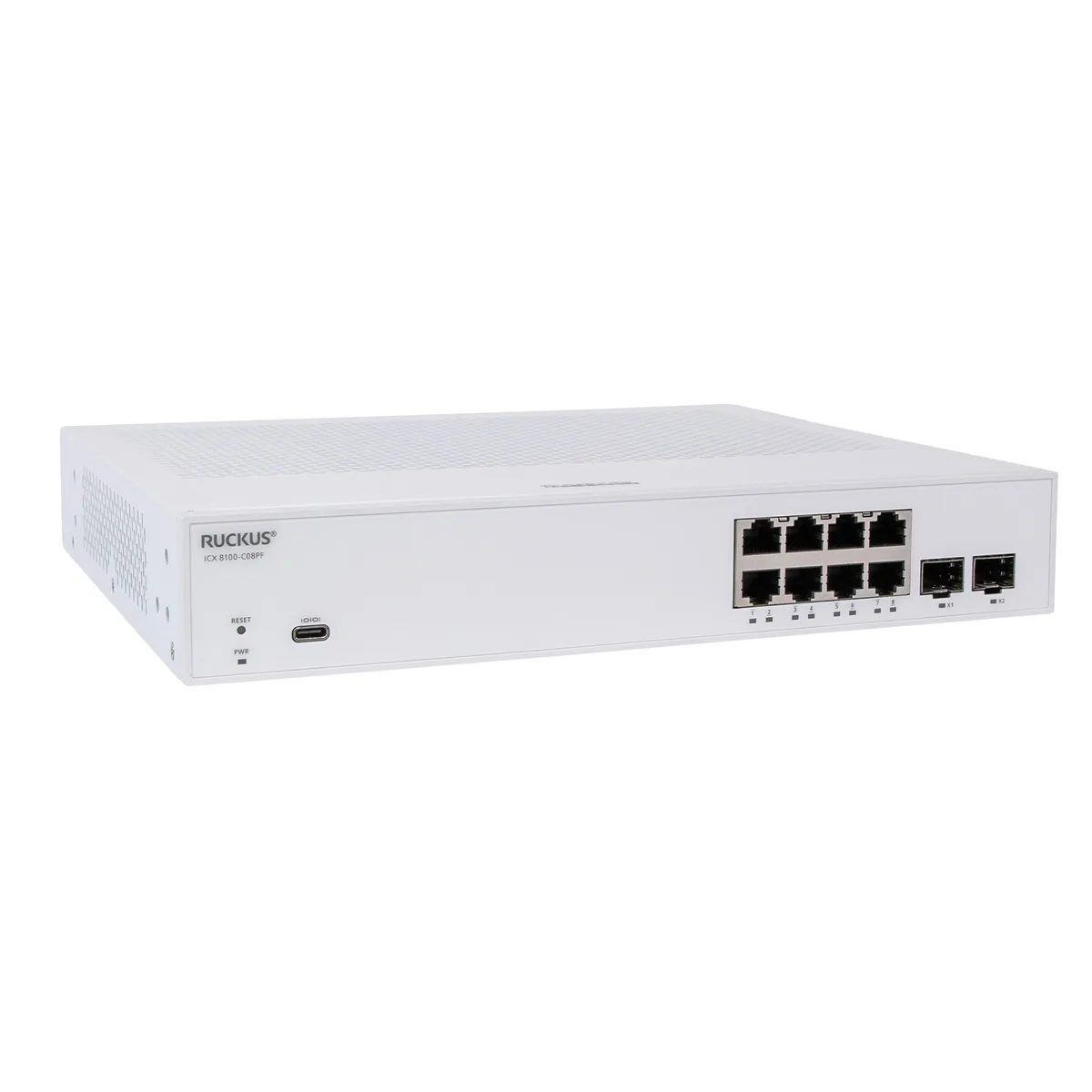

The RUCKUS ICX 8100-C08PF-X is a managed desktop switch with eight 10/100/1000 Mbps RJ-45 ports that deliver PoE+ power up to 30W per port. Two 1/10GbE SFP+ uplink ports provide high-speed aggregation for small business or branch-office networks.

Suits PoE-heavy edge deployments

This model fits installers who need to power wireless access points, IP cameras or VoIP phones from a single compact unit with a 124W total PoE budget. Buyers who require Layer 3 routing or a higher port count should look at larger chassis-based switches.

124W PoE budget decides fit

The 124W PoE+ budget across eight ports is the key specification that determines whether the switch can support the intended powered devices. Verify the combined draw of all endpoints against this figure before purchase.

Highlights

  • 8 PoE+ ports deliver up to 30W each for power-hungry devices
  • 124W total PoE budget supports multiple access points and cameras
  • 2 SFP+ uplink ports provide 10GbE connectivity for high-speed aggregation
  • Managed switch with 32K MAC table and 42 Mpps forwarding for efficient traffic handling
  • 9,216-byte jumbo frames reduce overhead on large data transfers

Specifications

BrandFortinet
SeriesRUCKUS ICX 8100
ModelICX 8100-C08PF PoE w/ SFP+ uplink ports
Part NumberICX8100-C08PF-X
FormatDesktop
Standards802.1AB LLDP/ LLDP-MED
802.1D MAC Bridging
802.1p Mapping to Priority Queue
802.1s Multiple Spanning Tree (MST)
802.1w Rapid Reconfiguration of Spanning Tree (RSTP)
802.1x Port-based Network Access Control (PNAC)
802.3 Carrier Sense Multiple Access/Collision Detection (CSMA/CD)
802.3ab 1000BASE-T
802.3 10Base-T
802.3ad Link Aggregation (Dynamic and Static)
802.1 AX-2008 Link Aggregation
802.3ae 10 Gigabit Ethernet
802.3af Power over Ethernet
802.3at Power over Ethernet Plus
802.3bz Multigigabit Ethernet
802.3u 100Base-TX
802.3x Flow Control
802.3z 1000Base-SX/LX
802.3 MAU MIB (RFC 22
Network Management TypeManaged
Management FeatureDHCP Auto-Configuration
Configuration Logging
Digital Optical Monitoring
Display Log Messages on Multiple Terminals
Embedded Web Management (HTTP/HTTPS)
Embedded DHCP Server
Industry-standard Command Line Interface (CLI)
RUCKUS SmartZone, RUCKUS One, RUCKUS Unleashed
CLI activation of optional software features
Macro for batch execution
RSPAN
TFTP
TELNET Client and Server
SSH / SSH V2
Bootp
SNMPv1/v2c
DHCP Server and DHCP Relay
SNMPv3 Intro to Framework
Architecture for Describing SNMP Framework
SNMP Message Processing and Dispatching
SNMPv3 Applications
SNMPv3 User-based Security Mo
MAC Address Table32K
Jumbo FramesMaximum jumbo frame size: 9,216 bytes
Packet Forwarding RateForwarding capacity (data rate, full duplex): 42 Mpps
Buffer Memory4 MB
Security802.1X authentication
MAC authentication
Flexible authentication
Web authentication
DHCP snooping
Dynamic ARP inspection
Neighbor Discovery (ND) Inspection
Bi-level Access Mode (Standard and EXEC Level)
EAP pass-through support
IEEE 802.1X username export in sFlow
Protection against Denial of Service (DoS) attacks
Authentication, Authorization, and Accounting (AAA)
MAC Address Locking MAC Port Security
Advanced Encryption Standard (AES) with SSHv2
RADIUS/TACACS/TACACS+
Secure Copy (SCP)
Secure Shell (SSHv2)
Protected Ports
Local Username/Password
Change of Authorization (CoA) RFC 517
PoEYes
QoSQoS priority queues: 8 per port
Quality of Service (QoS):
ACL Mapping and Marking of ToS/DSCP (CoS)
ACL Mapping and Marking of 802.1p
ACL Mapping to Priority Queue
Classifying and Limiting Flows Based on TCP Flags
DiffServ Support
Honoring DSCP and 802.1p (CoS)
MAC Address Mapping to Priority Queue
Priority Queue Management using Weighted Round Robin (WRR), Strict Priority (SP), and a combination of WRR and SP
Layer802.1s Multiple Spanning Tree
802.1x Authentication
Auto MDI/MDIX
BPDU Guard, Root Guard
Dual-Mode VLANs
MAC-based VLANs, Dynamic MAC-based VLAN activation
Dynamic VLAN Assignment
Dynamic Voice VLAN Assignment
Fast Port Span
GVRP : GARP VLAN Registration Protocol
IGMP Snooping (v1/v2/v3)
IGMP Proxy for Static Groups
IGMP v2/v3 Fast Leave
Inter-Packet Gap (IPG) adjustment
Link Fault Signaling (LFS)
MAC Address Filtering
MAC Learning Disable
MLD Snooping (v1/v2)
Multi-device Authentication
Per-VLAN Spanning Tree (PVST/PVST+/PRST)
Mirroring: Port-based, ACL-based, MAC Filter-based, and
Layer 3 FeaturesBase Layer 3 IP routing:
Routing not supported
Static Routing
Shipping weight2.27 kg
Package size272 × 216 × 46 mm

Questions about this item

What desktop space or rack clearance does the ICX8100-C08PF-X need?

The switch is a desktop-format unit with eight RJ-45 PoE+ ports and two SFP+ uplinks; allow room for cable bend radius on all ten ports and for airflow through the side vents.

What is the common mistake when connecting the 10GbE SFP+ uplinks?

Inserting an SFP+ transceiver before the fibre patch cord is fully seated; the latch clicks only when the cord pushes the module home.

When will the 124W PoE budget need to be re-evaluated?

Whenever you add or upgrade powered devices so that the combined draw approaches 124W or any single port nears its 30W class-4 limit.
