Rackmount switch with 48 RJ45 ports and 4 SFP+ uplinks

RUCKUS WIRELESS

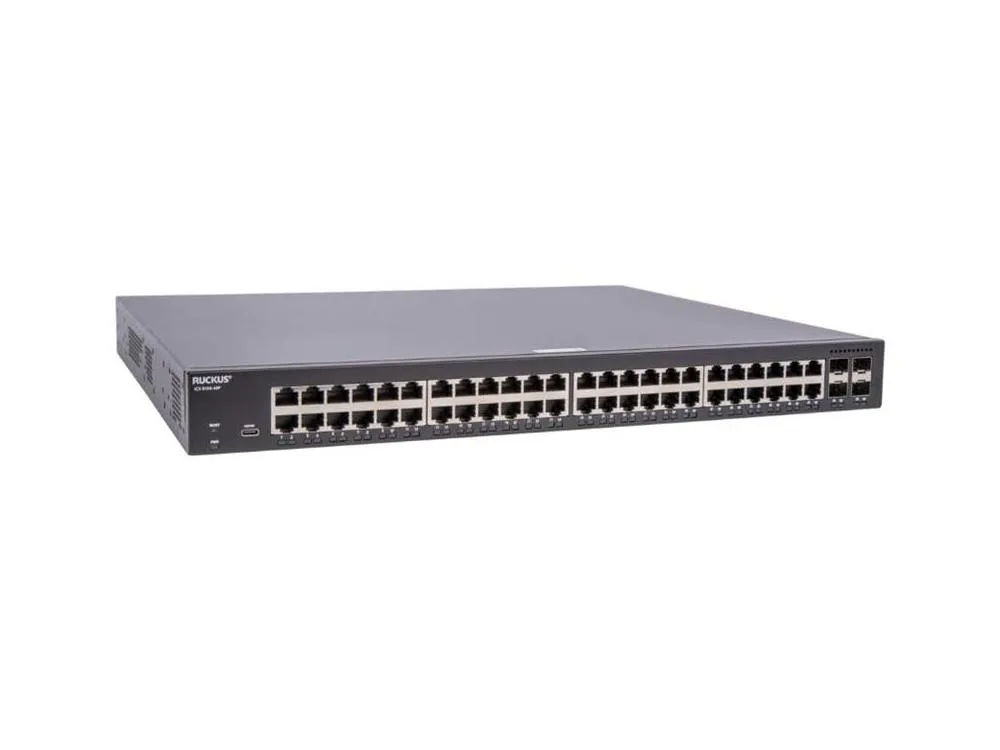

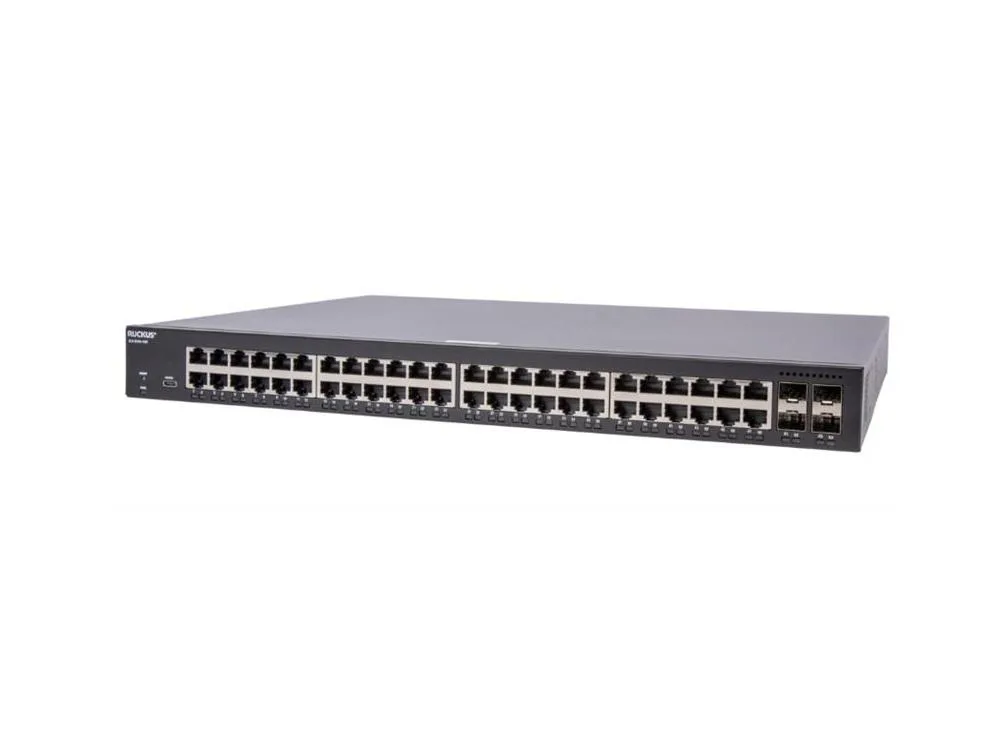

RUCKUS WIRELESS ICX8100-48PF-X 48-port PoE+ network switch

SKU CH-4PAP-KHTGD MPN ICX8100-48PF-X

A managed 48-port PoE+ switch with 740 W budget and four 10 GbE SFP+ uplinks

  • FormatRackmount
  • Standards802.1AB LLDP/ LLDP-MED 802.1D MAC Bridging 802.1p Mapping to
  • Network Management TypeManaged
  • Primary Ports48 x RJ45 + 4 x SFP+
  • MAC Address Table32K
  • Buffer Memory4MB
  • 48 PoE+ ports deliver up to 30 W each for power-hungry devices
  • 740 W total PoE budget supports dense access-point or camera deployments
  • Four 10 GbE SFP+ uplinks provide high-speed aggregation to the core
  • Layer 3 static routing enables inter-VLAN traffic without a separate router
  • Stackable design lets multiple units operate as a single logical switch

Rackmount 48-port PoE+ switch

The RUCKUS ICX8100-48PF-X is a managed Layer 3 switch built for enterprise networks that need dense copper connectivity and high-power PoE. It suits IT teams deploying access points, cameras, or phones across wiring closets where rack space is at a premium.

740 W PoE budget and fan-cooled chassis

The unit delivers up to 30 W per port across all 48 RJ-45 interfaces while staying within a 740 W total PoE budget. Internal cooling handles the thermal load of full PoE utilisation in a 1RU form factor, and the switch supports Energy Efficient Ethernet to reduce idle power draw.

Four 10GbE SFP+ uplinks and stacking support

Four SFP+ ports provide 1 or 10 GbE fibre uplinks to aggregation or core switches without consuming copper ports. Stackable architecture lets multiple units operate as a single logical device, simplifying management for growing campuses. Buyers needing higher port density or modular uplink options will need a different chassis.

Highlights

  • 48 PoE+ ports deliver up to 30 W each for power-hungry devices
  • 740 W total PoE budget supports dense access-point or camera deployments
  • Four 10 GbE SFP+ uplinks provide high-speed aggregation to the core
  • Layer 3 static routing enables inter-VLAN traffic without a separate router
  • Stackable design lets multiple units operate as a single logical switch

Specifications

BrandRuckus
ModelICX8100-48PF-X
Part NumberICX8100-48PF-X
FormatRackmount
Standards802.1AB LLDP/ LLDP-MED
802.1D MAC Bridging
802.1p Mapping to Priority Queue
802.1s Multiple Spanning Tree (MST)
802.1w Rapid Reconfiguration of Spanning Tree (RSTP)
802.1x Port-based Network Access Control (PNAC)
802.3 Carrier Sense Multiple Access/Collision Detection (CSMA/CD)
802.3ab 1000BASE-T
802.3 10Base-T
802.3ad Link Aggregation (Dynamic and Static)
802.1 AX-2008 Link Aggregation
802.3ae 10 Gigabit Ethernet
802.3af Power over Ethernet
802.3at Power over Ethernet Plus
802.3bz Multigigabit Ethernet
802.3u 100Base-TX
802.3x Flow Control
802.3z 1000Base-SX/LX
802.3 MAU MIB (RFC 22
Network Management TypeManaged
Primary Ports48 x RJ45 + 4 x SFP+
MAC Address Table32K
Buffer Memory4MB
Security802.1X authentication
MAC authentication
Flexible authentication
Web authentication
DHCP snooping
Dynamic ARP inspection
Neighbor Discovery (ND) Inspection
Bi-level Access Mode (Standard and EXEC Level)
EAP pass-through support
IEEE 802.1X username export in sFlow
Protection against Denial of Service (DoS) attacks
Authentication, Authorization, and Accounting (AAA)
MAC Address Locking MAC Port Security
Advanced Encryption Standard (AES) with SSHv2
RADIUS/TACACS/TACACS+
Secure Copy (SCP)
Secure Shell (SSHv2)
Protected Ports
Local Username/Password
Change of Authorization (CoA) RFC 517
PoEYes
StackableYes
QoSQoS priority queues: 8 per port
ACL Mapping and Marking of ToS/DSCP (CoS)
ACL Mapping and Marking of 802.1p
ACL Mapping to Priority Queue
Classifying and Limiting Flows Based on TCP Flags
DiffServ Support
Honoring DSCP and 802.1p (CoS)
MAC Address Mapping to Priority Queue
Priority Queue Management using Weighted Round Robin (WRR), Strict Priority (SP), and a combination of WRR and SP
Layer3
Layer 2 Features802.1s Multiple Spanning Tree
802.1x Authentication
Auto MDI/MDIX
BPDU Guard, Root Guard
Dual-Mode VLANs
MAC-based VLANs, Dynamic MAC-based VLAN activation
Dynamic VLAN Assignment
Dynamic Voice VLAN Assignment
Fast Port Span
GVRP : GARP VLAN Registration Protocol
IGMP Snooping (v1/v2/v3)
IGMP Proxy for Static Groups
IGMP v2/v3 Fast Leave
Inter-Packet Gap (IPG) adjustment
Link Fault Signaling (LFS)
MAC Address Filtering
MAC Learning Disable
MLD Snooping (v1/v2)
Multi-device Authentication
Per-VLAN Spanning Tree (PVST/PVST+/PRST)
Mirroring: Port-based, ACL-based, MAC Filter-based, and
Layer 3 FeaturesBase Layer 3 IP routing:
Routing not supported
Static Routing
PoE Ports48 x PoE+
PoE Power Budget740 W
Shipping weight5.90 kg
Package size440 × 370 × 44 mm

Questions about this item

How do I install the ICX8100-48PF-X in a rack and what step is often missed?

Mount the 1RU chassis using the supplied brackets, connect the 48 RJ45 and four SFP+ cables, then attach a suitable power cord — the unit ships without one, so that is the step installers forget.

What maintenance or replacement will the ICX8100-48PF-X need over time?

The internal cooling fans are the only moving parts; plan to clean dust from the vents periodically and replace a fan if it becomes noisy or fails.

What limit appears first when the ICX8100-48PF-X runs under sustained PoE load?

The 740 W PoE budget is the first ceiling; with 48 PoE+ ports each capable of 30 W, the aggregate budget is reached before any per-port limit.
