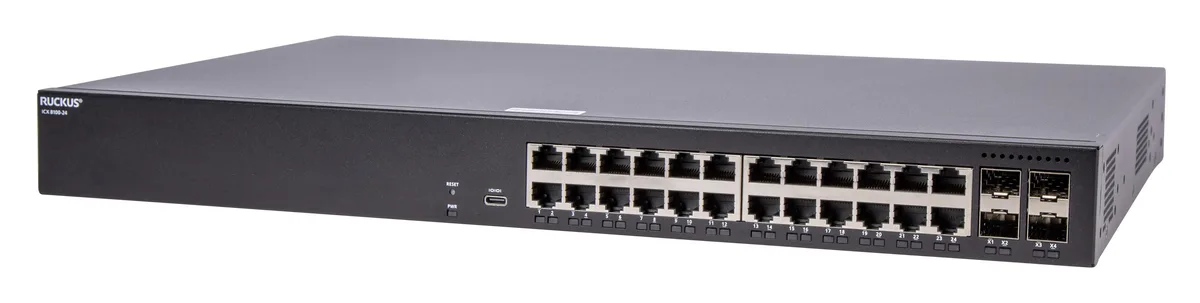

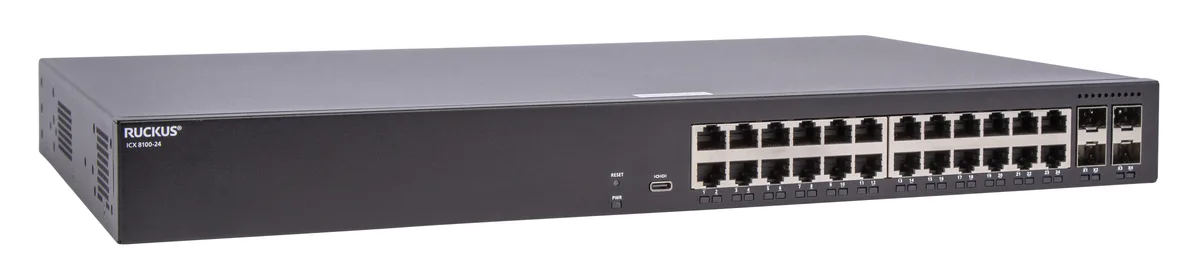

RUCKUS ICX 8100 1RU switch with 24 RJ-45 ports and 4 SFP+ uplinks

RUCKUS WIRELESS

RUCKUS WIRELESS ICX8100-24-X 24-port network switch

SKU CH-NYCW-0NWF7 MPN ICX8100-24-X

A managed 24-port Gigabit switch with four 10 GbE SFP+ uplinks, fanless design and Layer 3 static routing

  • Switch TypeICX8100-24-X
  • Standards802.1AB LLDP/ LLDP-MED 802.1D MAC Bridging 802.1p Mapping to
  • Network Management TypeManaged
  • Management FeatureDHCP Auto-Configuration Configuration Logging Digital Optica
  • MAC Address Table32K
  • Jumbo FramesMaximum jumbo frame size: 9,216 bytes
  • 24 Gigabit RJ-45 ports connect every desktop device
  • 4 SFP+ uplinks at 1/10 GbE aggregate traffic to the core
  • Fanless design eliminates noise in quiet offices
  • 42 Mpps forwarding handles bursty workloads without loss
  • 1X and MAC authentication secure every port

Enterprise Access Switch

The RUCKUS ICX 8100-24-X is a managed 1RU switch built for business networks that require silent operation. It provides 24 RJ-45 ports running at 10, 100 or 1000 Mbps plus four SFP+ uplink ports capable of 1 or 10 GbE speeds. The fanless design makes it suitable for quiet office environments or noise-sensitive deployments.

Uplink Capacity Decision

The four SFP+ uplink ports are the specification that determines fit: they deliver 1 or 10 GbE aggregation for the 24 copper access ports. If your design needs more than four high-speed uplinks or requires PoE power delivery, this model does not meet those requirements.

Rack Integration Profile

The 1RU fanless chassis mounts in a standard rack without adding acoustic load, freeing thermal headroom for adjacent equipment. It requires an external power cord and SFP+ transceivers for the uplink ports, while the RJ-45 ports connect directly to endpoints using standard twisted-pair cabling.

Highlights

  • 24 Gigabit RJ-45 ports connect every desktop device
  • 4 SFP+ uplinks at 1/10 GbE aggregate traffic to the core
  • Fanless design eliminates noise in quiet offices
  • 42 Mpps forwarding handles bursty workloads without loss
  • 1X and MAC authentication secure every port

Specifications

BrandFortinet
SeriesRUCKUS ICX 8100
ModelICX 8100-24-X
Part NumberICX8100-24-X
Switch TypeICX8100-24-X
Standards802.1AB LLDP/ LLDP-MED
802.1D MAC Bridging
802.1p Mapping to Priority Queue
802.1s Multiple Spanning Tree (MST)
802.1w Rapid Reconfiguration of Spanning Tree (RSTP)
802.1x Port-based Network Access Control (PNAC)
802.3 Carrier Sense Multiple Access/Collision Detection (CSMA/CD)
802.3ab 1000BASE-T
802.3 10Base-T
802.3ad Link Aggregation (Dynamic and Static)
802.1 AX-2008 Link Aggregation
802.3ae 10 Gigabit Ethernet
802.3af Power over Ethernet
802.3at Power over Ethernet Plus
802.3bz Multigigabit Ethernet
802.3u 100Base-TX
802.3x Flow Control
802.3z 1000Base-SX/LX
802.3 MAU MIB (RFC 22
Network Management TypeManaged
Management FeatureDHCP Auto-Configuration
Configuration Logging
Digital Optical Monitoring
Display Log Messages on Multiple Terminals
Embedded Web Management (HTTP/HTTPS)
Embedded DHCP Server
Industry-standard Command Line Interface (CLI)
RUCKUS SmartZone, RUCKUS One, RUCKUS Unleashed
CLI activation of optional software features
Macro for batch execution
RSPAN
TFTP
TELNET Client and Server
SSH / SSH V2
Bootp
SNMPv1/v2c
DHCP Server and DHCP Relay
SNMPv3 Intro to Framework
Architecture for Describing SNMP Framework
SNMP Message Processing and Dispatching
SNMPv3 Applications
SNMPv3 User-based Security Mo
MAC Address Table32K
Jumbo FramesMaximum jumbo frame size: 9,216 bytes
Packet Forwarding RateForwarding capacity (data rate, full duplex): 42 Mpps
Buffer Memory4 MB
Security802.1X authentication
MAC authentication
Flexible authentication
Web authentication
DHCP snooping
Dynamic ARP inspection
Neighbor Discovery (ND) Inspection
Bi-level Access Mode (Standard and EXEC Level)
EAP pass-through support
IEEE 802.1X username export in sFlow
Protection against Denial of Service (DoS) attacks
Authentication, Authorization, and Accounting (AAA)
MAC Address Locking MAC Port Security
Advanced Encryption Standard (AES) with SSHv2
RADIUS/TACACS/TACACS+
Secure Copy (SCP)
Secure Shell (SSHv2)
Protected Ports
Local Username/Password
Change of Authorization (CoA) RFC 517
QoSQoS priority queues: 8 per port
Quality of Service (QoS):
ACL Mapping and Marking of ToS/DSCP (CoS)
ACL Mapping and Marking of 802.1p
ACL Mapping to Priority Queue
Classifying and Limiting Flows Based on TCP Flags
DiffServ Support
Honoring DSCP and 802.1p (CoS)
MAC Address Mapping to Priority Queue
Priority Queue Management using Weighted Round Robin (WRR), Strict Priority (SP), and a combination of WRR and SP
Layer 2 Features802.1s Multiple Spanning Tree
802.1x Authentication
Auto MDI/MDIX
BPDU Guard, Root Guard
Dual-Mode VLANs
MAC-based VLANs, Dynamic MAC-based VLAN activation
Dynamic VLAN Assignment
Dynamic Voice VLAN Assignment
Fast Port Span
GVRP : GARP VLAN Registration Protocol
IGMP Snooping (v1/v2/v3)
IGMP Proxy for Static Groups
IGMP v2/v3 Fast Leave
Inter-Packet Gap (IPG) adjustment
Link Fault Signaling (LFS)
MAC Address Filtering
MAC Learning Disable
MLD Snooping (v1/v2)
Multi-device Authentication
Per-VLAN Spanning Tree (PVST/PVST+/PRST)
Mirroring: Port-based, ACL-based, MAC Filter-based, and
Layer 3 FeaturesBase Layer 3 IP routing:
Routing not supported
Static Routing
Shipping weight4.54 kg
Package size442 × 282 × 46 mm

Questions about this item

What does the 42 Mpps forwarding capacity mean for daily traffic?

It indicates the switch can process up to 42 million packets per second at full duplex across all ports.

What uplink speed do the four SFP+ ports support and what limits them?

Each SFP+ uplink runs at 1 or 10 GbE depending on the transceiver fitted.

How much rack space does the unit need and what mounting hardware is included?

The chassis is a 1RU design and ships with brackets for standard four-post racks.
