Silver 1U rackmount network switch with 48 RJ45 ports and modular uplink slot

RUCKUS WIRELESS

RUCKUS WIRELESS ICX7550-48-E2 48-port network switch

SKU CH-BTAK-4VDF4 MPN ICX7550-48-E2

A 48-port stackable Layer 3 switch with 309 Mpps forwarding, dual 40 Gbps uplinks, two 400 W AC supplies and modular uplink slots for Wi-Fi 7 deployments

  • FormatStackable
  • Standards802.1AB LLDP 802.1D MAC Bridging 802.1p Mapping to Priority
  • Primary Ports48 x RJ45
  • Management FeatureDHCP Auto Configuration Configuration Logging Digital Optica
  • Packet Forwarding RateForwarding capacity (data rate, full duplex): 309 Mpps
  • SecurityMACsec* 802.1X authentication MAC authentication Flexible au
  • 48 RJ-45 ports provide high-density copper connectivity
  • 2× 40 Gbps QSFP+ uplink ports enable fast stacking links
  • Stack up to 12 switches for 576-port unified management
  • Layer 3 routing with IPv4/IPv6 static routes and RIP
  • Dual 400 W AC supplies and front-to-back cooling included

48-port stackable switch

The RUCKUS ICX 7550-48-E2 is a stackable Layer 3 switch with 48 RJ45 ports supporting 10/100/1000 Mbps connectivity. It targets enterprise networks that need high-density gigabit access and advanced routing features for Wi-Fi 6 and Wi-Fi 7 deployments.

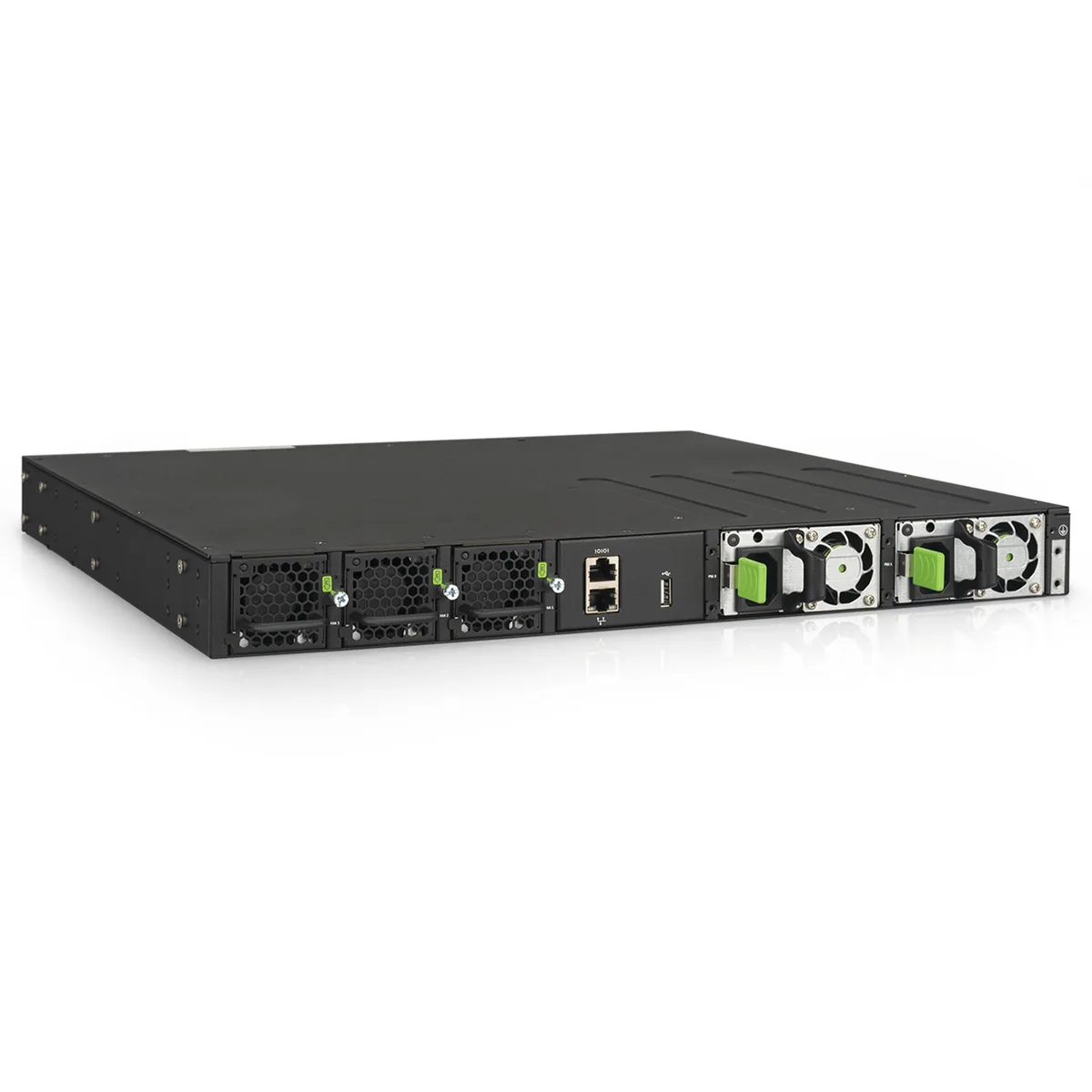

Dual 400W AC supplies and fans

The bundle includes two 400W AC power supplies and three fans with front-to-back airflow for redundant cooling and power. Port modules are sold separately, so uplink or stacking expansion requires additional purchases to activate the modular slot and QSFP+ ports.

12-switch stack scales to 576 ports

Stacking supports up to 12 switches, delivering a combined 576 gigabit, multigigabit or fibre ports with a 309 Mpps forwarding rate. The dual 40 Gbps QSFP+ uplinks provide high-speed aggregation, but 100 GbE uplinks need separate optics not included in this package.

Highlights

  • 48 RJ-45 ports provide high-density copper connectivity
  • 2× 40 Gbps QSFP+ uplink ports enable fast stacking links
  • Stack up to 12 switches for 576-port unified management
  • Layer 3 routing with IPv4/IPv6 static routes and RIP
  • Dual 400 W AC supplies and front-to-back cooling included

Specifications

BrandRuckus
ModelICX7550
Part NumberICX7550-48-E2
FormatStackable
Standards802.1AB LLDP
802.1D MAC Bridging
802.1p Mapping to Priority Queue
802.1s Multiple Spanning Tree (MST)
802.1w Rapid Reconfiguration of Spanning Tree
802.1x Port-based Network Access Control (PNAC)
802.3 Carrier Sense Multiple Access/Collision Detection (CSMA/CD)
802.3ab 1000BASE-T
802.1 AX-2008 Link Aggregation
802.3ae 10 Gigabit Ethernet
802.3af Power over Ethernet
802.3at Power over Ethernet Plus
802.3bt 4-Pair Power over Ethernet
802.3u 100Base-TX
802.3x Full duplex and Flow Control
802.3z 1000Base-SX/LX
802.3bz Multi-gigabit Ethernet
802.3 MAU MIB (RFC 2239)
802.3ba 40 and 100 Gbp
Primary Ports48 x RJ45
Management FeatureDHCP Auto Configuration
Configuration Logging
Digital Optical Monitoring
Display Log Messages on Multiple Terminals
Embedded Web Management (HTTP/HTTPS)
Embedded DHCP Server
Industry-standard Command Line Interface (CLI)
RUCKUS SmartZone, RUCKUS One, RUCKUS
Unleashed
Easy activation of optional software features
USB file management and storage
Boot from USB storage
Macro for batch execution
Out-of-band Ethernet Management
ERSPAN support for remote traffic monitoring
RSPAN
TFTP
TELNET Client and Server
Bootp
SNMPv1/v2c
DHCP Server and DHCP Relay
SNMPv3 Intro to Framework
SNMP Message
Packet Forwarding RateForwarding capacity (data rate, full duplex): 309 Mpps
SecurityMACsec*
802.1X authentication
MAC authentication
Flexible authentication
Web authentication
DHCP snooping
Dynamic ARP inspection
Neighbor Discovery (ND) Inspection
Tri-level Access Mode (EXEC, Privileged EXEC and
Global Configuration)
EAP pass-through support
EEE 802.1X username export in sFlow
Protection against Denial of Service (DoS) attacks
Authentication, Authorization, and Accounting (AAA)
MAC Address Locking MAC Port Security
Advanced Encryption Standard (AES) with SSHv2
RADIUS/TACACS/TACACS+
Secure Copy (SCP)
Secure Shell (SSHv2)
Local Username/Password
Change of Authorizatio
PoENo
StackableYes
QoSACL Mapping and Marking of ToS/DSCP (CoS)
ACL Mapping and Marking of 802.1p
ACL Mapping to Priority Queue
Classifying and Limiting Flows Based on TCP Flags
DiffServ Support
Honoring DSCP and 802.1p (CoS)
MAC Address Mapping to Priority Queue
Priority Queue Management using Weighted Round Robin
(WRR), Strict Priority (SP), and a combination of WRR and SP
Layer3
Layer 2 Features802.1s Multiple Spanning Tree
802.1x Authentication
Auto MDI/MDIX
BPDU Guard, Root Guard
Dual-Mode VLANs
MAC-based VLANs, Dynamic MAC-based VLAN activation
Dynamic Voice VLAN Assignment
Dynamic VLAN Assignment
Fast Port Span
MVRP: Multiple VLAN Registration Protocol
IGMP Snooping (v1/v2/v3)
IGMP Proxy for Static Groups
IGMP v2/v3 Fast Leave
Inter-Packet Gap (IPG) adjustment
Link Fault Signaling (LFS)
MAC Address Filtering
MAC Learning Disable
MLD Snooping (v1/v2)
Multi-device Authentication
Per-VLAN Spanning Tree (PVST/PVST+/PVRST)
Mirroring - Port-based, ACL-based, MAC Filter-based
Layer 3 FeaturesBASE LAYER 3 IP ROUTING
IPv4 and IPv6 static routes
RIP v1/v2, RIPng
ECMP
Port-based Access Control Lists
Layer 3/Layer 4 ACLs
Host routes
Virtual Interfaces
Routed Interfaces
Route-only Support
Routing Between Directly Connected Subnets
BGP EVPN VXLAN
PowerPower inlet: C14 (AC), Dinkle 2EHDP-03P (DC)
Input voltage/frequency: AC: 100 to 240 VAC @ 50 to 60 Hz | DC: 40 to 60 VDC
Power supply rated maximum output (AC): 2 x 400W
Switch power consumption (25 degrees Celsius): 65 W (10% traffic (no PoE load)), 142.7 W (100% traffic (full PoE
load)).
Shipping weight4.54 kg
Package size508 × 508 × 305 mm

Questions about this item

How often will the three front-to-back fans need replacement?

Three fans are included with front-to-back airflow; replacement timing depends on operating temperature and duty cycle.

Which uplink limit appears first when stacking twelve switches at full line rate?

Twelve switches stack to 576 ports; each switch provides two 40 Gbps QSFP+ uplink/stacking ports.

What is the power draw and heat output when both 400 W AC supplies run continuously?

Dual 400 W AC supplies accept 100-240 VAC at 50-60 Hz; switch consumption at 25 °C is specified in the data sheet.
