Silver rack-mount network switch with 24 front ports and dual power supplies

RUCKUS WIRELESS

RUCKUS WIRELESS ICX7550-24ZP-E2 24-port network switch

SKU CH-S6ZF-2T3JV MPN ICX7550-24ZP-E2

A managed 24-port rack-mountable switch with Layer 3 switching, dual 1.2 kW power supplies, and 4 GB DDR3 RAM

  • Primary PortsRJ45, 1/10 Gbps SFP/SFP+ uplinks, QSFP28, USB type C
  • Buffer MemoryRAM / Total Installed Size: 4 GB Flash Memory / Installed Si
  • PowerPower / Device Type: Power Supply Power / Installed Qty: 2 P
  • TemperatureMin Operating Temperature: 0 C Max Operating Temperature: 45
  • 24 managed ports with Layer 3 switching for enterprise traffic control
  • Dual 1.2 kW power supplies delivering 1152 W for high-density PoE deployments
  • 4 GB DDR3 RAM and 4 GB flash for fast boot and configuration storage
  • USB-C console and RJ-45 management for flexible out-of-band access
  • Operates from 0 °C to 45 °C with storage tolerance from -40 °C to 70 °C

24-port managed Layer 3 switch

The Ruckus ICX7550-24ZP-E2 is a 24-port managed switch built for enterprise networks that need Layer 3 routing capabilities. It serves IT teams deploying campus or data-centre fabrics where advanced switching and high-density uplinks are required.

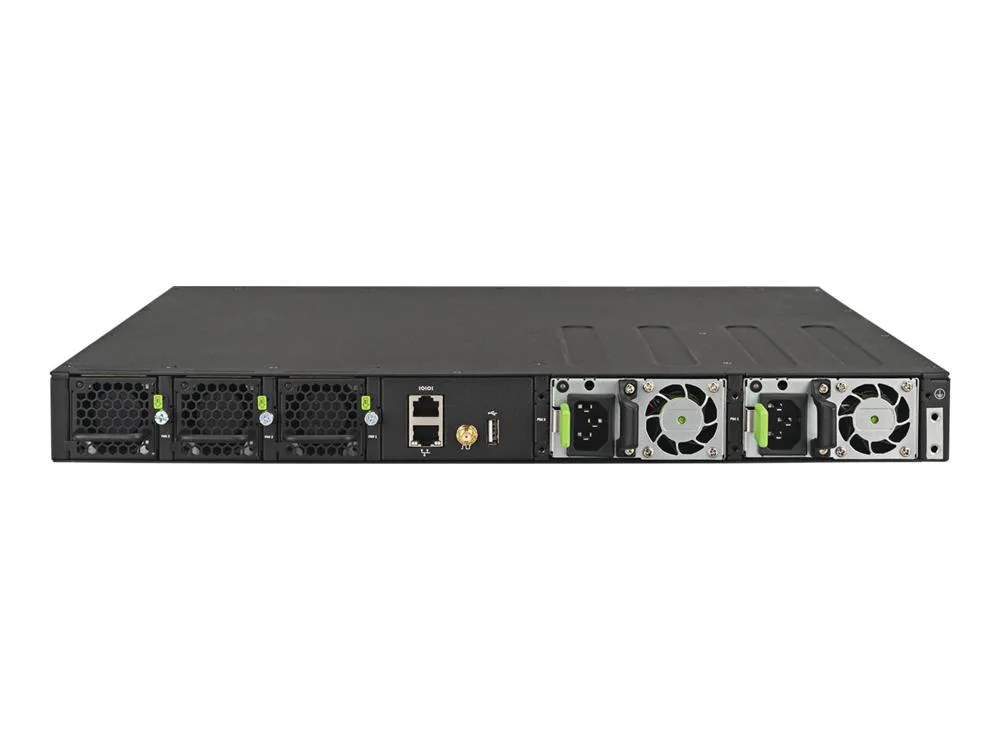

Dual 1.2 kW supplies and rack mounting

Two internal 1.2 kW power supplies deliver up to 1152 W total while supporting 100–240 VAC input for worldwide deployments. The 1U rack-mountable chassis operates from 0 °C to 45 °C and stores safely between –40 °C and 70 °C, fitting standard server rows without extra clearance planning.

Four-gigabyte DDR3 buffers and console access

4 GB of DDR3 SDRAM and 4 GB of flash memory provide deep packet buffers and fast configuration storage for the ICX755 series feature set. A USB Type-C console port and a dedicated 1000Base-T RJ-45 management interface give administrators direct local access without consuming front-panel data ports.

Highlights

  • 24 managed ports with Layer 3 switching for enterprise traffic control
  • Dual 1.2 kW power supplies delivering 1152 W for high-density PoE deployments
  • 4 GB DDR3 RAM and 4 GB flash for fast boot and configuration storage
  • USB-C console and RJ-45 management for flexible out-of-band access
  • Operates from 0 °C to 45 °C with storage tolerance from -40 °C to 70 °C

Specifications

BrandRuckus
Part NumberICX7550-24ZP-E2
Primary PortsRJ45, 1/10 Gbps SFP/SFP+ uplinks, QSFP28, USB type C
Buffer MemoryRAM / Total Installed Size: 4 GB
Flash Memory / Installed Size: 4 GB
PowerPower / Device Type: Power Supply
Power / Installed Qty: 2
Power / Provided (W): 1.2 KW
Max Power Consumption: 1152 Watt
Power / Voltage Required: 100 to 240 VAC
TemperatureMin Operating Temperature: 0 C
Max Operating Temperature: 45 C
Min Storage Temperature: -40 C
Max Storage Temperature: 70 C
Shipping weight11.36 kg
Package size440 × 406 × 44 mm

Questions about this item

What uplink speeds do the SFP/SFP+ and QSFP28 ports on the ICX7550-24ZP-E2 support?

The switch provides 1/10 Gbps SFP/SFP+ uplinks and QSFP28 ports for higher-speed aggregation, capping practical throughput at those interface rates.

What rack space and power circuit does the ICX7550-24ZP-E2 require for installation?

It is a rack-mountable unit with dual 1.2 kW power supplies, drawing up to 1152 W from a 100-240 VAC, 50/60 hertz source.

How is the ICX7550-24ZP-E2 initially configured, and which console port is often overlooked?

Connect a terminal to the USB Type-C console port — not the RJ-45 management port — then follow the CLI setup wizard to assign an IP and enable Layer 3 features.
