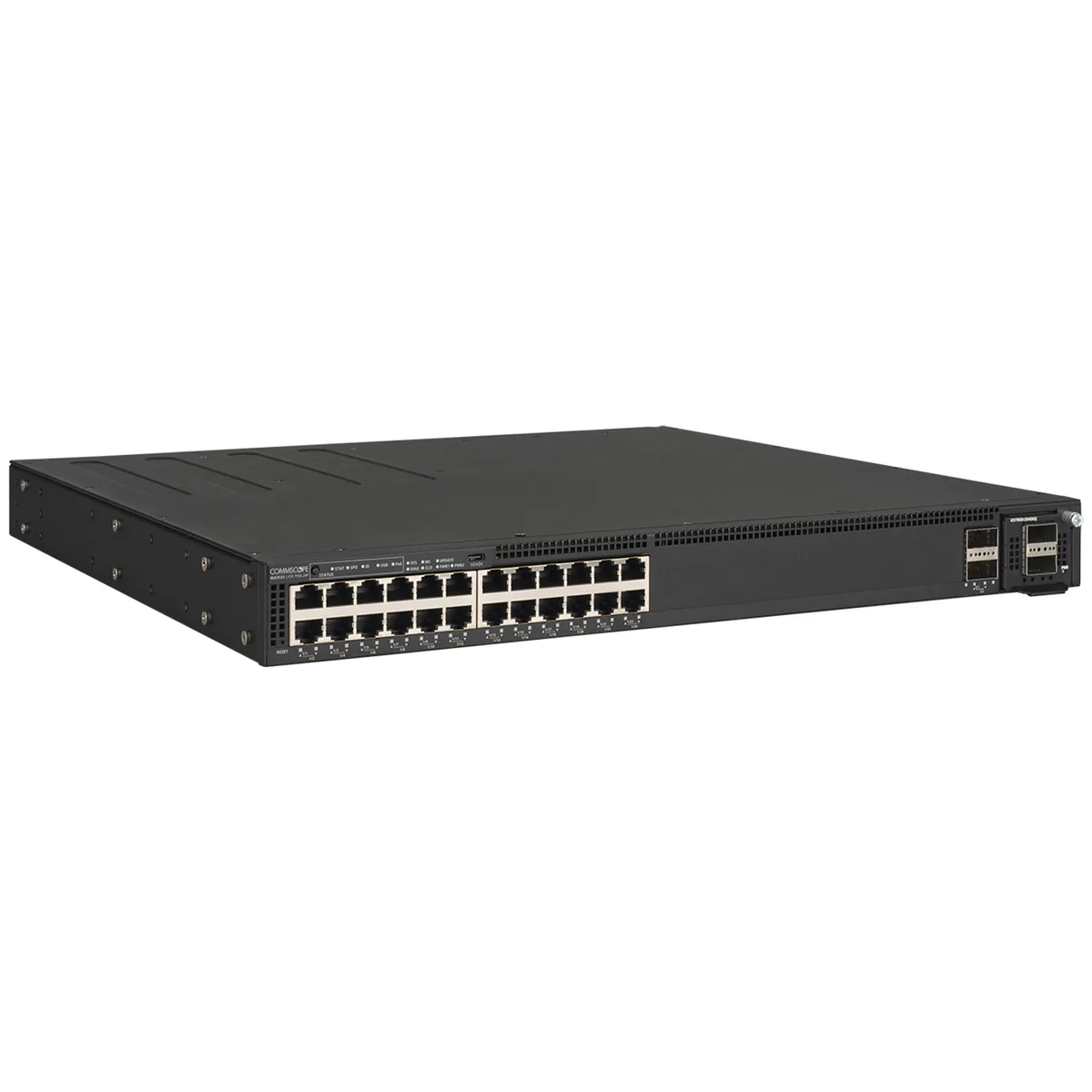

Black rack-mount network switch with 24 RJ45 ports and modular uplink slots

RUCKUS WIRELESS

RUCKUS WIRELESS ICX7550-24P-E2 24-port PoE+ network switch

SKU CH-ZRWP-ARA3X MPN ICX7550-24P-E2

24-port PoE+ Layer 3 stackable switch with 274 Mpps forwarding, 2× 40 Gbps QSFP+ uplinks, and 1624 W PoE budget for Wi-Fi 6 deployments

  • FormatStackable
  • Standards802.1AB LLDP 802.1D MAC Bridging 802.1p Mapping to Priority
  • Primary Ports24 x RJ45
  • Management FeatureDHCP Auto Configuration Configuration Logging Digital Optica
  • Packet Forwarding RateForwarding capacity (data rate, full duplex): 274 Mpps
  • SecurityMACsec* 802.1X authentication MAC authentication Flexible au
  • 24 PoE+ ports power Wi‑Fi 6 and Wi‑Fi 7 access points directly
  • 1900 W PoE budget at 180‑240 VAC supports high‑density wireless deployments
  • 2 × 40 Gbps QSFP+ uplinks enable high‑capacity stacking and aggregation
  • 274 Mpps forwarding rate handles heavy campus traffic loads
  • Stackable Layer 3 design with RIP, ECMP and static routing scales with network growth

24-port PoE+ stackable switch

The RUCKUS ICX 7550-24P-E2 is a stackable Layer 3 switch with 24 RJ45 ports that support 10/100/1000 Mbps speeds and 802.3at PoE+. It includes two 40 Gbps QSFP+ uplink and stacking ports plus a modular slot for future expansion. The bundle ships with three fans and two 1200 W AC power supplies for front-to-back airflow. It is built for enterprises deploying Wi-Fi 6 and Wi-Fi 7 access points at scale.

Before ordering, verify power infrastructure

Confirm your rack can supply AC power at 100 to 240 VAC and 50 to 60 Hz through a C14 inlet, or DC power at 40 to 60 VDC via a Dinkle 2EHDP-03P connector. The PoE budget reaches 1624 W at 100 to 180 VAC and 1900 W at 180 to 240 VAC when both AC supplies are installed. Ensure your optical cabling matches the dual-mode QSFP+ ports for stacking or uplinks. Port modules for the modular slot are sold separately. Buyers who need more than 24 powered ports should plan for additional switches.

Thermals, noise and power draw

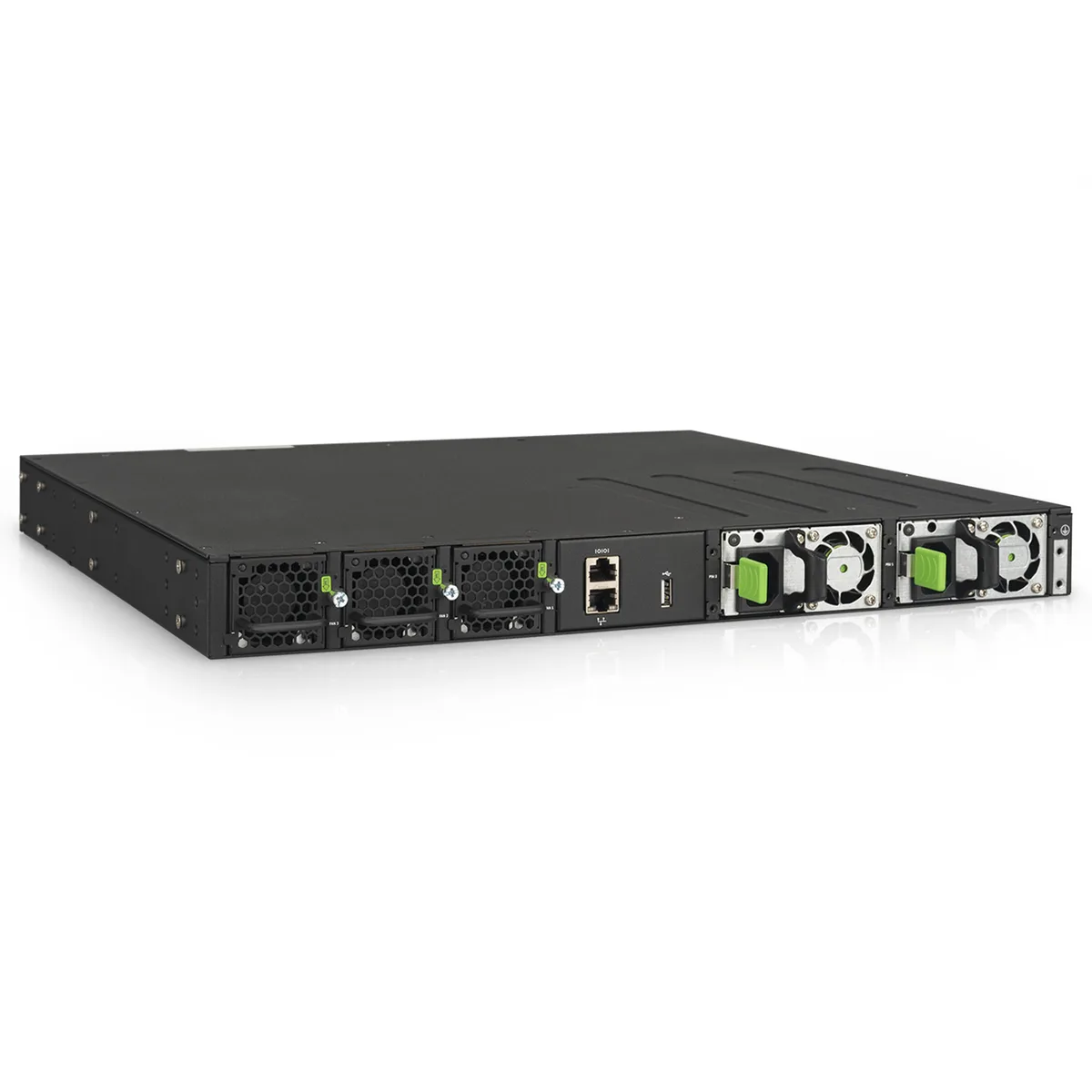

Three included fans provide front-to-back cooling across the chassis under normal load. The dual 1200 W AC power supplies share the load, drawing only what the switch and connected PoE devices require up to the rated budget. Power consumption scales with the number of active PoE ports and traffic throughput. Acoustic output will reflect the fan speed needed to maintain safe temperatures in a typical rack environment.

Highlights

  • 24 PoE+ ports power Wi‑Fi 6 and Wi‑Fi 7 access points directly
  • 1900 W PoE budget at 180‑240 VAC supports high‑density wireless deployments
  • 2 × 40 Gbps QSFP+ uplinks enable high‑capacity stacking and aggregation
  • 274 Mpps forwarding rate handles heavy campus traffic loads
  • Stackable Layer 3 design with RIP, ECMP and static routing scales with network growth

Specifications

BrandRuckus
ModelICX7550
Part NumberICX7550-24P-E2
FormatStackable
Standards802.1AB LLDP
802.1D MAC Bridging
802.1p Mapping to Priority Queue
802.1s Multiple Spanning Tree (MST)
802.1w Rapid Reconfiguration of Spanning Tree
802.1x Port-based Network Access Control (PNAC)
802.3 Carrier Sense Multiple Access/Collision Detection (CSMA/CD)
802.3ab 1000BASE-T
802.1 AX-2008 Link Aggregation
802.3ae 10 Gigabit Ethernet
802.3af Power over Ethernet
802.3at Power over Ethernet Plus
802.3bt 4-Pair Power over Ethernet
802.3u 100Base-TX
802.3x Full duplex and Flow Control
802.3z 1000Base-SX/LX
802.3bz Multi-gigabit Ethernet
802.3 MAU MIB (RFC 2239)
802.3ba 40 and 100 Gbp
Primary Ports24 x RJ45
Management FeatureDHCP Auto Configuration
Configuration Logging
Digital Optical Monitoring
Display Log Messages on Multiple Terminals
Embedded Web Management (HTTP/HTTPS)
Embedded DHCP Server
Industry-standard Command Line Interface (CLI)
RUCKUS SmartZone, RUCKUS One, RUCKUS
Unleashed
Easy activation of optional software features
USB file management and storage
Boot from USB storage
Macro for batch execution
Out-of-band Ethernet Management
ERSPAN support for remote traffic monitoring
RSPAN
TFTP
TELNET Client and Server
Bootp
SNMPv1/v2c
DHCP Server and DHCP Relay
SNMPv3 Intro to Framework
SNMP Message
Packet Forwarding RateForwarding capacity (data rate, full duplex): 274 Mpps
SecurityMACsec*
802.1X authentication
MAC authentication
Flexible authentication
Web authentication
DHCP snooping
Dynamic ARP inspection
Neighbor Discovery (ND) Inspection
Tri-level Access Mode (EXEC, Privileged EXEC and
Global Configuration)
EAP pass-through support
EEE 802.1X username export in sFlow
Protection against Denial of Service (DoS) attacks
Authentication, Authorization, and Accounting (AAA)
MAC Address Locking MAC Port Security
Advanced Encryption Standard (AES) with SSHv2
RADIUS/TACACS/TACACS+
Secure Copy (SCP)
Secure Shell (SSHv2)
Local Username/Password
Change of Authorizatio
PoEYes
StackableYes
QoSACL Mapping and Marking of ToS/DSCP (CoS)
ACL Mapping and Marking of 802.1p
ACL Mapping to Priority Queue
Classifying and Limiting Flows Based on TCP Flags
DiffServ Support
Honoring DSCP and 802.1p (CoS)
MAC Address Mapping to Priority Queue
Priority Queue Management using Weighted Round Robin
(WRR), Strict Priority (SP), and a combination of WRR and SP
Layer3
Layer 2 Features802.1s Multiple Spanning Tree
802.1x Authentication
Auto MDI/MDIX
BPDU Guard, Root Guard
Dual-Mode VLANs
MAC-based VLANs, Dynamic MAC-based VLAN activation
Dynamic Voice VLAN Assignment
Dynamic VLAN Assignment
Fast Port Span
MVRP: Multiple VLAN Registration Protocol
IGMP Snooping (v1/v2/v3)
IGMP Proxy for Static Groups
IGMP v2/v3 Fast Leave
Inter-Packet Gap (IPG) adjustment
Link Fault Signaling (LFS)
MAC Address Filtering
MAC Learning Disable
MLD Snooping (v1/v2)
Multi-device Authentication
Per-VLAN Spanning Tree (PVST/PVST+/PVRST)
Mirroring - Port-based, ACL-based, MAC Filter-based
Layer 3 FeaturesBASE LAYER 3 IP ROUTING
IPv4 and IPv6 static routes
RIP v1/v2, RIPng
ECMP
Port-based Access Control Lists
Layer 3/Layer 4 ACLs
Host routes
Virtual Interfaces
Routed Interfaces
Route-only Support
Routing Between Directly Connected Subnets
BGP EVPN VXLAN
PoE Ports24 x PoE
PowerPower inlet: C14 (AC), Dinkle 2EHDP-03P (DC)
Input voltage/frequency: AC: 100 to 240 VAC @ 50 to 60 Hz | DC: 40 to 60 VDC
PoE power budget (AC) (two AC power supplies): 1624 W (100-180V), 1900 W (180-240V)
Switch power consumption (25 degrees Celsius): 68.5 W (10% traffic (no PoE load)), 1123.7 W (100% traffic (full PoE
load)).
Shipping weight4.54 kg
Package size508 × 508 × 305 mm

Questions about this item

What comes in the box and what must be bought separately?

The bundle includes two 1200 W AC power supplies and three fans with front-to-back airflow; port modules are sold separately.

Which capacity should I choose for the uplink and stacking ports?

The switch provides two 40 Gbps QSFP+ dual-mode ports for uplink or stacking; no other capacity is offered on this model.

What does the 274 Mpps forwarding rate mean in practice?

It is the full-duplex packet forwarding capacity of the switch, indicating the maximum rate at which it can process and forward packets across all ports.
