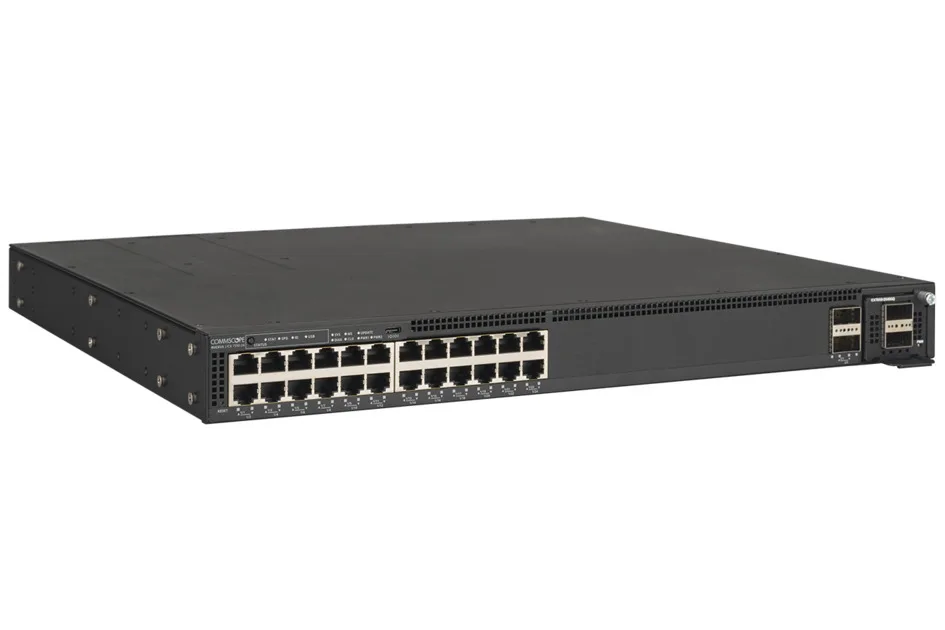

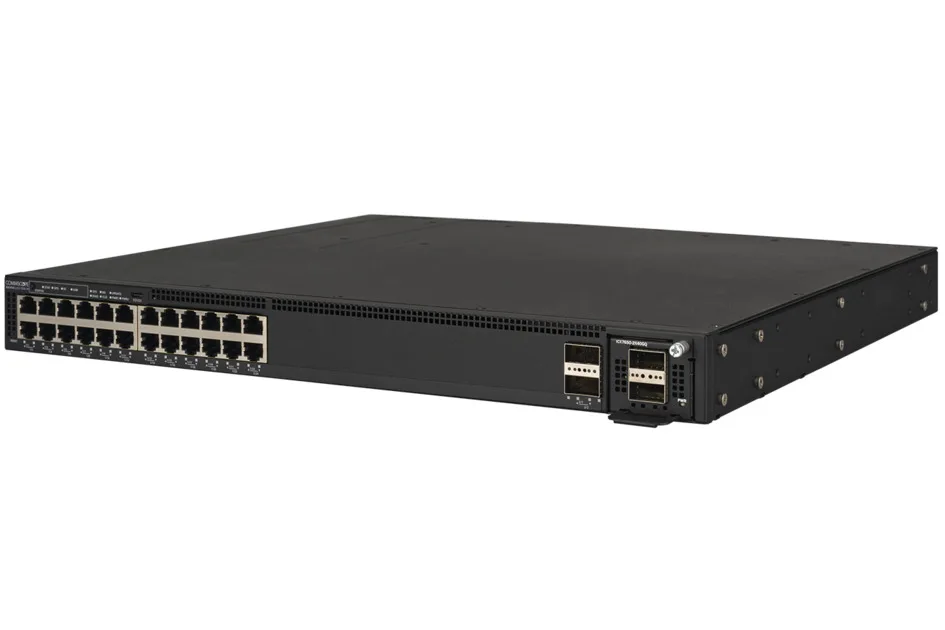

Rack-mount 1RU network switch, matte black metal chassis, twenty-four front RJ-45 ports, two QSFP+ uplinks

RUCKUS WIRELESS

RUCKUS WIRELESS ICX7550-24-E2 24-port 1G stackable network switch, 2 AC PSU exhaust airflow

SKU CH-R8BG-9K9QZ MPN ICX7550-24-E2

A 24-port Gigabit stackable switch with dual AC power supplies and exhaust airflow for enterprise access and aggregation

  • Format1RU
  • Primary PortsInterfaces: 24-port 10/100/1000 Mbps; 2-port 40 Gbps Uplink/
  • Buffer MemoryRAM / Total Installed Size: 4 GB Flash Memory / Installed Si
  • PowerPower / Device Type: Power Supply Power / Installed Qty: 2 P
  • TemperatureMin Operating Temperature: 0 Celsius Max Operating Temperatu
  • FeaturesBroad range of unified management options for maximum flexib
  • 24 gigabit ports connect every wired device
  • dual 40 Gbps QSFP+ uplinks enable high-speed stacking
  • two AC power supplies provide built-in redundancy
  • exhaust airflow keeps the rack cool under load
  • MACsec 128-bit and 256-bit encryption protects data in transit

24-port Gigabit Stackable Switch

The RUCKUS WIRELESS ICX7550-24-E2 is a 1RU enterprise-class switch with twenty-four 10/100/1000BASE-T ports and two 40 Gbps QSFP+ uplink/stacking ports. Dual AC power supplies with exhaust airflow are installed. It includes 4 GB RAM and 4 GB flash memory for system operation. Broad unified management options provide configuration flexibility for campus networks.

Suited for Wi-Fi 6 Access Layers

This switch suits organisations deploying Wi-Fi 6 access points that require PoE+ or 802.3bt power up to 90 W per port. Advanced Layer 3 routing and MACsec 128-bit or 256-bit encryption support secure, segmented traffic. Buyers needing higher-density multigigabit copper ports or 100 GbE uplinks without additional modules should evaluate other platforms.

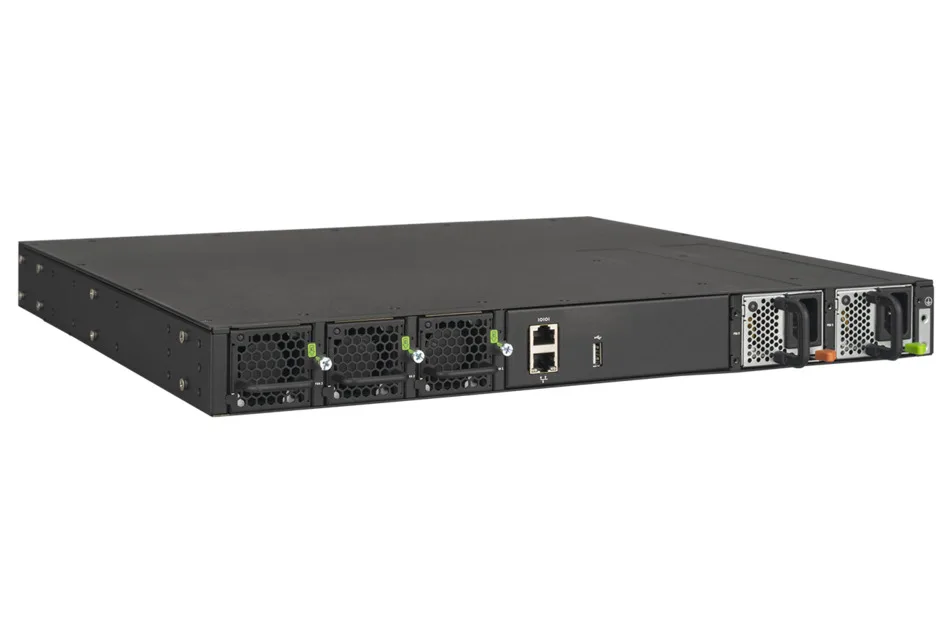

Dual AC Power Supplies with Exhaust Airflow

The unit ships with two AC power supplies operating at 100–240 VAC 50–60 Hz or 40–60 VDC. Exhaust airflow directs heat out the rear, matching standard hot-aisle containment layouts. Operating temperature range is 0–45 °C; storage range is –40–70 °C. Verify rack airflow design matches exhaust direction before purchase.

Highlights

  • 24 gigabit ports connect every wired device
  • dual 40 Gbps QSFP+ uplinks enable high-speed stacking
  • two AC power supplies provide built-in redundancy
  • exhaust airflow keeps the rack cool under load
  • MACsec 128-bit and 256-bit encryption protects data in transit

Specifications

BrandRuckus
Part NumberICX7550-24-E2
Format1RU
Primary PortsInterfaces: 24-port 10/100/1000 Mbps; 2-port 40 Gbps Uplink/Stack QSFP+, expansion module slot
10/100/1000BASE-T Ports: 24
Buffer MemoryRAM / Total Installed Size: 4 GB
Flash Memory / Installed Size: 4 GB
PowerPower / Device Type: Power Supply
Power / Installed Qty: 2
Power / Voltage Required: AC: 100 to 240 VAC 50 to 60 Hz | DC: 40 to 60 VDC
TemperatureMin Operating Temperature: 0 Celsius
Max Operating Temperature: 45 Celsius
Min Storage Temperature: -40 Celsius
Max Storage Temperature: 70 Celsius
FeaturesBroad range of unified management options for maximum flexibility
Shipping weight10.57 kg
Package size440 × 406 × 44 mm

Questions about this item

What rack depth and airflow clearance does the 1RU ICX7550-24-E2 with exhaust airflow require?

The switch occupies 1RU and uses rear exhaust airflow; allow space behind the chassis for hot air to exit and ensure the rack can supply 100-240 VAC or 40-60 VDC to both power supplies.

Which step is often missed when stacking two ICX7550-24-E2 units via the 40 Gbps QSFP+ ports?

After inserting the QSFP+ stacking cables, you must enable stacking in the management interface and reload both switches so they form a single logical stack.

What component will need replacement after several years of continuous operation in a 45 Celsius environment?

The two internal AC power supplies are the primary field-replaceable parts; fans are integrated and not separately serviceable.
