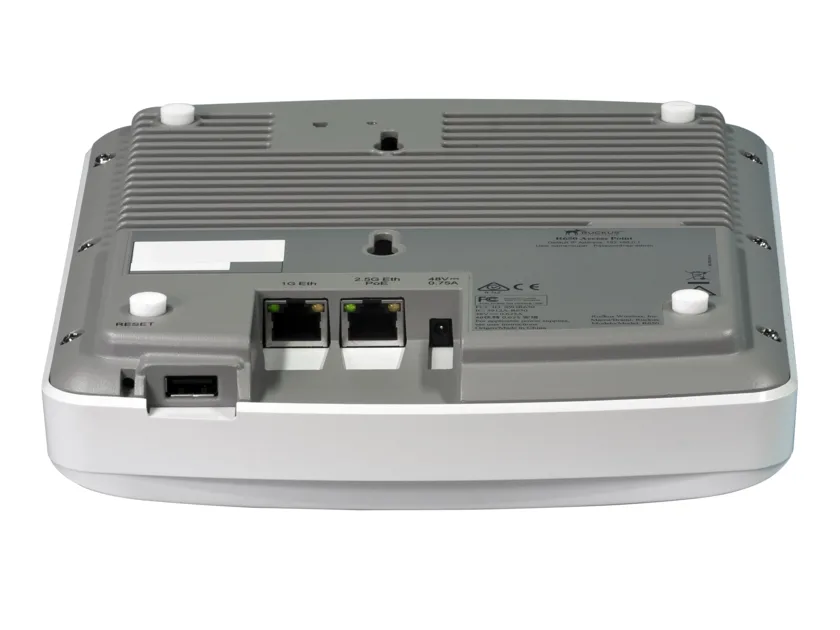

White square ceiling-mount Wi-Fi 6 access point with internal antennas

RUCKUS WIRELESS

RUCKUS WIRELESS 9F1-R650-US00 Wi-Fi 6 access point

SKU CH-87AT-Q0BMD MPN 9F1-R650-US00

Indoor Wi-Fi 6 access point with 2.5 GbE PoE+ uplink, six MU-MIMO streams, 512-client capacity and embedded IoT support

  • StandardsIEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE
  • Frequency BandFrequency Band: 2.4 GHz, 5 GHz Capacity: Maximum number of c
  • AntennaAntenna: Internal Gain Level: 3 dBi
  • Interfacex 2.5 GBase-T (PoE+) - RJ-45 ¦ 1 x 1000Base-T - RJ-45 ¦ 1 x
  • Power SupplyPower Over Ethernet (PoE) Supported: PoE+ Power Consumption
  • TemperatureMin Operating Temperature: 32 °F Max Operating Temperature:

Class WiFi 6

  • WiFi 6
  • WiFi 7

Struck-through versions exist but are not stocked here.

  • Connect more devices with six MU-MIMO spatial streams and dual-band 2.4/5 GHz radios
  • Manage from cloud, on-premises appliances, or controller-free for flexible deployment
  • Extend services beyond Wi-Fi with IoT Suite, Cloudpath security, SPoT locationing and SCI analytics
  • Power via 2.5 GBase-T PoE+ port delivering up to 21.59 W operational consumption
  • Operate reliably from 32 °F to 104 °F in 0-95 % non-condensing humidity

RUCKUS R650 Wi-Fi 6 access point

The RUCKUS 9F1-R650-US00 is an indoor wireless access point built on the Wi-Fi 6 standard. It delivers a maximum data rate of 3 Gbps using six MU-MIMO spatial streams across concurrent 2.4 GHz and 5 GHz radios. The unit supports up to 512 connected clients and 31 configured SSIDs. It is powered through a 2.5 GBase-T PoE+ port and includes a 1000Base-T port plus a USB 2.0 Type A interface.

High-density environments and flexible management

This access point suits offices, schools or venues that need many simultaneous connections and the option to manage the network from the cloud, on-premises appliances or without a controller. Built-in IoT support, Cloudpath onboarding, SPoT locationing and SCI analytics extend its role beyond basic Wi-Fi. Buyers who require outdoor-rated hardware, 6 GHz spectrum or a 10 Gbps uplink should consider other models.

PoE+ deployment with mounting choices

The R650 draws 21.59 W from a PoE+ source and operates between 32 °F and 104 °F in humidity up to 95 %. Internal antennas provide 3 dBi gain. The chassis can be wall-mounted or ceiling-mounted, and the USB 2.0 port allows local sensor or storage expansion. VLAN tagging, ACLs, WIDS/WIPS, LDPC and GRE tunnelling are supported for secure, segmented networks.

Highlights

  • Connect more devices with six MU-MIMO spatial streams and dual-band 2.4/5 GHz radios
  • Manage from cloud, on-premises appliances, or controller-free for flexible deployment
  • Extend services beyond Wi-Fi with IoT Suite, Cloudpath security, SPoT locationing and SCI analytics
  • Power via 2.5 GBase-T PoE+ port delivering up to 21.59 W operational consumption
  • Operate reliably from 32 °F to 104 °F in 0-95 % non-condensing humidity

Specifications

BrandRuckus
Part Number9F1-R650-US00
StandardsIEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ax, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, UL 2043, RoHS, EN 60950-1, WEEE, EN 60601-1-2, EN 62311, EN 50121-4, IEC 61373, EN 50121-1, ISTA 2A
Frequency BandFrequency Band: 2.4 GHz, 5 GHz
Capacity: Maximum number of configured SSIDs: 31 ¦ Maximum number of clients: 512
AntennaAntenna: Internal
Gain Level: 3 dBi
Interfacex 2.5 GBase-T (PoE+) - RJ-45 ¦ 1 x 1000Base-T - RJ-45 ¦ 1 x USB 2.0 - Type A
Power SupplyPower Over Ethernet (PoE) Supported: PoE+
Power Consumption Operational: 21.59 Watt
TemperatureMin Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity0 - 95% (non-condensing)
FeaturesVLAN support, wall mountable, WISP mode, Wireless Intrusion Detection System (WIDS), Access Control List (ACL) support, Low Density Parity Check (LDPC), GRE tunneling, ceiling mountable, Wireless Intrusion Prevention System (WIPS), Captive Portal, BeamFlex+ Smart Antenna Technology, Smart QoS, Airtime Fairness, STBC support, ChannelFly, SmartMesh, Polarization Diversity with Maximal Ratio Combining (PD-MRC), 4x4:4 MU-MIMO technology, L2TP support, HotSpot 2.0, IPv4 and IPv6 dual stack, SoftGRE tunneling, WMM Power Save, Bluetooth (BLE) clients support, SmartRoam, Spectrum Analysis, S
Shipping weight1.11 kg
Package size224 × 193 × 48 mm

Questions about this item

What PoE standard must my switch support to power the RUCKUS 9F1-R650-US00 without an external adapter?

The access point requires PoE+ (IEEE 802.3at) and draws up to 21.59 W during operation.

Will the 2.5 GBase-T uplink on the RUCKUS 9F1-R650-US00 negotiate down to my existing 1 GbE switch port?

Yes, the 2.5 GBase-T port is backward compatible with 1000Base-T and will link at 1 Gbps when connected to a gigabit switch.

How can I verify the RUCKUS 9F1-R650-US00 is serving clients on both 2.4 GHz and 5 GHz after installation?

Check the management dashboard for active clients on each radio; the AP supports up to 512 concurrent clients across 31 SSIDs.
