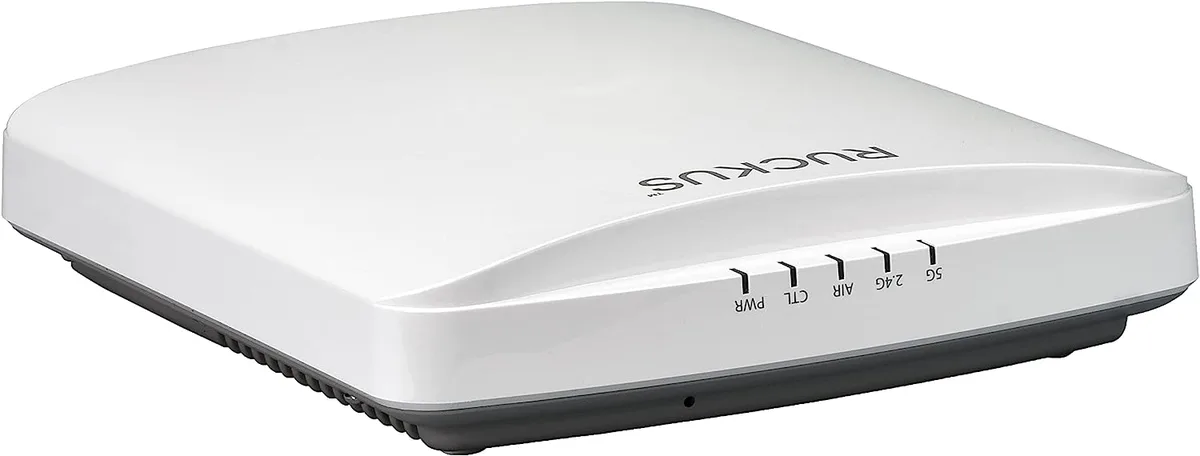

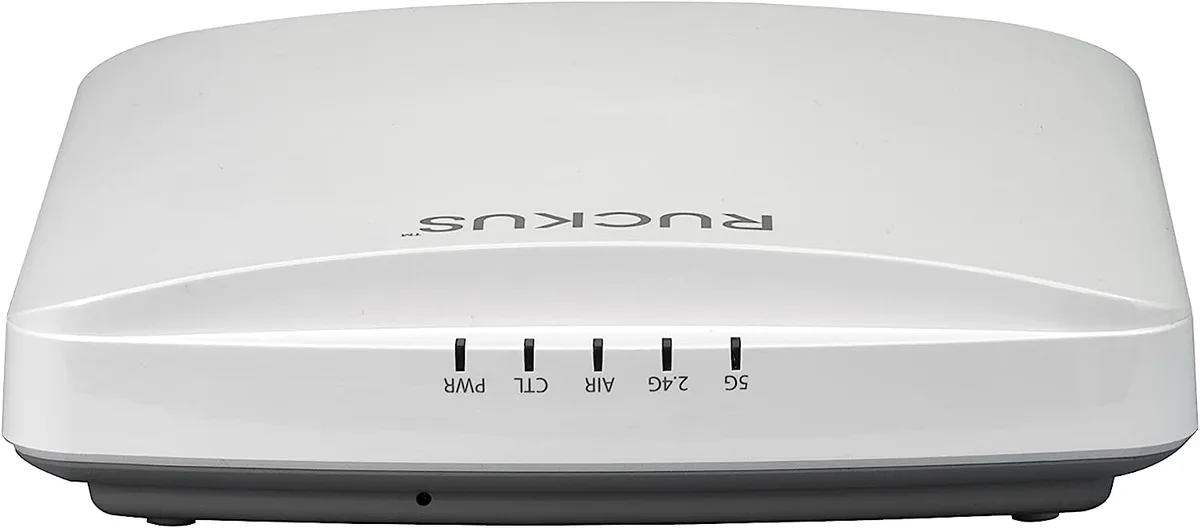

White square indoor wireless access point with internal antennas, flat ceiling-mount design, subtle LED indicator

RUCKUS WIRELESS

RUCKUS WIRELESS 901R650US00 access point

SKU CH-CQGV-8V9C3 MPN 901R650US00

Indoor wireless access point supporting IEEE 802.11a/b/g/n/ac/ax with dual-band 2.4 GHz and 5 GHz, 4x4:4 MU-MIMO, BeamFlex+ adaptive antennas, 2.5 Gbps PoE+ uplink, and built-in BLE and Zigbee radios

  • StandardsNetworking Compliant Standards: Wi-Fi Standards IEEE 802.11a
  • Wireless Data RatesData Transfer Rate: 1 Gbps; 2.5 Gbps Data Link Protocol: Gig
  • Frequency Band2.4 GHz; 5 GHz
  • AntennaAntenna Form Factor: Internal Antenna Gain Level: 3 DBi
  • Interface1 x 1000Base-T - RJ-45, 1 x 2.5 GBase-T (PoE+) - RJ-45, 1 x
  • Power Supply21.59 Watt
  • Extended coverage with BeamFlex+ adaptive antenna patterns
  • Simultaneous device connections via six MU-MIMO spatial streams
  • Unified Wi-Fi, BLE and Zigbee on one platform
  • Automatic channel optimisation with ChannelFly machine learning
  • Flexible cloud, on-premises or controller-less management

Dual-band indoor access point

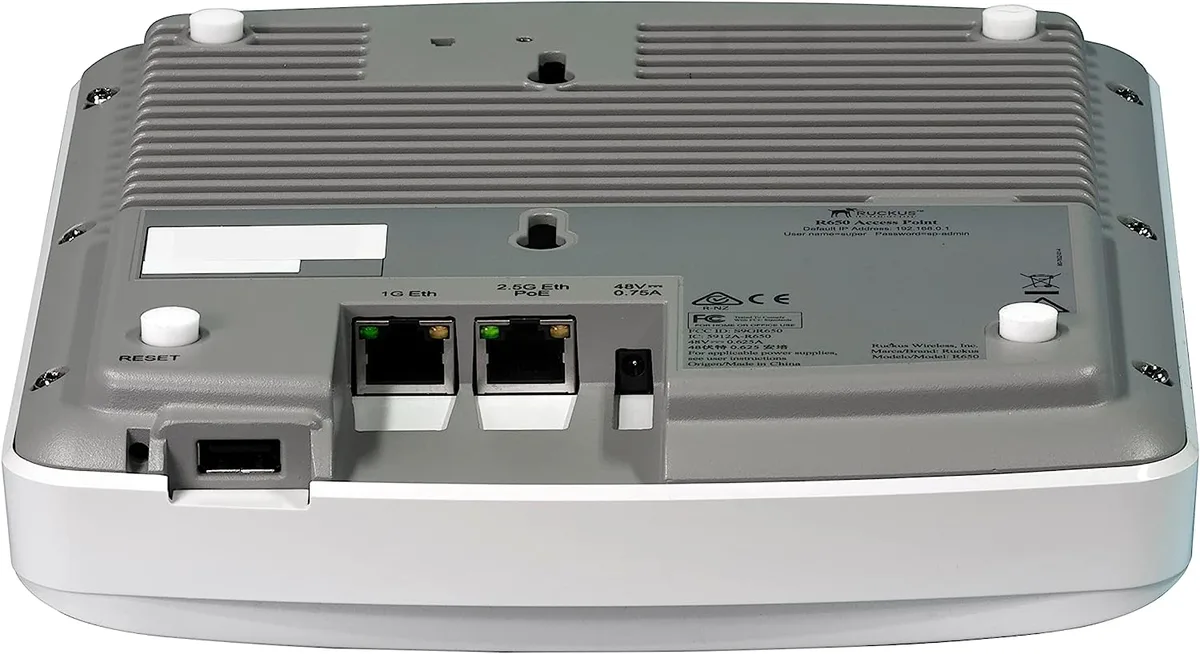

The Ruckus 901-R650-US00 supports IEEE 802.11a/b/g/n/ac/ax standards on 2.4 GHz and 5 GHz bands. It delivers wireless data rates of 1 Gbps and 2.5 Gbps through internal antennas with 3 DBi gain. The unit includes a 2.5 GBase-T PoE+ port, a 1000Base-T port, and a USB 2.0 Type A interface.

Suits high-density deployments

This access point serves environments needing simultaneous connections with six MU-MIMO spatial streams and BeamFlex+ adaptive antenna technology. It supports Bluetooth Low Energy and Zigbee for converged IoT networks. ChannelFly dynamic channel selection uses machine learning to optimise throughput. Buyers requiring outdoor-rated hardware or ceiling-mount brackets not included in the base unit should consider alternatives.

PoE+ powered with 21.59 W max draw

The R650 operates on PoE+ via the 2.5 GBase-T RJ-45 port with a maximum power consumption of 21.59 Watt. It functions across a temperature range of 32 to 104 degrees Fahrenheit and 0 to 95 percent non-condensing humidity. Compliance certifications include UL 2043, RoHS, and WEEE for plenum and environmental safety.

Highlights

  • Extended coverage with BeamFlex+ adaptive antenna patterns
  • Simultaneous device connections via six MU-MIMO spatial streams
  • Unified Wi-Fi, BLE and Zigbee on one platform
  • Automatic channel optimisation with ChannelFly machine learning
  • Flexible cloud, on-premises or controller-less management

Specifications

BrandRuckus
Part Number901-R650-US00
StandardsNetworking Compliant Standards: Wi-Fi Standards IEEE 802.11a/b/g/n/ac/ax
Wireless Data RatesData Transfer Rate: 1 Gbps; 2.5 Gbps
Data Link Protocol: Gigabit Ethernet; Wi-Fi
Frequency Band2.4 GHz; 5 GHz
AntennaAntenna Form Factor: Internal
Antenna Gain Level: 3 DBi
Interface1 x 1000Base-T - RJ-45, 1 x 2.5 GBase-T (PoE+) - RJ-45, 1 x USB 2.0 - Type A
Power Supply21.59 Watt
Max Power ConsumptionDC Power Consumption: 21.46 W
Max Power Consumption: 21.59 Watt
ComplianceEN 50121-1, EN 50121-4, EN 60601-1-2, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, EN 62311, IEC 61373, ISTA 2A, RoHS, UL 2043, WEEE
TemperatureMax Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Humidity0 - 95% (non-condensing)
Features4x4:4 MU-MIMO technology, Access Control List (ACL) support, Adaptive band balancing, Airtime Fairness, Application recognition and control, Background scan based, BeamFlex+ Smart Antenna Technology, Bluetooth (BLE) clients support, Captive Portal, ChannelFly, Client load balancing, Device fingerprinting, HotSpot 2.0, IPv4 and IPv6 dual stack, Low Density Parity Check (LDPC), Polarization Diversity with Maximal Ratio Combining (PD-MRC), Smart QoS, SmartMesh, SmartRoam, SmartZone, Spectrum Analysis, SpeedFlex, STBC support, VLAN pooling, VLAN support, Wireless Intrusion Detection Syst
Shipping weight1.07 kg
Package size224 × 193 × 48 mm
