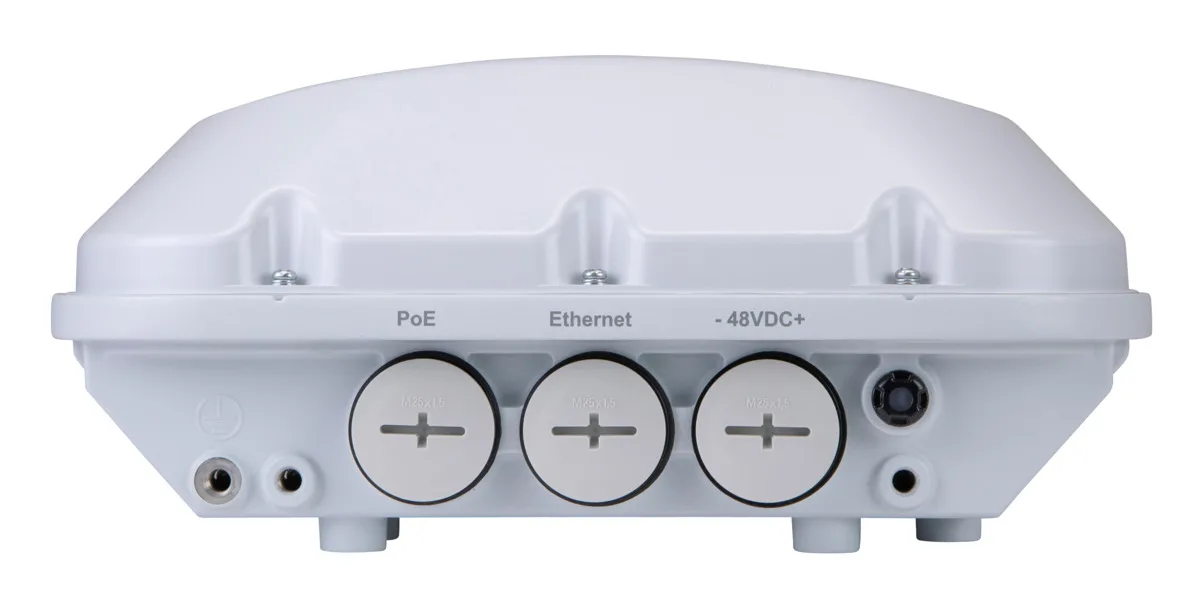

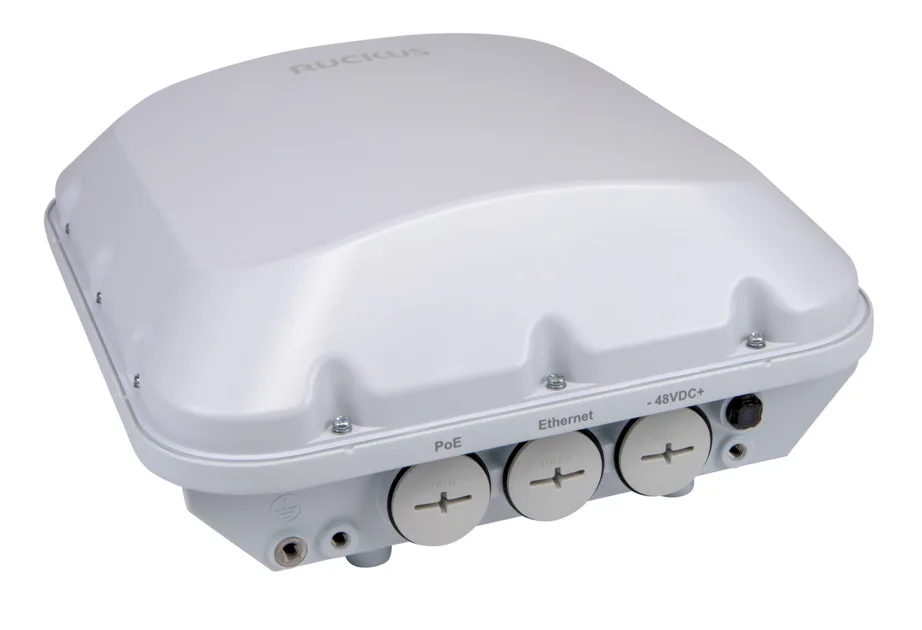

White rectangular outdoor Wi-Fi 7 access point with internal antennas

RUCKUS WIRELESS

RUCKUS WIRELESS 901-T670-US01 access point

SKU CH-BKFX-E8NCA MPN 901-T670-US01

Tri-band outdoor Wi-Fi 7 access point reaching 9.3 Gbps with internal 4 dBi antennas, 2×2 MU-MIMO, BeamFlex+ smart antenna tech and UPOE/PoH/PoE+ power over a 5GBase-T port, rated for -40 °F to 149 °F

  • Standards2.4 GHz, 5 GHz, 6 GHz Network Device: Maximum data rate (2.4
  • Wireless Data RatesWireless LAN: 802.11a/b/g/n/ac/ax/be
  • AntennaAntenna Form Factor: Internal Gain: 4dBi
  • Interface1 x 1/2.5/5GBase-T (PoE) - RJ-45, 1 x 1000Base-T - RJ-45
  • Power SupplyPower Over Ethernet (PoE): UPOE / PoH / PoE+
  • TemperatureMax Operating Temperature: 149 °F Min Operating Temperature:
  • Tri-band Wi-Fi 7 covers 2.4, 5 and 6 GHz bands
  • 3 Gbps maximum aggregate data rate for high-density venues
  • BeamFlex+ smart antenna system focuses signal for better throughput
  • Internal 4 dBi antenna gain improves outdoor coverage
  • IP-rated enclosure operates from -40 °F to 149 °F

Tri-band Wi-Fi 7 outdoor AP

The Ruckus T670 is a new tri-band wireless access point built for outdoor deployment. It operates across 2.4 GHz, 5 GHz and 6 GHz radios using Wi-Fi 7 technology. Internal antennas with 4 dBi gain and BeamFlex+ smart antenna technology direct signal toward clients. The unit is powered by UPOE, PoH or PoE+ over a 1/2.5/5GBase-T RJ-45 port and includes a second 1000Base-T RJ-45 interface.

High-density venues needing tri-band 6 GHz

This AP suits stadiums, public venues and smart-city installations that require low latency and high throughput across three bands. It is rated for temperatures from -40 °F to 149 °F and 95 % non-condensing humidity. Buyers who need only dual-band 2.4 GHz and 5 GHz coverage, or who cannot supply UPOE, PoH or PoE+ power, should consider other models. Indoor-only deployments also fall outside its intended use.

9.3 Gbps maximum aggregate data rate

The combined peak rate reaches 9.3 Gbps, with 689 Mbps on 2.4 GHz and 5765 Mbps on each 5 GHz and 6 GHz radio. This figure determines whether the AP can meet the capacity demands of a given high-density environment.

Highlights

  • Tri-band Wi-Fi 7 covers 2.4, 5 and 6 GHz bands
  • 3 Gbps maximum aggregate data rate for high-density venues
  • BeamFlex+ smart antenna system focuses signal for better throughput
  • Internal 4 dBi antenna gain improves outdoor coverage
  • IP-rated enclosure operates from -40 °F to 149 °F

Specifications

BrandRuckus
Part Number901-T670-US01
Standards2.4 GHz, 5 GHz, 6 GHz
Network Device: Maximum data rate (2.4 GHz): 689 Mbps, Maximum data rate (5 GHz): 5765 Mbps, Maximum data rate (6 GHz): 5765 Mbps
EN 50121-1, EN 50121-4, EN 60601-1-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, EN 62311, IEC 61373, IEC/EN/UL 60950-1, IEC/EN/UL 62368-1, ISTA 2A, RoHS, WEEE
Wireless Data RatesWireless LAN: 802.11a/b/g/n/ac/ax/be
AntennaAntenna Form Factor: Internal
Gain: 4dBi
Interface1 x 1/2.5/5GBase-T (PoE) - RJ-45, 1 x 1000Base-T - RJ-45
Power SupplyPower Over Ethernet (PoE): UPOE / PoH / PoE+
TemperatureMax Operating Temperature: 149 °F
Min Operating Temperature: -40 °F
Humidity95% (non-condensing)
Features2x2 MU-MIMO technology, 2x2 SU-MIMO technology, Access Control List (ACL) support, Adaptive band balancing, Airtime Fairness, Background scan based, BeamFlex+ Smart Antenna Technology, Captive Portal, ChannelFly, Client load balancing, Device fingerprinting, GRE tunneling, Guest access, HotSpot 2.0, IPv4 and IPv6 dual stack, LLDP support, Low Density Parity Check (LDPC), Multi-Link Operation (MLO), Polarization Diversity with Maximal Ratio Combining (PD-MRC), Port-based VLAN, Preamble puncturing, QoS, Quad-stream (4x4), Rate limit, Secure Boot, Self-healing network, SmartMesh, SmartR
Shipping weight3.74 kg
Package size249 × 239 × 109 mm

Questions about this item

What mounting hardware is required for the Ruckus 901-T670-US01?

The access point is designed for outdoor installation and operates from -40 °F to 149 °F with 95 % non-condensing humidity, so a pole or wall bracket rated for that temperature range and weather exposure is needed.

How do I power the 901-T670-US01 during setup?

Connect the 1/2.5/5GBase-T RJ-45 port to a UPOE, PoH or PoE+ injector or switch; the unit draws power through that single cable and the second 1000Base-T port remains available for a wired downlink.

When should the internal antennas on the T670 be inspected?

The 4 dBi internal antennas are sealed inside the IP-rated enclosure; no routine antenna maintenance is required unless physical damage to the housing is visible after severe weather or impact.
