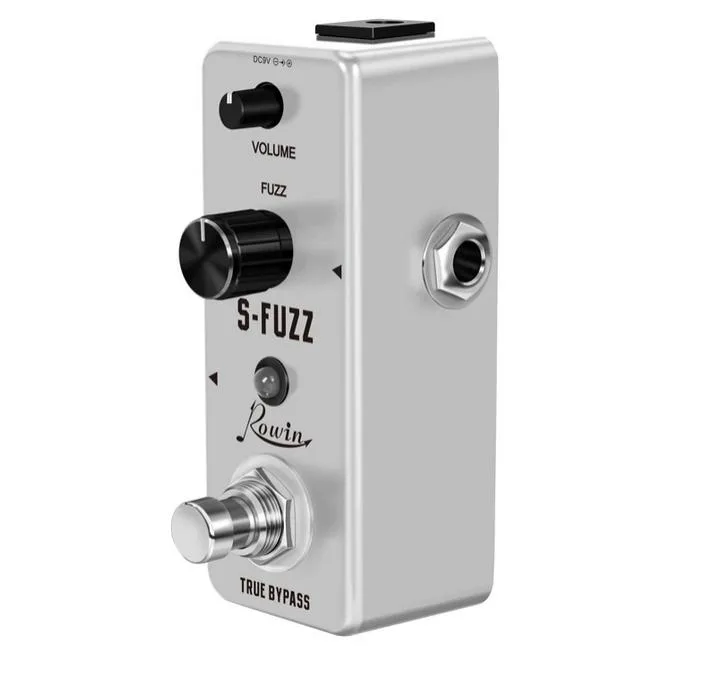

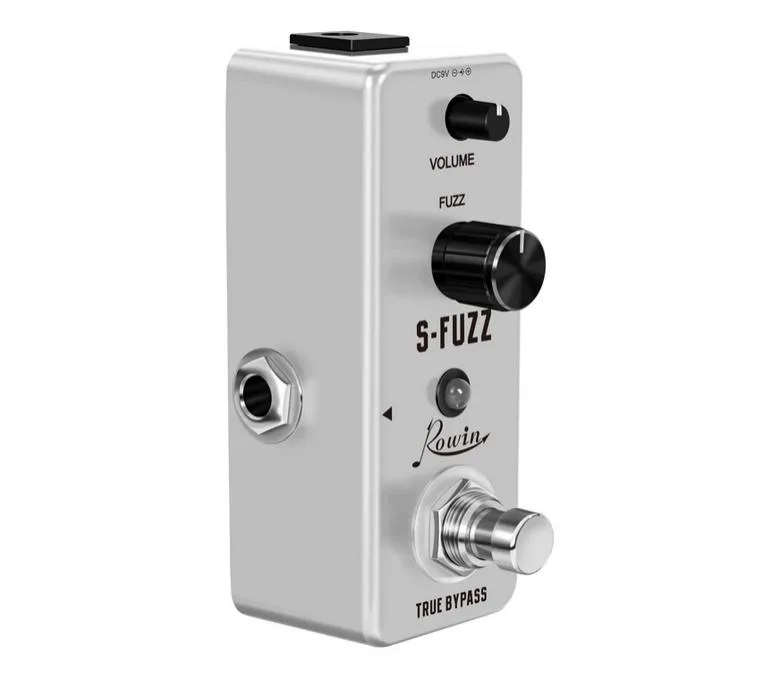

Small rectangular metal guitar pedal with two knobs and a footswitch

rowin

Rowin LEF-325 S-FUZZ Analog Guitar Pedal

SKU CH-5MYB-7WMJ9

Delivers classic analog fuzz with true bypass in a compact zinc-alloy enclosure

  • TypeS-FUZZ PEDAL
  • Accessory TypeEffects Pedals - S-FUZZ
  • FinishFull Metal Case
  • Body StyleMini Size
  • Body MaterialsMetal
  • Back & SideMetal
  • Classic analog fuzz delivers plump, rich tone
  • True bypass keeps signal transparent when off
  • Zinc-alloy metal case withstands stage use
  • Mini 95×45×48 mm size saves pedalboard space
  • Runs on 9 V DC negative-centre power only

Rowin LEF-325 S-Fuzz Analogue Pedal

The Rowin LEF-325 S-Fuzz is an analogue guitar effect pedal built in a full zinc-alloy mini enclosure. It delivers classic fuzz tones shaped by dedicated Volume and Fuzz knobs. True bypass switching keeps the signal path clean when the effect is off. A DC 9 V centre-negative supply is required; battery operation is not supported.

Sustained fuzz character under load

Under continuous playing the analogue circuit maintains a plump, rich fuzz texture without the harshness that can appear in short bursts. The true-bypass footswitch and LED indicator operate reliably during extended sets. Current draw sits at 26 mA, so a standard pedalboard supply handles the load easily.

Check power and board space before ordering

Verify your pedalboard power supply provides a 9 V DC centre-negative output, as no battery clip is fitted. The mini chassis measures 95 mm deep by 45 mm wide by 48 mm high, so confirm the available footprint on your board. Input impedance is 1 MΩ and output impedance is 100 kΩ for standard instrument-level connection.

Highlights

  • Classic analog fuzz delivers plump, rich tone
  • True bypass keeps signal transparent when off
  • Zinc-alloy metal case withstands stage use
  • Mini 95×45×48 mm size saves pedalboard space
  • Runs on 9 V DC negative-centre power only

Specifications

BrandROWIN
SeriesGUITAR EFFECT PEDAL
ModelROWIN LEF-325 S-FUZZ
Part NumberLEF325
TypeS-FUZZ PEDAL
Accessory TypeEffects Pedals - S-FUZZ
FinishFull Metal Case
Body StyleMini Size
Body MaterialsMetal
Back & SideMetal
TopMetal
Neck MaterialsMetal
Fretboard MaterialsPCB Board
Output Power26mA
Inputs1m Ohms
Outputs100k Ohms
Power SupplyDC 9V Negative Center
SpecificationGUITAR EFFECT PEDAL
FeatureANALOG EFFECT PEDAL
Dimension12/6/5cm (with box)
Weight0.22kg
Package ContainsS-FUZZ Pedal / User Manual / Box

Questions about this item

How much current does the LEF-325 S-FUZZ draw when running all day?

The pedal draws 26mA at 9V DC, so a standard isolated power supply will run it continuously without overheating.

What power supply do I need to own before this pedal will work?

You must provide a 9V DC adapter with a negative-centre plug; the unit cannot run on batteries.

Will the true-bypass footswitch on the S-FUZZ keep my vintage amp’s tone clean when the effect is off?

Yes, the true-bypass circuit removes the pedal entirely from the signal path, preserving the amp’s original sound.
