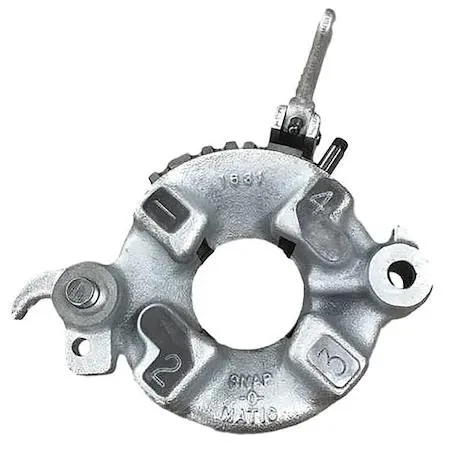

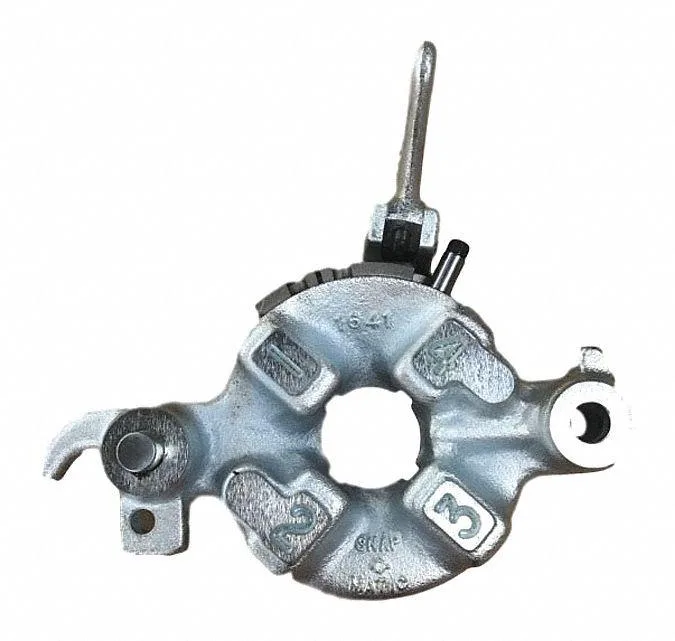

Rothenberger 00063 automatic die head, 3/4 inch, silver metal body with knurled collar and die slots

Rothenberger

Rothenberger 00063 Automatic Die Head 3/4 in

SKU CH-NTMM-P8W11

Automatic die head threads 1/2 to 3/4 in pipe with NPT right-hand dies on Collins threading machines

  • MaterialHAWA
  • Automatic die head threads 1/2 in to 3/4 in pipe efficiently
  • Snap-O-Matic design enables quick die changes without tools
  • Through-the-head oiling lubricates dies during operation automatically
  • High-speed steel dies 00031 and 00227 cut clean NPT threads
  • Compatible with Collins 00579 threading machine for workshop use

What this die head does

The Rothenberger 00063 is an automatic die head for threading pipe up to 3/4 in. It accepts pipe from 1/2 in to 3/4 in and cuts NPT right-hand threads. The Snap-O-Matic head uses high-speed steel dies and features through-the-head oiling for lubrication during operation.

Check your threader and dies first

Verify that your threading machine matches the Collins series and part number 00579. Confirm the dies you own are compatible with numbers 00031 or 00227. The head opening is semi-automatic, so ensure your workflow suits that operation style before ordering.

Replaces worn Snap-O-Matic heads

This unit replaces a damaged or worn automatic die head on the same Collins-compatible threader. The upgrade is worth it when the existing head no longer cuts clean threads or the oiling system has failed. It is not for users who need a different thread type, left-hand threading, or pipe sizes outside the 1/2 in to 3/4 in range.

Highlights

  • Automatic die head threads 1/2 in to 3/4 in pipe efficiently
  • Snap-O-Matic design enables quick die changes without tools
  • Through-the-head oiling lubricates dies during operation automatically
  • High-speed steel dies 00031 and 00227 cut clean NPT threads
  • Compatible with Collins 00579 threading machine for workshop use

Specifications

MaterialHAWA
BrandROTHENBERGER

Questions about this item

What comes with the Rothenberger 00063 die head and what must be purchased separately?

The die head itself is supplied; compatible dies such as 00031 or 00227 and a Collins threading machine matching part 00579 are sold separately.

Which compatible die should I choose for this head?

Use die 00031 or 00227; both fit the Snap-O-Matic head and cut right-hand NPT threads on 1/2 in to 3/4 in pipe.

What does the 3/4 in maximum pipe size mean when the head is on a threading machine?

It sets the largest pipe diameter the head can thread; on a Collins machine it will cut NPT threads up to 3/4 in with through-head oiling.
