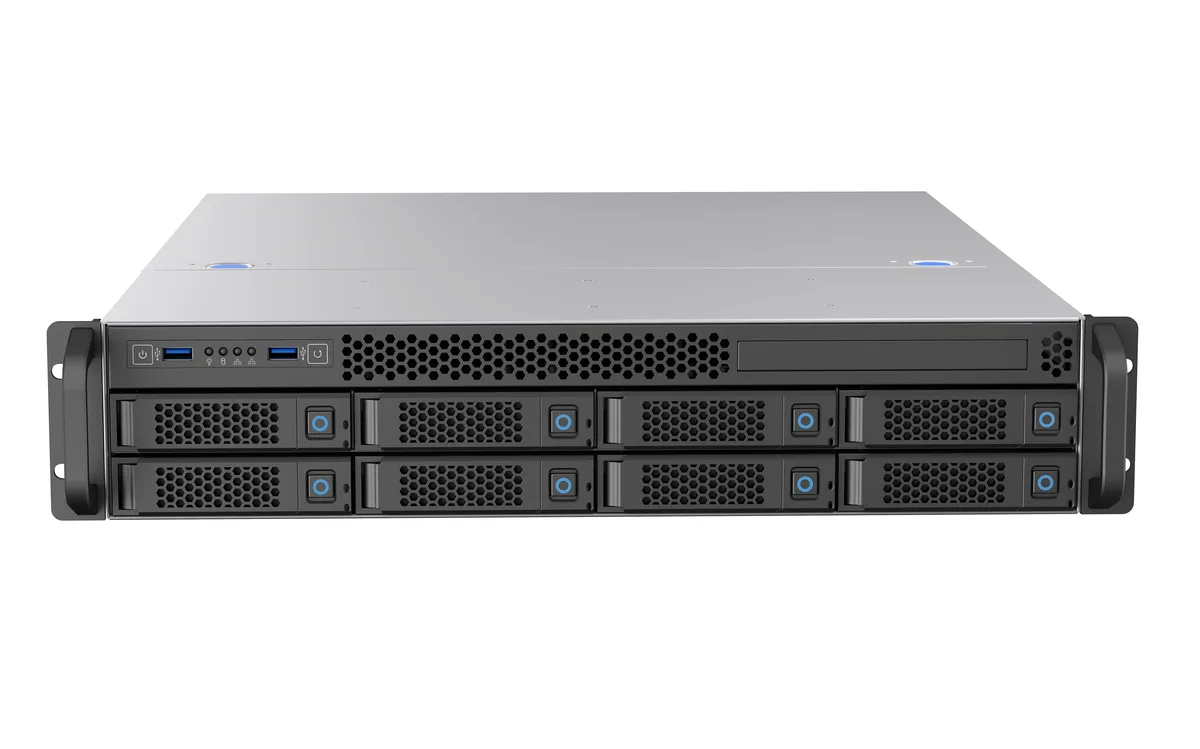

Black and silver 2U rackmount server chassis with eight front hot-swap drive bays and three 80mm fans

Rosewill

Rosewill RSV-H208 2U server chassis 8-bay E-ATX 3x 8038 fan

SKU CH-A4MX-JXJ3Q MPN RSV-H208

A 2U rackmount chassis holding eight hot-swap 3.5-inch SATA or SAS drive bays with three 8038 PWM fans included

  • Chassis TypeRackmount
  • Form Factor2U
  • ColorBlack / Silver
  • Case MaterialSGCC
  • Motherboard Compatibility12" x 13" E-ATX, 12" x 9.6" ATX, 11.2" x 8.2" Mini-ATX and b
  • Power Supply2U /CRPS
  • Eight 12 Gbps hot-swap bays fit in a compact 2U rackmount design
  • E-ATX support up to 12" x 13" enables high-core-count server builds
  • Three hot-swap 8038 PWM fans maintain cooling during maintenance
  • Front USB 3.2 Type-C port speeds external file transfers
  • Seven expansion slots plus 275 mm GPU clearance for add-in cards

Dense 2U storage server chassis

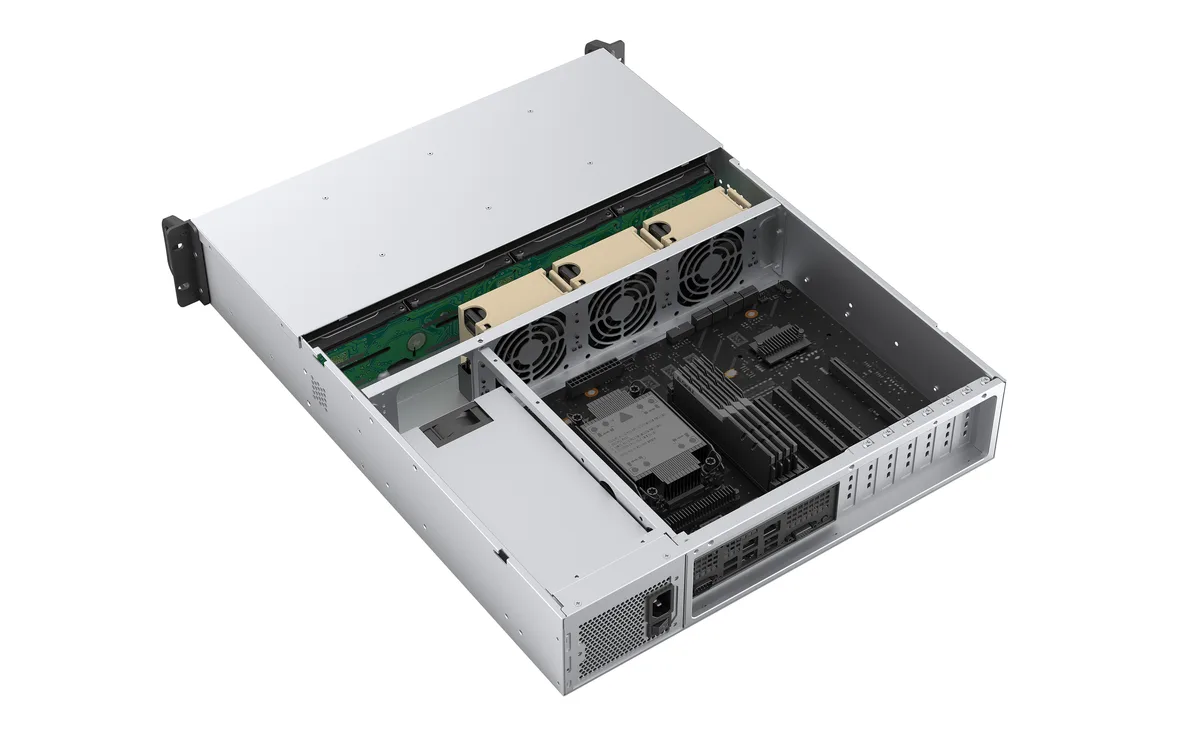

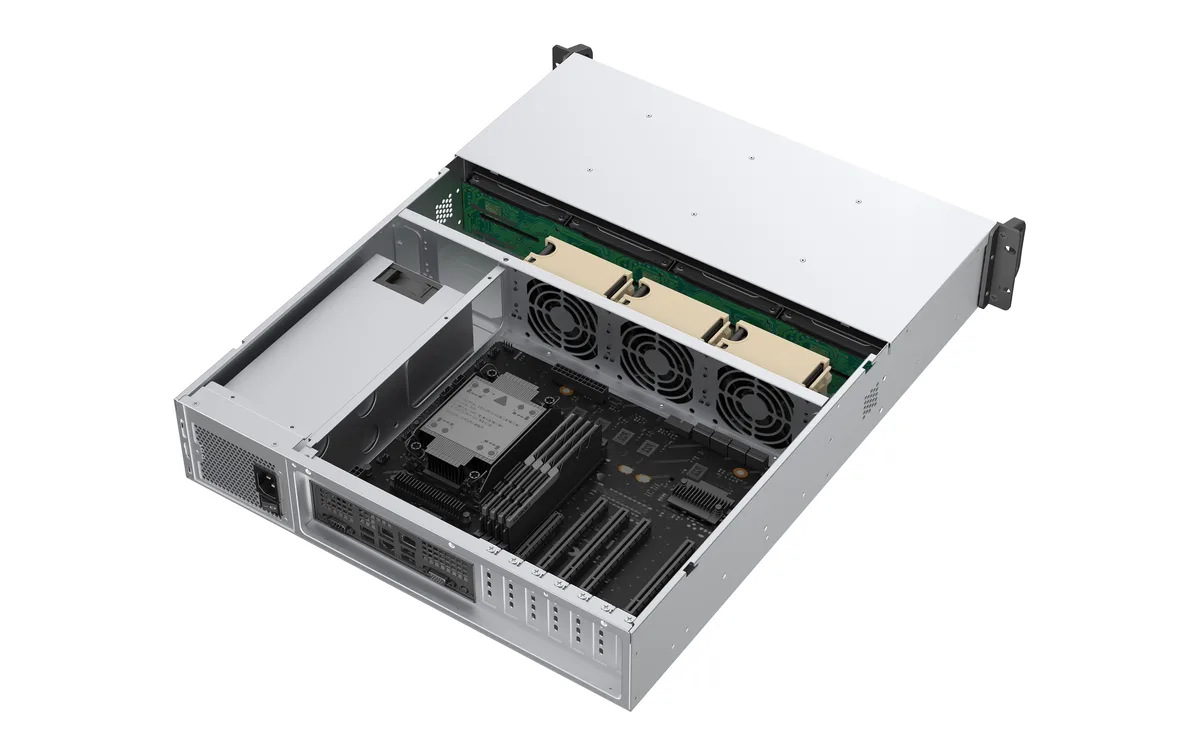

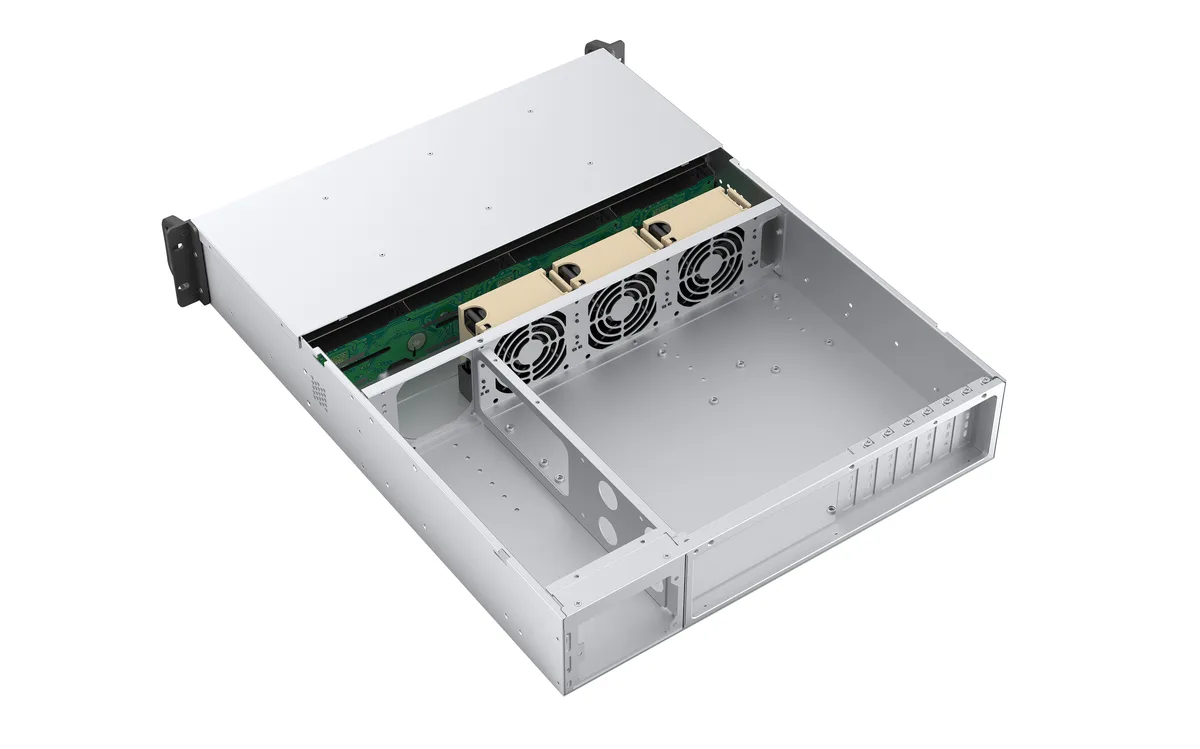

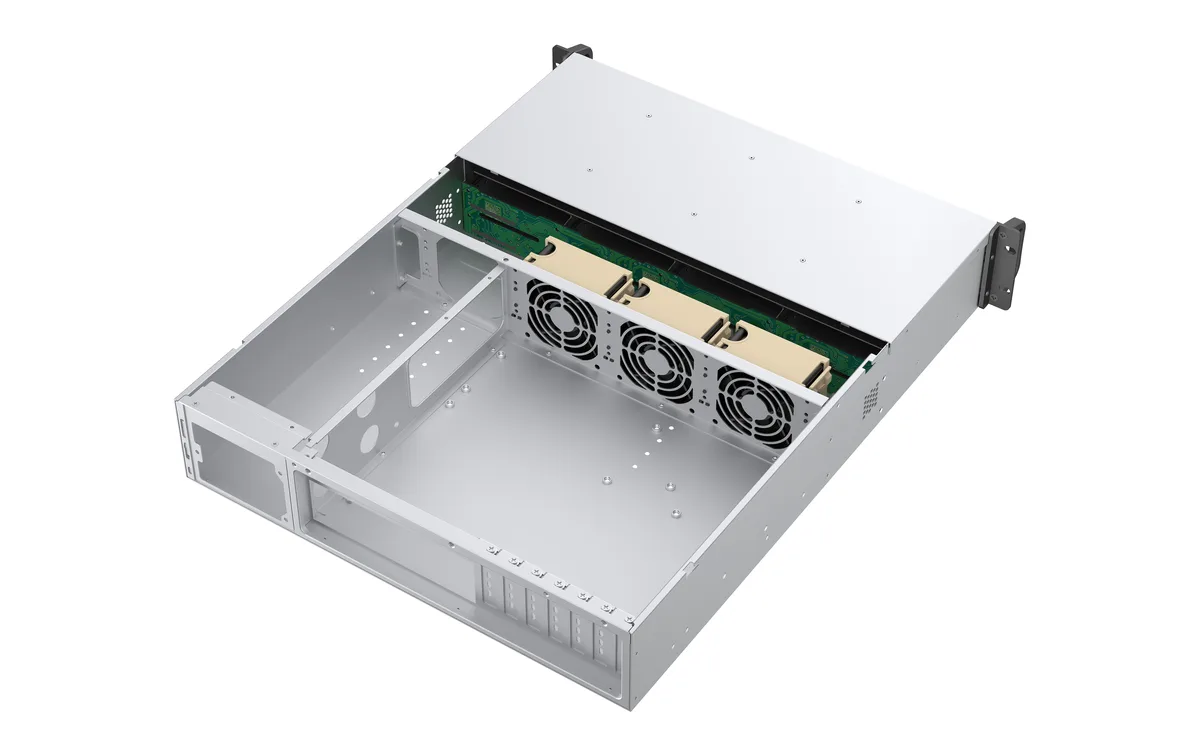

The Rosewill RSV-H208 is a 2U rackmount chassis built for builds that need eight hot-swap 3.5" drive bays in a compact height. It suits storage-heavy workloads such as video editing, virtualization or a primary file server. The open-box unit ships with three 8038 PWM fans pre-installed.

Eight 12Gbps hot-swap bays with SGPIO

The single specification that decides fit is the front bay count and protocol: eight bays wired through SFF8643 backplanes with SGPIO and temperature control, running at 12Gbps for both SATA and SAS drives. No other bay count or speed is offered on this model.

E-ATX board, CRPS supply, 75 mm cooler limit

The chassis accepts motherboards up to 12" x 13" E-ATX, seven expansion slots, and a 2U CRPS power supply up to 280 mm long. CPU coolers must not exceed 75 mm height, and graphics cards are limited to 275 mm length. Front I/O provides one USB 3.0 and one USB 3.2 Type-C port. Builders needing more than eight bays or a taller cooler must choose a different enclosure.

Highlights

  • Eight 12 Gbps hot-swap bays fit in a compact 2U rackmount design
  • E-ATX support up to 12" x 13" enables high-core-count server builds
  • Three hot-swap 8038 PWM fans maintain cooling during maintenance
  • Front USB 3.2 Type-C port speeds external file transfers
  • Seven expansion slots plus 275 mm GPU clearance for add-in cards

Specifications

BrandRosewill
ModelRSV-H208
Chassis TypeRackmount
Form Factor2U
ColorBlack / Silver
Case MaterialSGCC
Motherboard Compatibility12" x 13" E-ATX, 12" x 9.6" ATX, 11.2" x 8.2" Mini-ATX and below
Power Supply2U /CRPS
LED IndicatorsPower status, HDD activity, 2 x Lan activity
Hot-Swap Drive Bays8 (SFF8643 with SGPIO and Temperature Control)
Expansion Slots7
Max CPU Cooler Height75 mm
Max GPU Length275 mm
Max PSU Length280 mm
Front Ports1 x USB 3.0 / 1 x USB 3.2 Type C
Fan OptionsMiddle: 3 x 80mm fans (3 x 8038 Hot PWM fan included)
Shipping weight13.60 kg
Package size810 × 580 × 200 mm

Questions about this item

What does the 12Gbps rating on the eight hot-swap bays actually deliver once drives are installed?

Each bay runs at up to 12Gbps over SAS or SATA through the SFF-8643 backplane, so the full bandwidth is available to every drive simultaneously.

How does the 2U CRPS power supply standard limit the units I can use?

The chassis only accepts 2U CRPS redundant power supplies up to 280 mm long, so standard ATX or 1U units will not fit.

What clearance do I need to fit a CPU cooler and a graphics card in this 2U chassis?

The CPU cooler must be 75 mm or shorter, and any GPU cannot exceed 275 mm in length.
